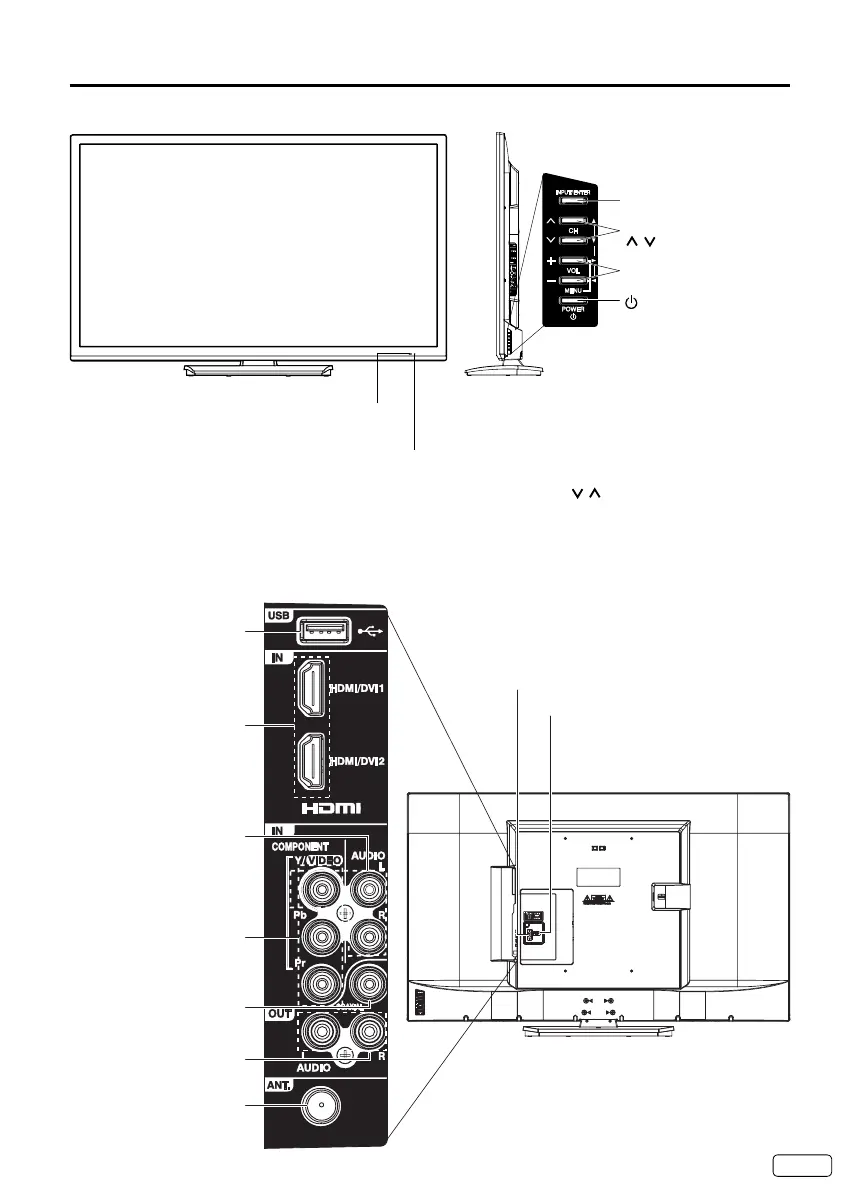

Parts and functions
Right SideFront
Remote sensor
Power Indicator
Red: Standby
Green: On
POWER button
INPUT/ENTER button
VOL (VOLUME)
+/–/
▶/◀ /MENU buttons
CH (CHANNEL)
/ /▲/▼ buttons
Press and hold both VOL (VOLUME) +/– at the
same time for 1 second to display the menu screen.
CH (CHANNEL)
/ buttons, VOL (VOLUME)
+/– buttons and INPUT/ENTER button can be used
to select the desired setting during the menu screen
operations.
AUDIO IN (L/R) jacks
COMPONENT IN
(Y(VIDEO)/Pb/Pr) jacks
COAXIAL OUT jack
ANT. (RF) IN jack
HDMI/DVI1/2 IN jacks
USB INPUT
Rear
PC MONITOR IN jack
Right Side
HDMI/DVI3 IN jack
AUDIO OUT (L/R) jacks
