JVC LVT0853-009B Service Manual

VS-DT9R/VS-DT6R
1-10
Tie band

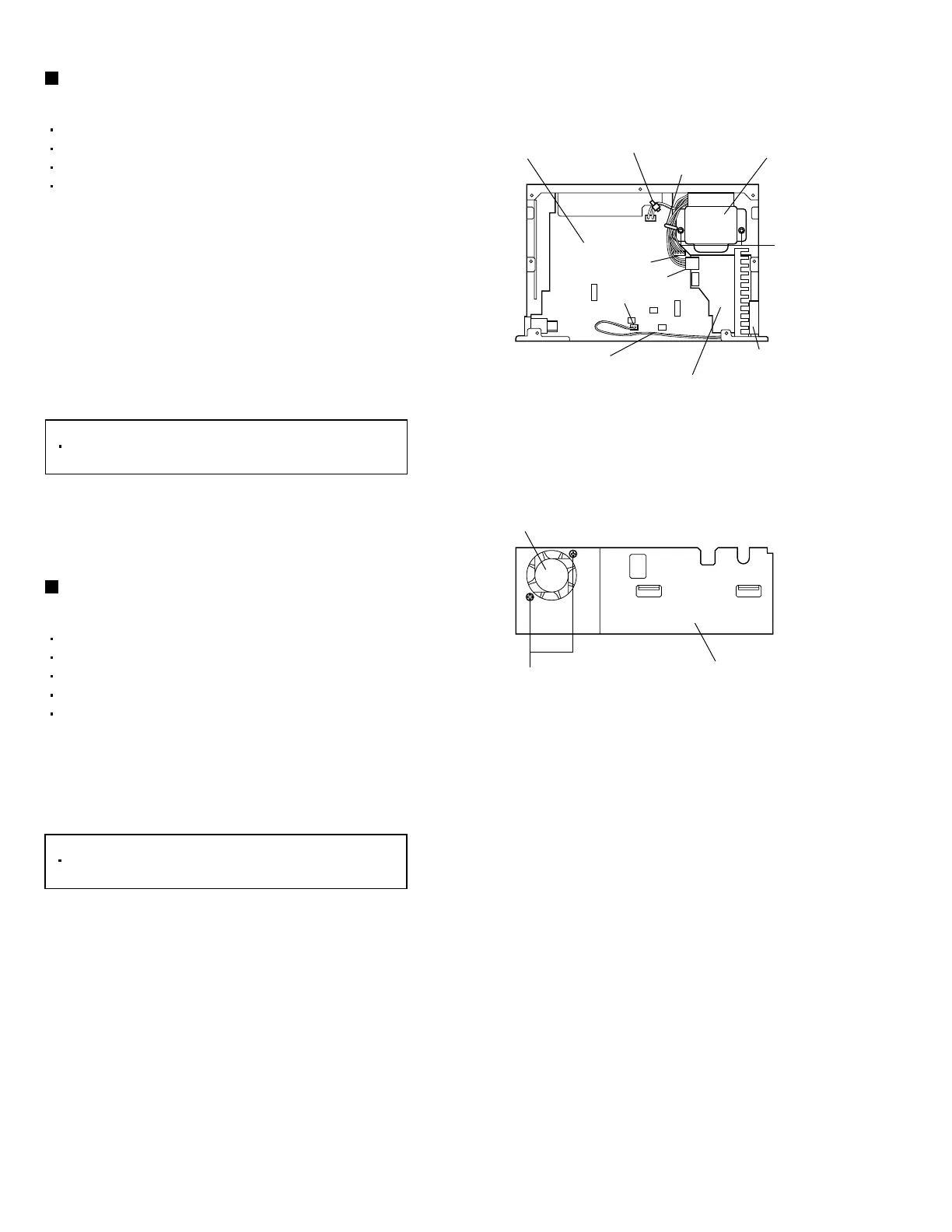

Fig.13
Fig.14
M
P
Fan motor
Bottom chassis
Wire clamp
Main board
Treat the wire from the fan motor.
Power amplifier
board
Power transformer
CN191
CN194
CN192
CN181
Fan motor
[Reference]
After connecting the wires, bundling them
using a wire clamp and tie band.
[Reference]
After mounting the fan motor, treat the wire
from the fan motor as shown in fig. 13.
Removing the power transformer
(See Fig. 13.)
1.
2.
3.
4.
Disengage the wire clamp and tie band bundling
the wires of the power transformer.
Disconnect the wire from connector CN192 on the
power amplifier board.
Disconnect the wires from connectors CN191 and
CN194 on the main board.
Remove the two screws P attaching the power
transformer.
Removing the fan motor
(See Figs. 13 and 14.)
1.
2.
Disconnect the wire from connector CN181 on the
main board.
From the right side of the main body, remove the
two screws M attaching the fan motor.
Remove the top lens. [VS-DT9R only]
Remove the bottom panel.
Remove the top panel.
Remove the CD mechanism assembly.
Remove the top lens. [VS-DT9R only]
Remove the bottom panel.
Remove the top panel.
Remove the CD mechanism assembly.
Remove the front panel assembly.
