MF-33L/ML

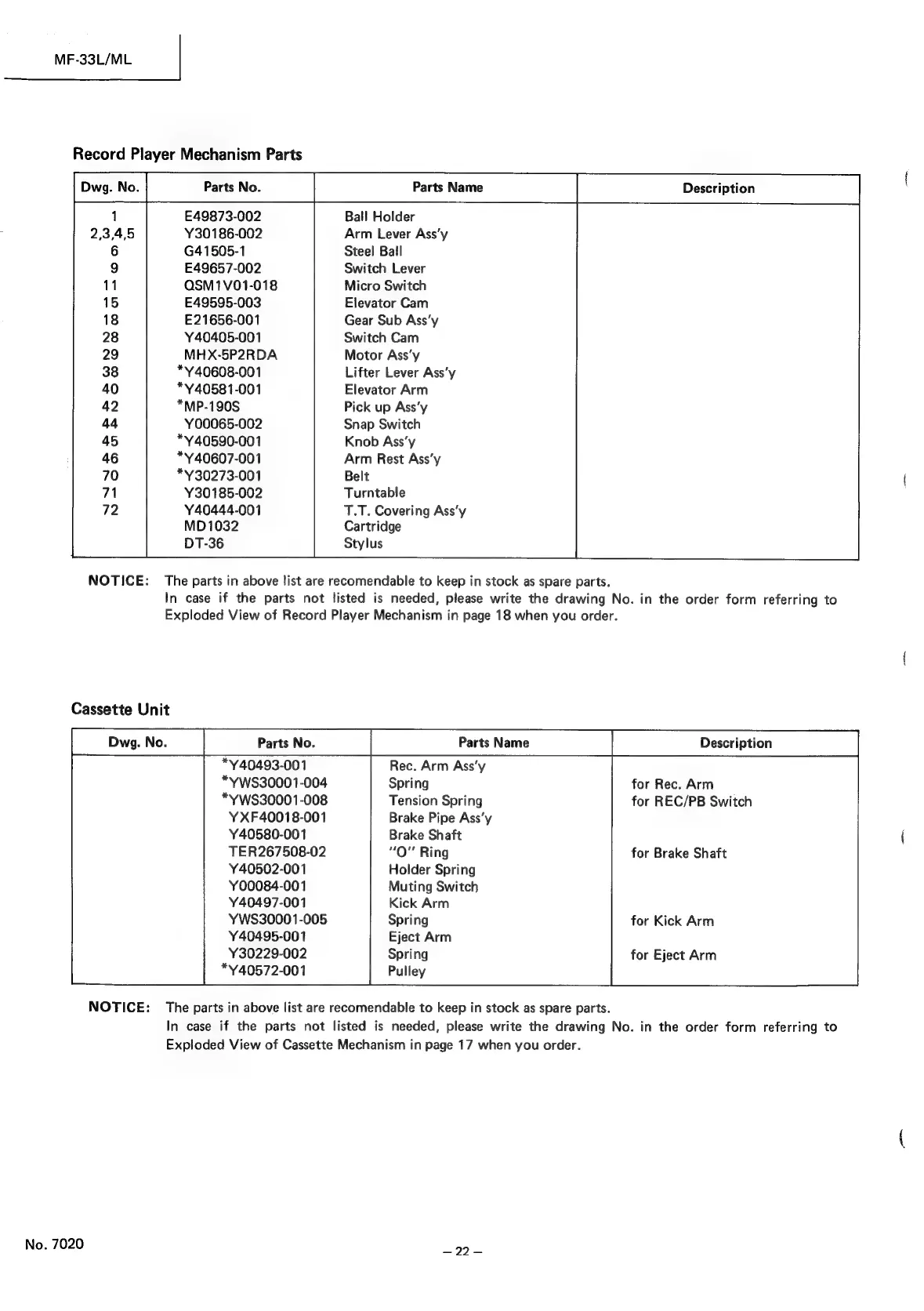

Record Player Mechanism Parts
eee [ towne [tame
E49873-002 Ball Holder
Y30186-002 Arm Lever Ass’y
G41505-1 Steel Ball
E49657-002 Switch Lever
QSM1V01-018 Micro Switch
E49595-003 Elevator Cam
E21656-001 Gear Sub Ass’y
Y40405-001 Switch Cam
MHX-5P2RDA Motor Ass‘y
*Y40608-001 Lifter Lever Ass’y
*Y¥40581-001 Elevator Arm
*MP-190S Pick up Ass’y
Y00065-002 Snap Switch
*Y40590-001 Knob Ass’y
*Y40607-001 Arm Rest Ass‘y
*¥30273-001 Belt
Y30185-002 Turntable
Y¥40444-001 T.T. Covering Ass’y
MD1032 Cartridge
DT-36 Stylus
NOTICE: The parts in above list are recomendable to keep in stock as spare parts.
In case if the parts not listed is needed, please write the drawing No. in the order form referring to
Exploded View of Record Player Mechanism in page 18 when you order.
Cassette Unit
Rec. Arm Ass’y
Spring
Tension Spring
Parts No.
*Y40493-001
*YWS30001-004
*YWS30001-008
for Rec. Arm
for REC/PB Switch
YXF40018-001 Brake Pipe Ass’y
Y40580-001 Brake Shaft
TER267508-02 “O" Ring for Brake Shaft
Y40502-001 Holder Spring
Y00084-001 Muting Switch
Y40497-001 Kick Arm
YWS30001-005 Spring for Kick Arm
Y40495-001 Eject Arm
Y30229-002 Spring for Eject Arm
*Y40572-001 Pulley
NOTICE: The parts in above list are recomendable to keep in stock as spare parts.
In case if the parts not listed is needed, please write the drawing No. in the order form referring to
Exploded View of Cassette Mechanism in page 17 when you order.
No. 7020 tee
