Front Panel
1 Disc trays
2 STANDBY/ON
button and STANDBY lamp
(9, 28, 29)
3 Remote sensor
4 PRESET +/– NEXT/PREV control
4 / ¢ (reverse search/forward search) (9, 11 – 12,
14 – 16, 24, 27 – 29)
5 Display window
6 TAPE 2 3 button and lamp (9, 21 – 23)
Pressing this button also turns on the unit.
7 CD 3¥8 SELECT (play/pause) button and lamp (9, 14 –
19, 24, 26)
Pressing this button also turns on the unit.
8 FM/AM button and lamp (9, 12)
Pressing this button also turns on the unit.
9 AUX button and lamp (9)
Pressing this button also turns on the unit.
p CD play mode buttons
• REPEAT button (15, 16)
• PROGRAM button (15)
• RANDOM button (16)
q CLOCK/TIMER button (9, 27 – 30)
w VCD NUMBER +/– button (18)
e PHONES jack (10)
r PBC button (18, 19)
t
RETURN button (18)
y CD REC START button (23 – 24)
u EDIT button (24)
i Deck A cassette holder (21)
o 0 EJECT button for deck A (21)
; Disc number buttons and lamps (CD1, CD2, and CD3)
(14 – 15, 17, 19, 20, 23)
Pressing one of these buttons also turns on the unit.
a SET/DISPLAY button (9, 11 – 12, 15, 24, 27 – 30)
s 0 (Disc tray open/close) (CD1, CD2, and CD3) buttons
(13 – 14, 16 – 17)
Pressing one of these buttons also turns on the unit.
Continued
Display Window
d CANCEL/DEMO button (8, 9, 15, 24, 27 – 30)
f SOUND MODE control (10)
g SUBWOOFER LEVEL + / – control (10)
h TUNING + / – buttons (12)
1 / ¡ (fast left/fast right) buttons (11, 14, 21)
j VOLUME + / – control (10, 25, 26)
k 7 (stop) button (9, 14 – 24, 26, 29)
l Tape operation buttons
• TAPE A/B button (21)
• REVERSE MODE button (21, 23 – 24)
• REC START/STOP button (22 – 24, 26, 29)
/ MIC LEVEL control (25 – 26)
z MIC 1 and MIC 2 jacks (25)
x DUBBING button (23)
c Deck B cassette holder (22)
v EJECT 0 button for deck B (21, 22)

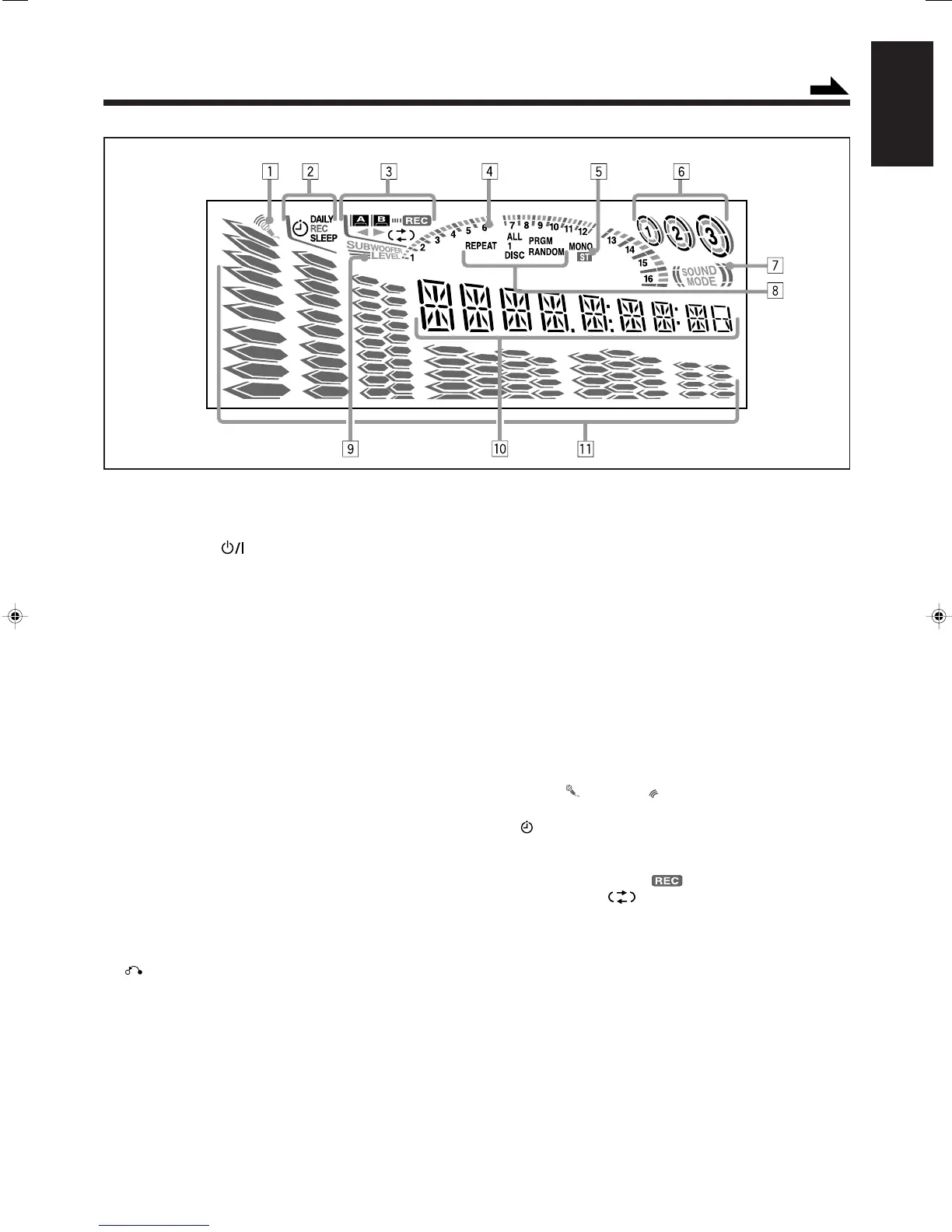

Display Window
1 Karaoke ( ) and echo ( ) indicators
2 Timer indicators
•
(Timer), DAILY (Daily Timer), REC (Recording
Timer), and SLEEP (Sleep Timer) indicators
3 Tape operation indicators
• A/B (operating deck), (recording), 2 3 (tape
direction), and
(reverse mode) indicators
4 CD track number (1 – 16) indicators
5 Tuner operation indicators
• MONO and ST (stereo) indicators
6 Disc indicators
7 SOUND MODE indicator
8 CD play mode indicators
• REPEAT (ALL/1/DISC), PRGM (program), and
RANDOM indicators
9 SUBWOOFER LEVEL indicator
p Main display
• Shows the source name, frequency, etc.
q Audio level indicator
