JVC MX-G880V - Speaker assembly and parts list

MX-G950V/MX-G880V
MX-G850V/MX-G750V
4-6

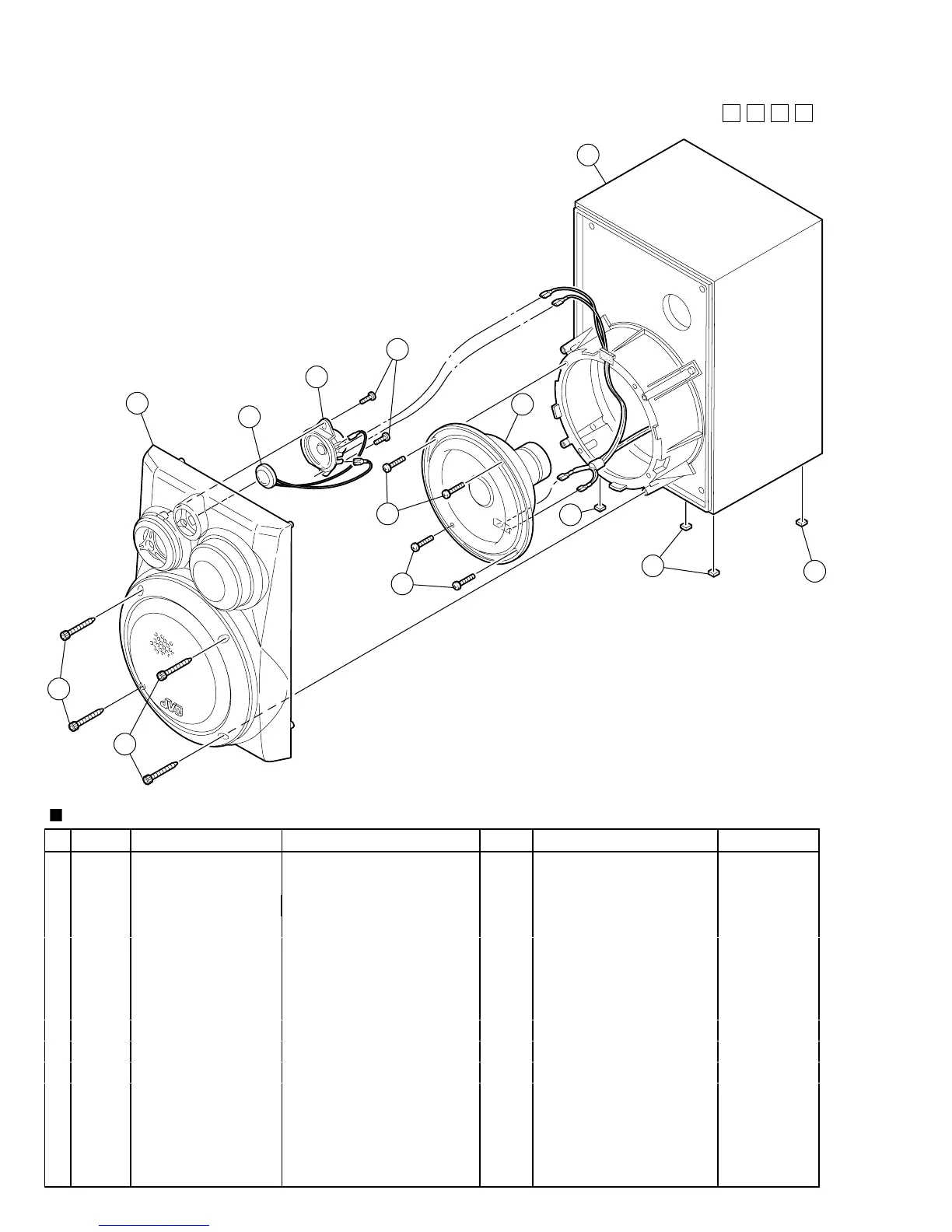

Speaker assembly and parts list
Block No.
M
M
M
7
SP-XG880V
SP-XG850V
Item
Parts number Parts name Area
A
Parts list (Speaker assembly) SP-XG880V/XG850V
Q'ty
Description
Block No. M7MM
A MXG880K-SPBOX-R
SP BOX ASSY(R)
1
SP-XG880V
MXG880K-SPBOX-L
SP BOX ASSY(L)
1
SP-XG880V
MXG850K-SPBOX-R
SP BOX ASSY(R)
1
SP-XG850V
1 199733350159
FRONT PANEL(R)
1
SP-XG880V
199733350151
FRONT PANEL(R)
1
SP-XG850V
199733350152
FRONT PANEL(L)
1
SP-XG850V
199733350158
FRONT PANEL(L)
1
SP-XG880V
2 135604161053
SCREW
8
3 991061650050
16CM WOOFER
2
4 135604161047
SCREW
8
5 993060500031
5CM TWEETER
2
6 135604081045
SCREW
4
7 134720201090
PIEZO ASSY
2
8 147780071049
LEG CUSHION
8
9 ---------------
CABINET ASSY
2
MXG850K-SPBOX-L
SP BOX ASSY(L)
1
SP-XG850V
7
1
4
4
8
8
8
3
9
2
2
5
6
