MX-GA3V
1-27

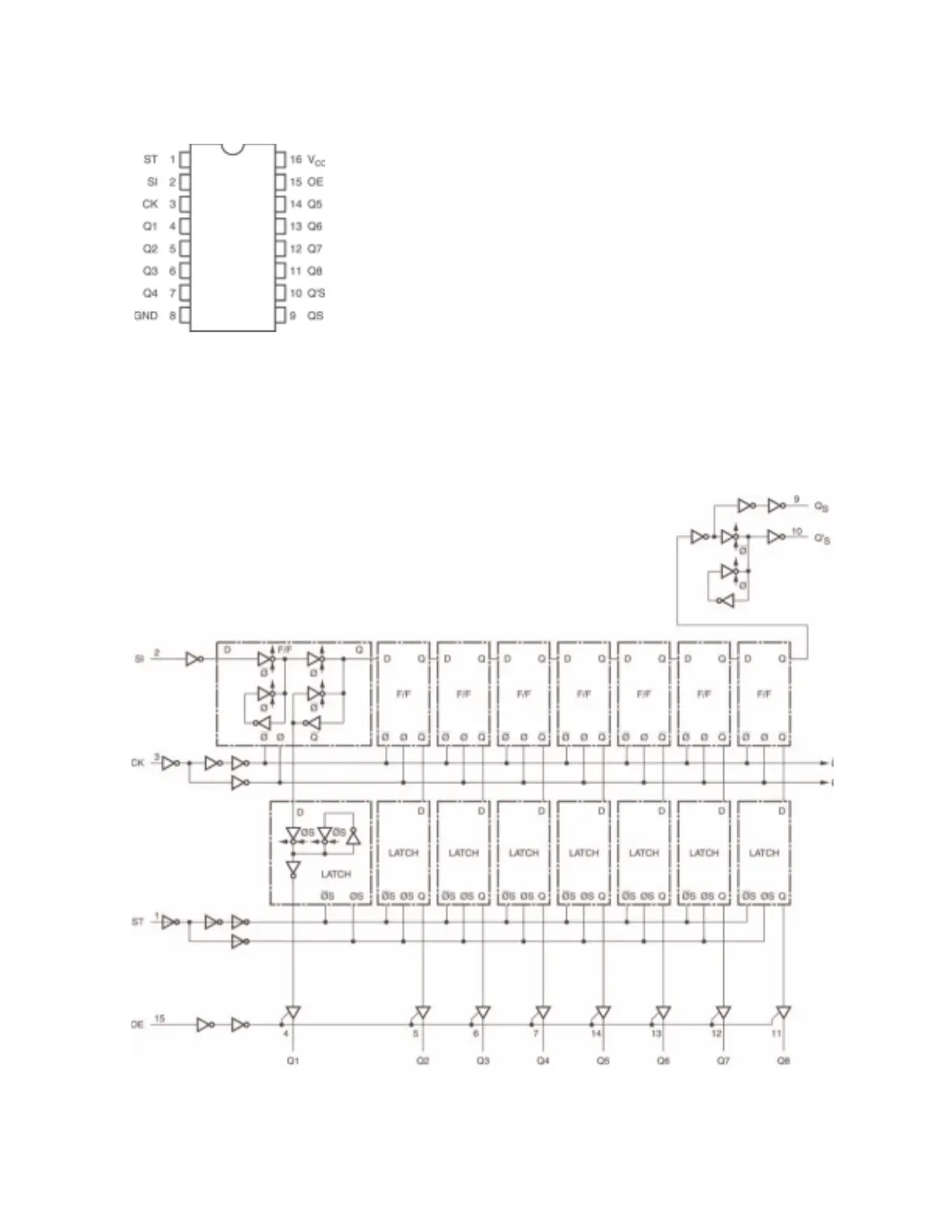

1. Terminal layout
TC74HC4094AP (IC402): 8-bit shift and store resister
2. Block diagram
