3.1.8 Removing the tuner
(See Figs.24 and 25)
• Prior to performing the following procedures, remove the top
cabinet.
(1) From the back side of the main body, remove the two
screws S attaching the tuner. (See Fig.24.)
(2) From the left side of the main body, take out the tuner.
(3) From the forward side of the tuner, disconnect the card wire
from the connector CON01
. (See Fig.25.)

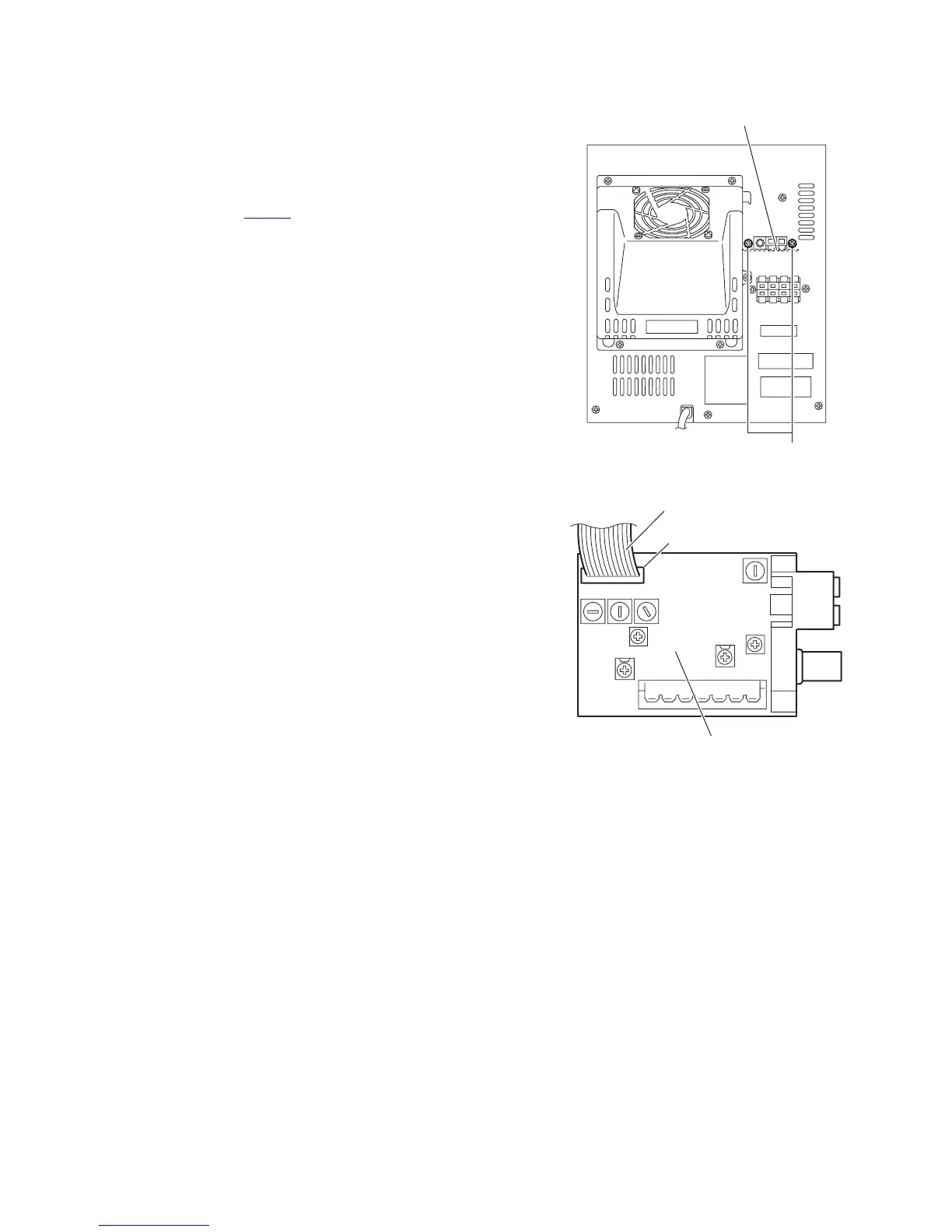

Fig.24
Fig.25
S
Tuner
CON01
Card wire
Tuner
