JVC MX-GB6

(No.MB160)1-21

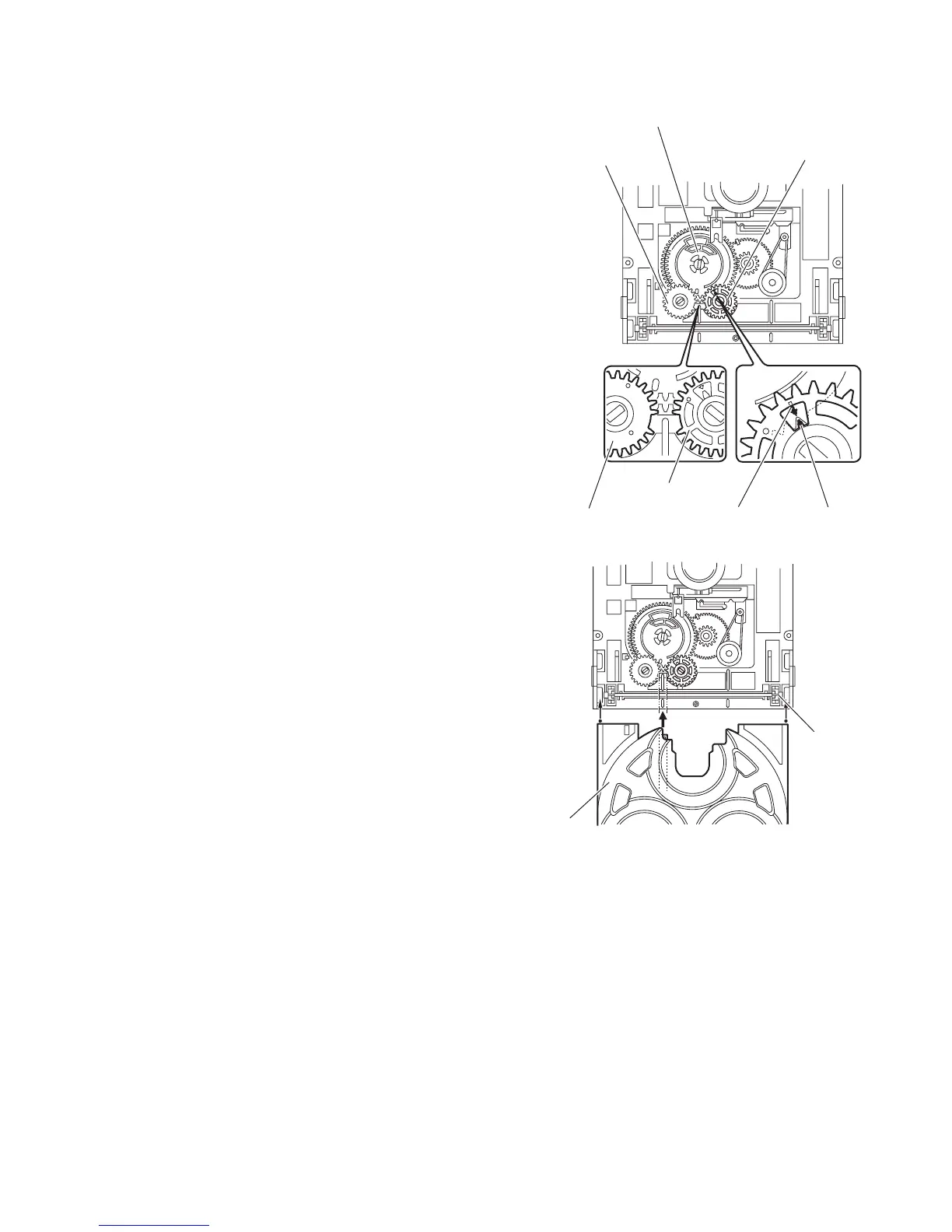

3.2.2 Reinstall the tray disc
(See Figs.3 and 4)
(1) Align the gear cam with the gear tray and then mount the
tray disc. (See Fig.3.)
(2) When assembling the tray disc, take extreme care not en-
gage with gear synchro. (See Fig.4.)
Fig.3
Fig.4
Gear convertor
Gear convertor
Gear tray
Gear tray
Gear tray
Gear cam
Gear cam
timing point
Gear synchro
Tray disc
