(No.MB160)1-27
3.4.4 Removing the motor
(See Figs.4 to 6)
(1) Slide the plastic cover in the direction of the arrow and re-
move the three claws a to remove the plastic cover.
(2) Remove the two screws D fixing the motor.
Note:
Be careful to grease's splash when the drive belt comes
off.
(3) Unsolder the motor terminal.
3.4.5 Removing the mechanism board
(See Fig.5)
(1) Unsolder the four solder parts b and four solder parts c.
(2) Remove the two screws E attaching the mechanism board.

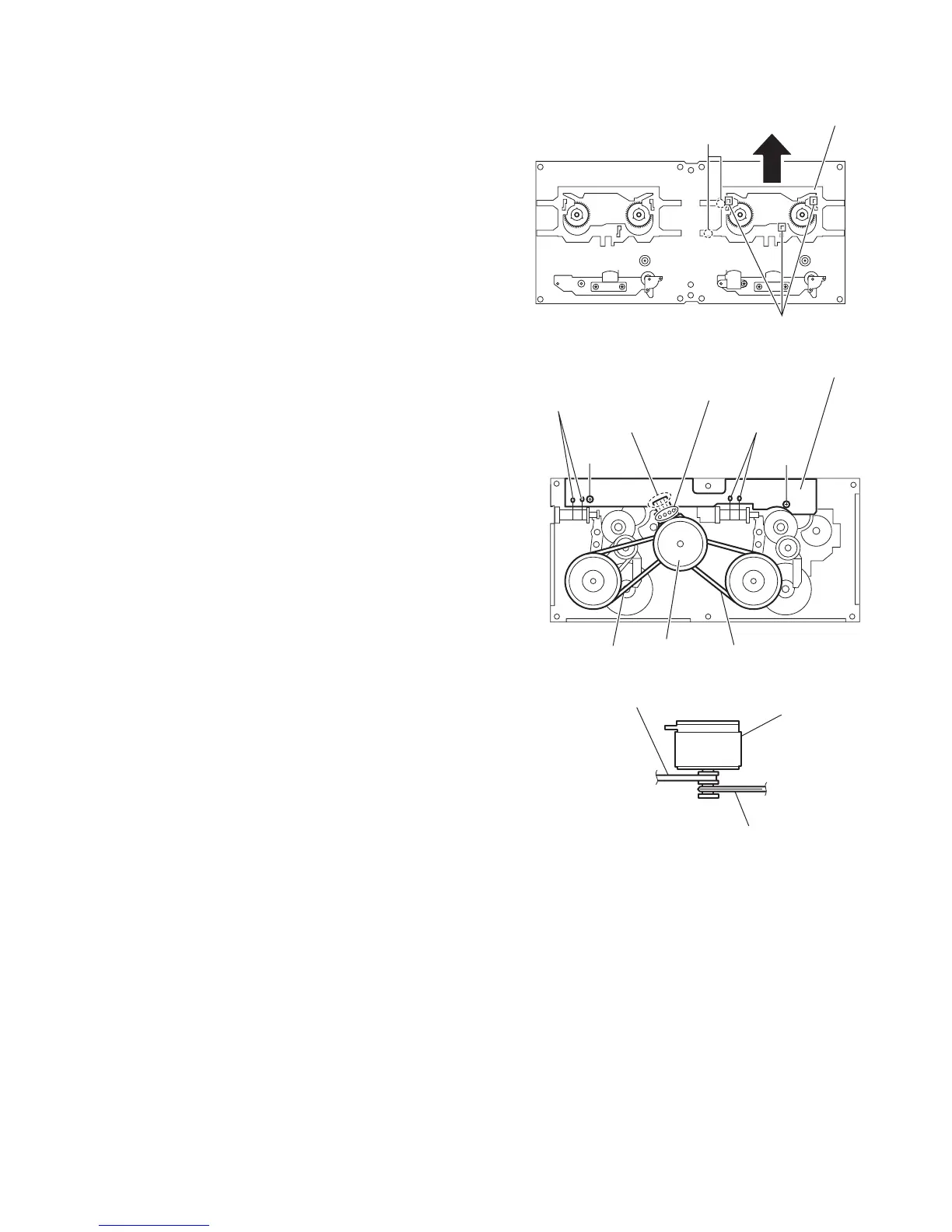

Fig.4
Fig.5
Fig.6
Plastic cove
Claws a
D
Motor terminal
Motor
Drive beltDrive belt
Mechanism board
Solder parts b
Solder parts c
Solder parts c
E
E
Drive belt
Drive belt
Moto
