JVC MX-GB6

(No.MB160)1-29
3.5 Speaker section [MX-GB5]

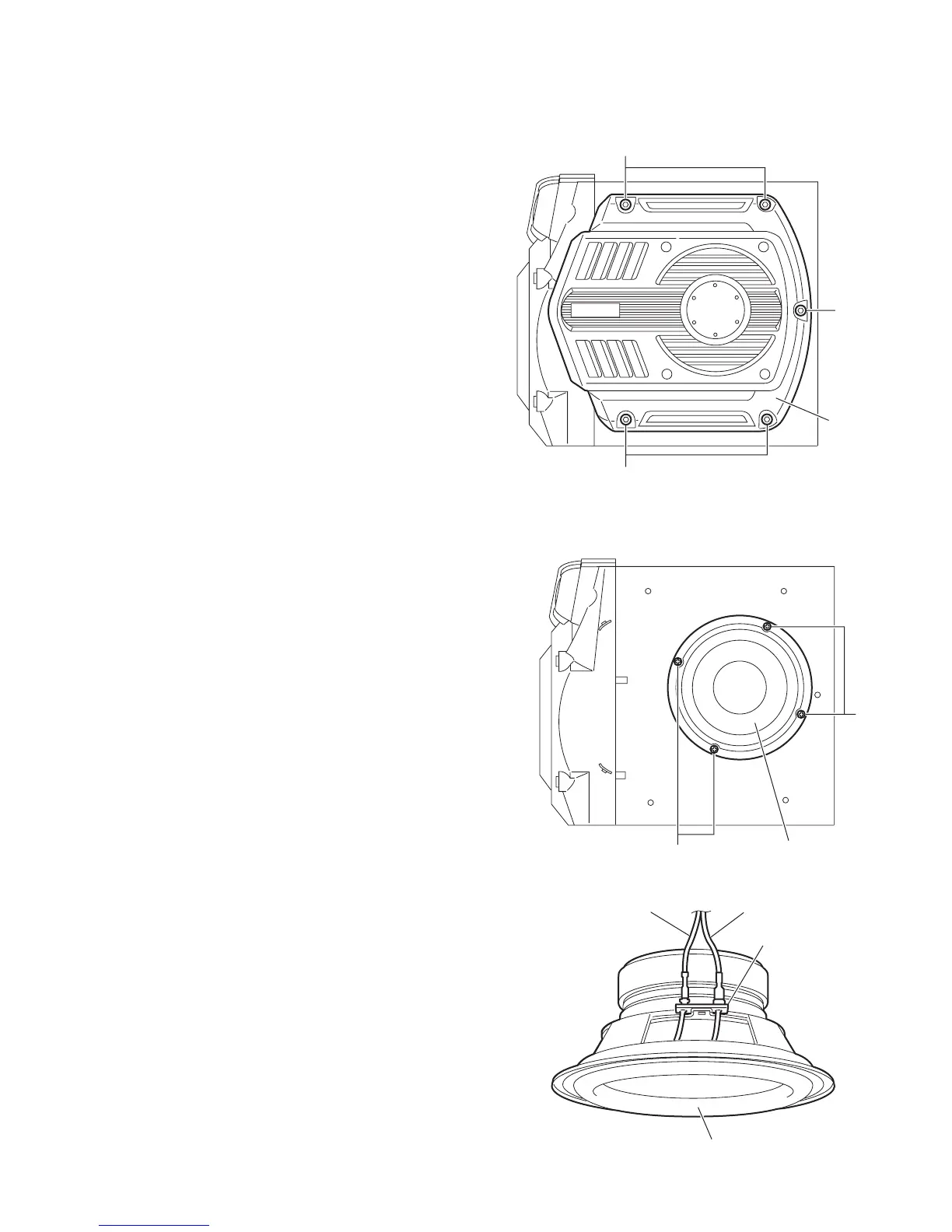

3.5.1 Removing the side panel
(See Fig.1)
Remove the five screws A attaching the side panel and remove
the side panel.
Fig.1
3.5.2 Removing the sub woofer
(See Figs.2 and 3)
• Prior to performing the following procedures, remove the side
panel.
(1) Remove the four screws B attaching the sub woofer. (See
Fig.2.)
(2) Take out the sub woofer from the speaker main body and
disconnect the wires (red and red/black) from the speaker
terminal. (See Fig.3.)
Fig.2
Fig.3
Side panel
A
A
A
B
B
Sub woofer
Red/Black wire
Red wire
Speaker terminal
Sub woofer
