MX-GT80/MXGT90
1-9
Prior to performing the following procedure, remove
the metal cover and the CD changer mechanism
assembly.
Disconnect the card wire from connector CN1 on the
antenna board on the right side of the body.
Remove the plastic rivet fixing the antenna board.
Remove the two screws F on the back of the body.
1.
2.
3.

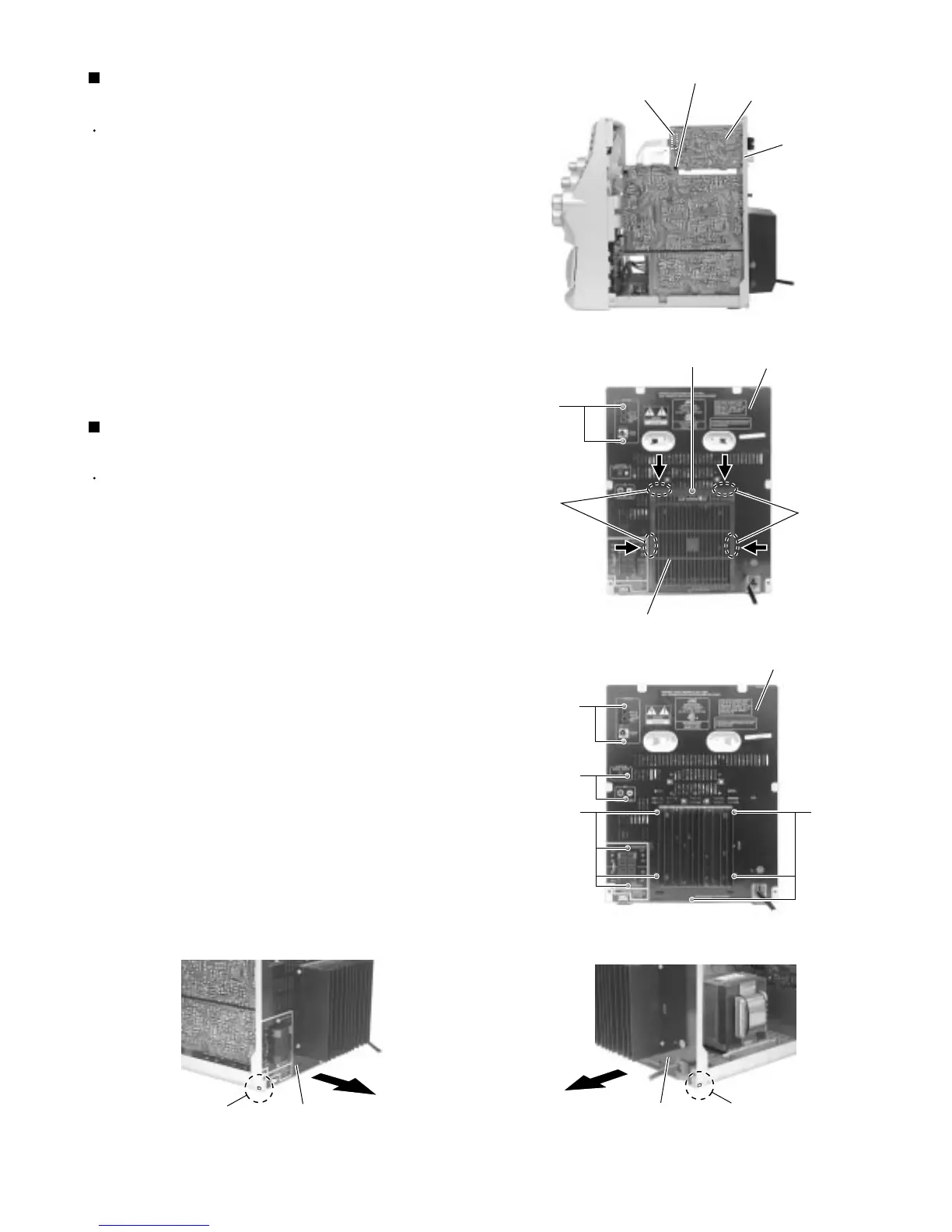

Removing the tuner board
(See Fig.11 and 12)
Prior to performing the following procedure, remove
the metal cover and the CD changer mechanism
assembly.
Remove the screw G attaching the rear cover on the
back of the body.
Push each tab of the four joints b in the direction of
the arrow and release.
Remove the eleven screws F attaching the rear
panel.
Release the joints c on each lower side of the rear
panel using a screwdriver and remove the rear panel
backward.
1.
2.
3.
4.
Removing the rear cover / rear panel
(See Fig.12 to 15)
Note : Remove the tuner board in case of necessity.
(Refer to Fig.21)
Fig.11
Fig.12
Fig.13
Fig.14
Fig.15
CN1
Plastic rivet
Tuner board
Rear panel
Rear panel
G
F
Joint b
Joint b
Rear cover
Rear panel
F
F
F
F
Joint c
Joint c
Rear panel
Rear panel
To Next Page
