– 7 –
English
SPEAKERS
IMPEDANCE 6-16 OHMS.
+
+
–
–
R
L

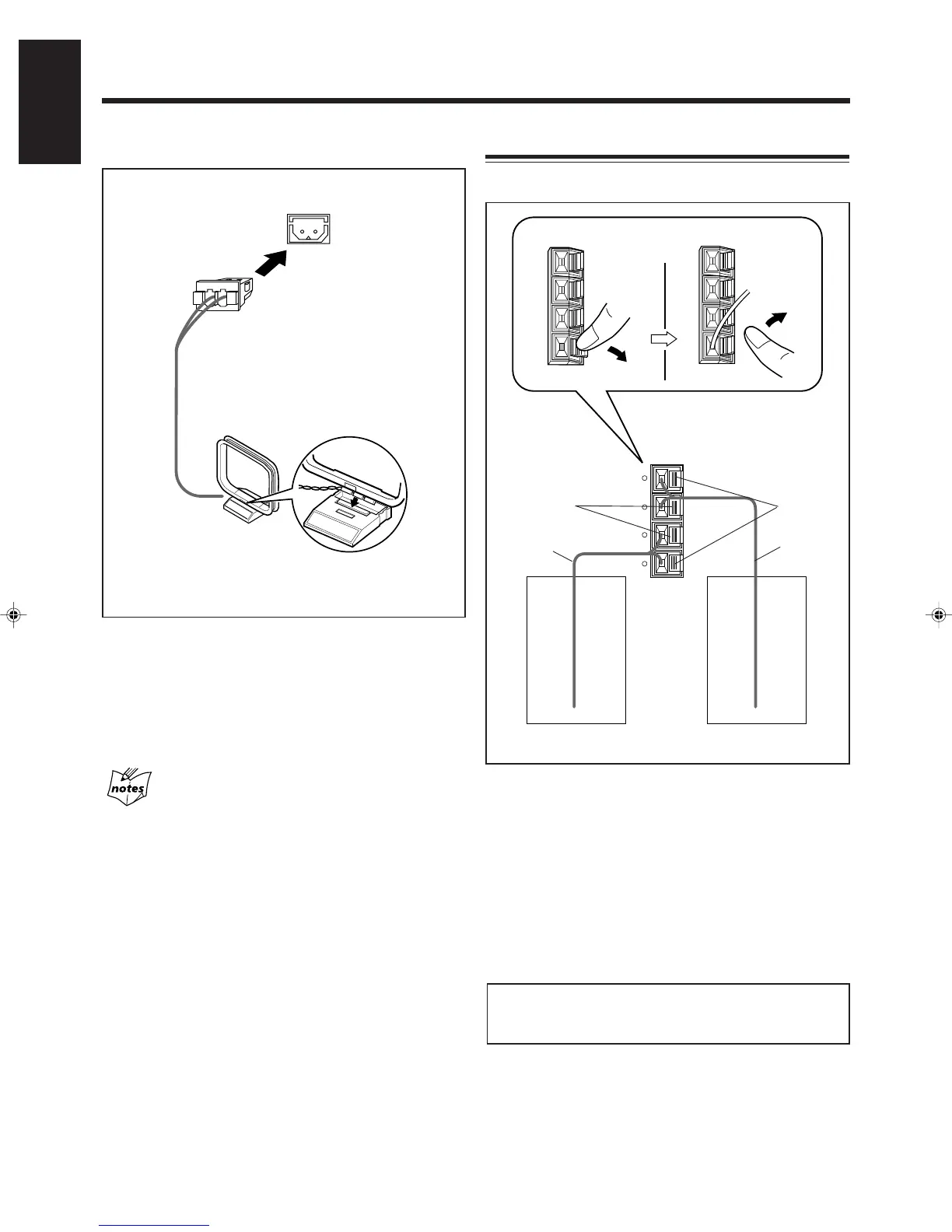

1 Connect the AM loop antenna to the AM
ANT terminal as illustrated.
2 Turn the AM loop antenna until you have the
best reception.
For better reception of both FM and AM
• Make sure the antenna conductors do not touch any other
terminals and connecting cords.
• Keep the antennas away from metallic parts of the unit,
connecting cords, and the AC power cord.
AM antenna
AM loop antenna
(supplied)
Connecting Speakers
You can connect a pair of the front speakers.
Right
speaker
Left
speaker
1 Press and hold the clamp of the speaker
terminal on the rear of the unit.
2 Insert the end of the speaker cord into the
terminal.
Match the polarity of the speaker terminals: Red (+) to
red (+) and black (–) to black (–).
3 Release the finger from the clamp.
IMPORTANT: Use only speakers with the same speaker
impedance as indicated by the speaker terminals on the
rear of the unit.
1
2, 3
Red
Black
Speaker
cord
Speaker
cord
AM
ANT
EN01-11.MX-J100[U,US]/f 00.5.8, 11:57 AM7
