MX-J270V
1-16
Removing the actuator motor board
(See Fig.14, 15)
1.
2.
3.
Absorb the four soldered positions "q" of the right and
left motors with a soldering absorber(See Fig.14).
Remove the two screws G retaining the actuator motor
board(See Fig.14).
Remove the two screws H retaining the tray select
switch board(See Fig.15).
Removing the cam unit
(See Fig.15 to 18 )
1.
2.
3.
4.
5.
Remove the CD mechanism assembly.
While turning the cam gear r, align the pawl "s" position
of the drive unit to the notch position(Fig.15) on the cam
gear r.
Pull out the drive unit and cylinder gear(See Fig.17).
While turning the cam gear r, align the pawl "t" position
of the select lever to the notch position(Fig.18) on the
cam gear r.
Remove the four screws I retaining the cam unit(cam
gear r and cams R1/R2 assembly)(See Fig.18).

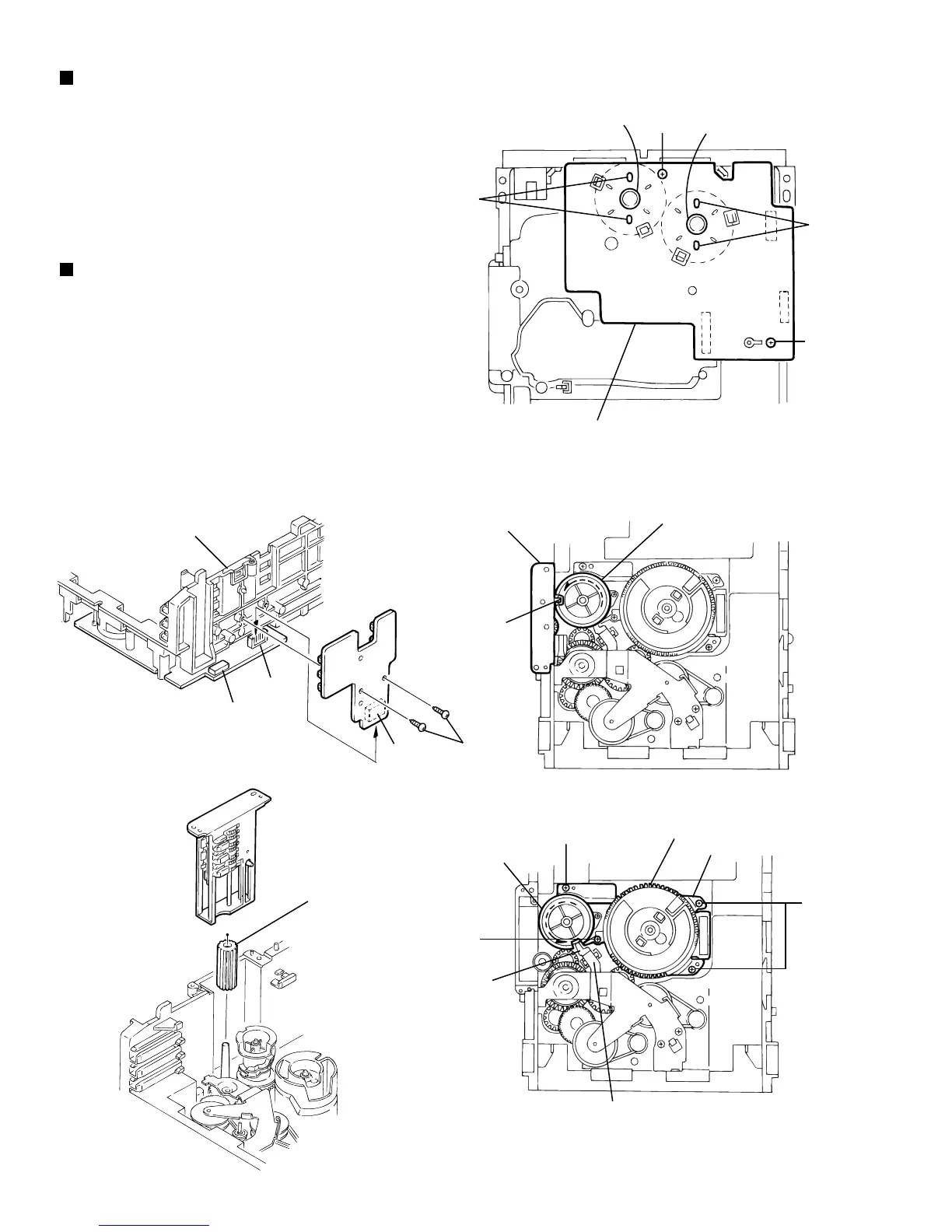

Fig.14
Fig.16
Fig.15
Fig.18
Fig.17
G
Motor L
Motor R
q
q
G
Actuator motor board
Cam gear r
Drive unit
s
Chassis assembly
Tray select
switch board
CN802
CN801
CN804
H
I
I
I
Select lever
Cams R1, R2 assembly
Cam unit
Cam gear L
Cylinder gear
Drive unit
t
