JVC MX-J270V Service Manual

MX-J270V
1-5
Remove the six screws A attaching the metal cover
on the back of the body.
Remove the two screws B on both sides of the body.
Remove the metal cover from the body while lifting
up the rear part of the metal cover.
1.
2.
3.
<Main body>

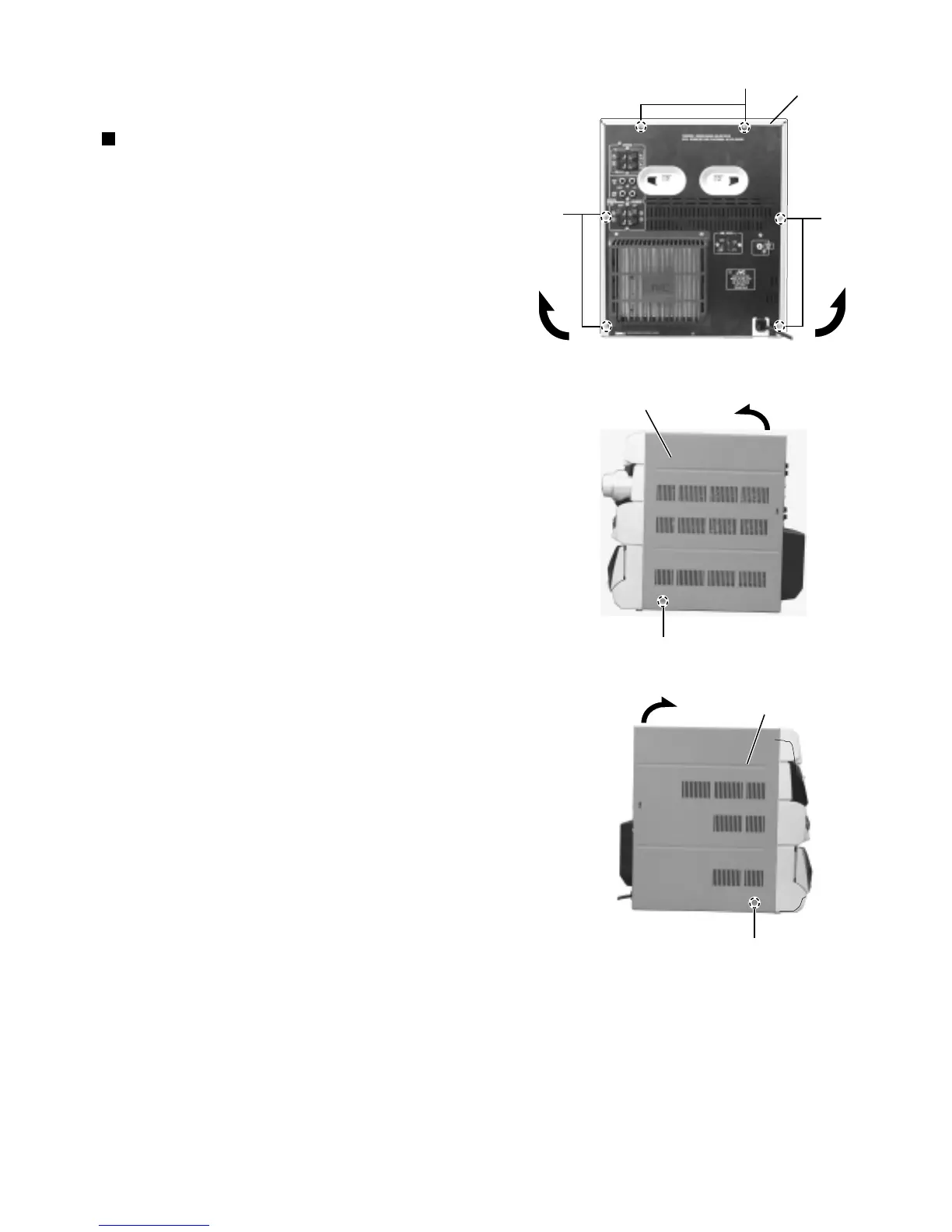

Removing the metal cover
(See Fig.1 to 3)
Disassembly method
Fig.3
Fig.2
Fig.1
Metal cover
A
A
A
Metal cover
B
Metal cover
B
