Prior to performing the following procedures, remove
the metal cover and the CD changer mechanism
assembly.
Disconnect the card wires from connector CN301,
CN304, CN305 and the harness from CN302 on the
inside of the main board.
Turn over the body and remove the two screws E.
Release the joint b on the bottom of the body and
the joints c and d on both sides of the body using a
screwdriver, and detach the front panel assembly
toward the front.
1.
2.
3.

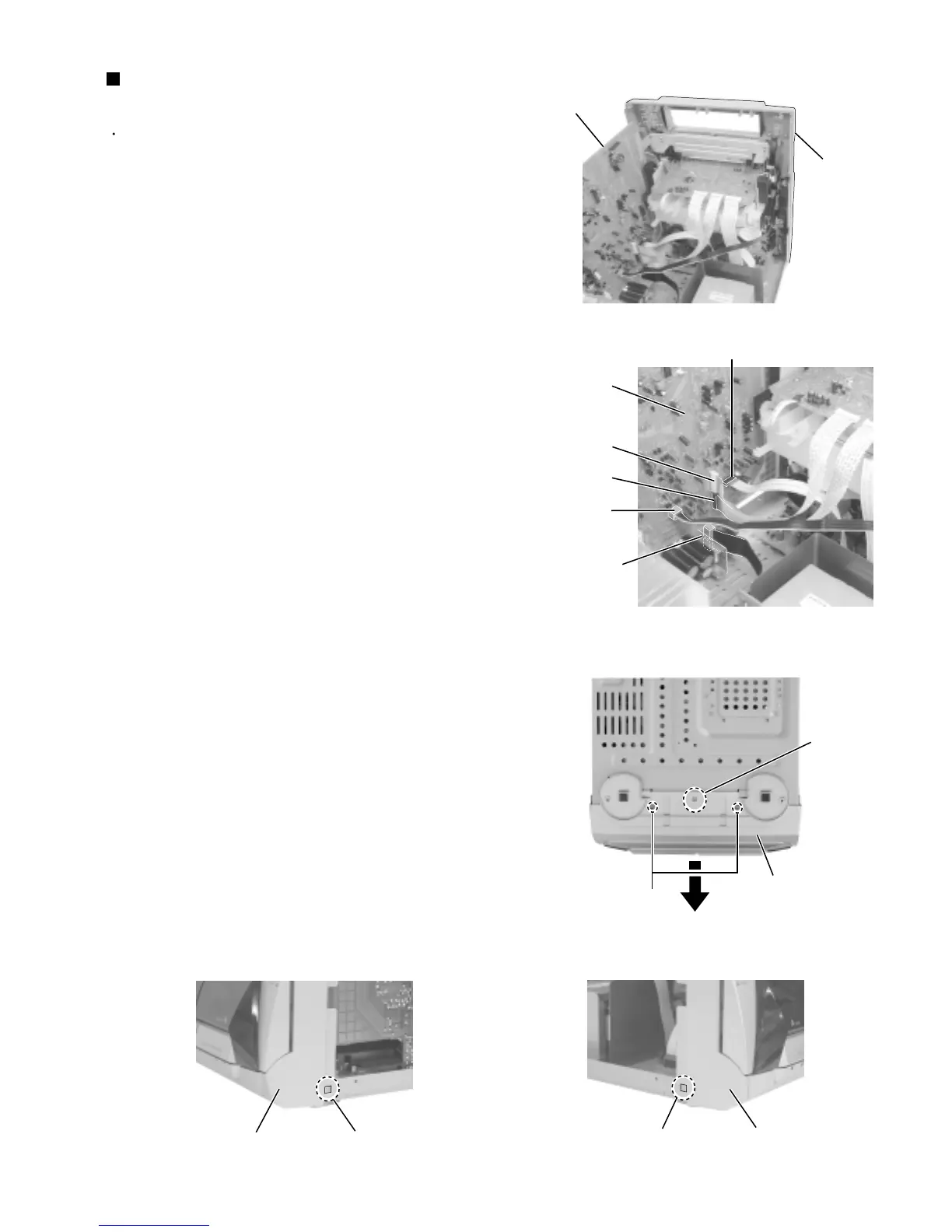

Removing the front panel assembly
(See Fig.8 to 12)
Fig.10
Fig.9
Fig.8
Fig.11
Fig.12
Main board
Front panel
assembly
Main board
CN301
CN304
CN305
CN302
CN901A,CN901B
E
Front panel
assembly
Joint b
Front panel
assembly
Joint c
Front panel
assembly
Joint d
(Bottom)
To Next Page
