6

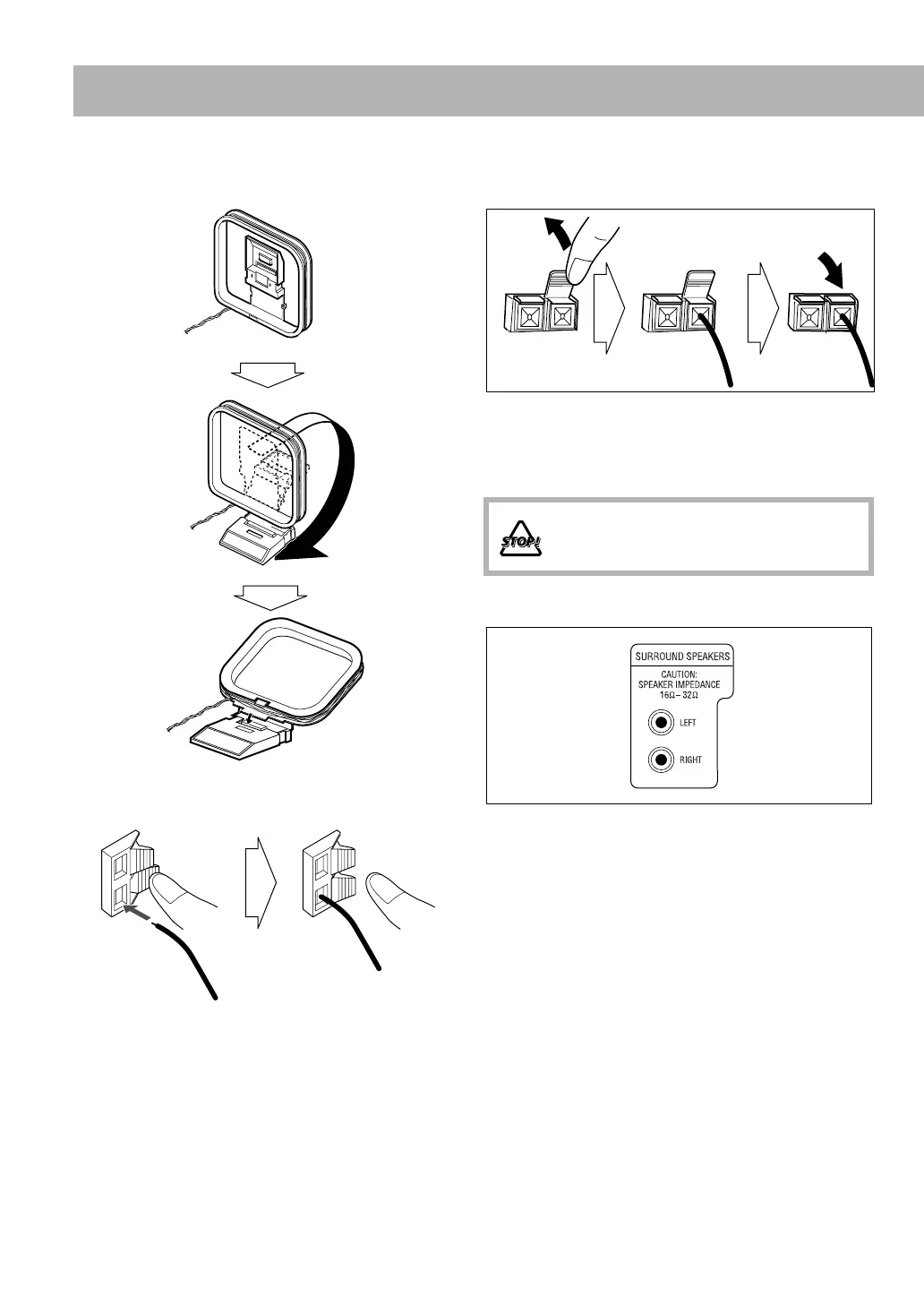

To assemble and connect the AM loop antenna
To assemble the AM loop antenna
To connect the AM loop antenna and speaker cords
• If the AM loop antenna wire or speaker cords are covered
with vinyl, remove the vinyl to expose the tip of the
antenna by twisting the vinyl.
• Make sure the antenna conductors do not touch any other
terminals, connecting cords and power cord. Also, keep the
antennas away from metallic parts of the System,
connecting cords, and the AC power cord. This could cause
poor reception.
To connect the speaker cords
Make sure the both speakers are connected correctly and
firmly.
• When connecting the speaker cords, match the polarity of
the speaker terminals: (+) to (+) and (–) to (–).
• Use only speakers with the same speaker impedance as
indicated by the speaker terminals on the rear of the unit.
To connect surround speakers
• Connect the right rear speaker to the RIGHT jack.
• Connect the left rear speaker to the LEFT jack.
• Use only speakers with the same speaker impedance as
indicated by the speaker terminals on the rear of the unit.
1 Hold
2 Insert
3 Release
When connecting speakers
DO NOT connect more than one speaker to
each terminal.
1 Open 2 Insert 3 Close
MX-JD3.book Page 6 Monday, March 1, 2004 3:51 PM
