MX-K1
3-5

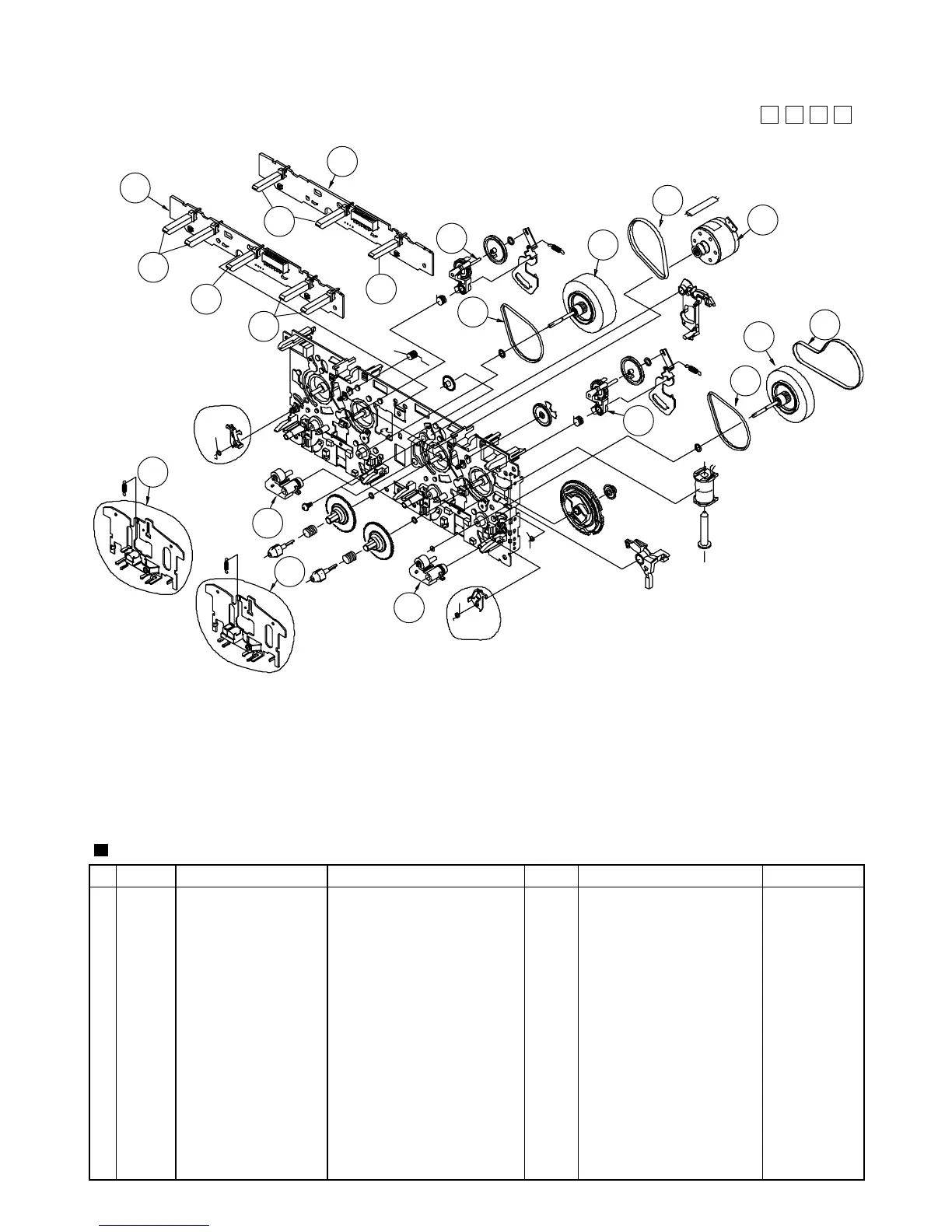

Cassette mechanism assembly and parts list
Block No.
M
M
M
2
12
1
8
8
L SIDE
R SIDE
5
5
11
10
9
9
7
6
2
3A
3B
4
4
4
4
4
CMAT6Z216A
CMAT6Z219A
Note: Parts listed on the Parts List below can be supplied.
However, parts that are not listed below cannot be supplied
individually but only by purchasing the whole Cassette
Mechanism Assembly Unit. (When ordering, use the Parts No.
CMAT6Z216A or CMAT6Z219A for
Cassette Mechanism Assembly Unit.)
L SIDE
TYPE
R SIDE
TYPE
Item Parts number Parts name Area
A
Parts list (Cassette mechanism)
Q'ty Description
Block No. M2MM
1 F513-858 PLATE HD BLK 1
2 F525-338 MTR MAIN BLK 1
3A --------------- PCB CONTROL BLK 1 CMAT6Z216A
3B --------------- PCB CONTROL BLK 1 CMAT6Z219A
4 UE20P-12 LEAF SWITCH 5 CMAT6Z216A
UE20P-12 LEAF SWITCH 3 CMAT6Z219A
5 F522-063 CLUTCH ASSY BLK 2
6 FF19U-12 MAIN BELT 1
7 FR25P-11 ASSY F/W 1
8 F514-135 ROLLER PINCH BLK R 2
9 FF19S-31 F/R BELT MO 2
10 FF19N-11 MAIN BELT 1
11 FR25R-11 ASSY F/W 1
12 F513-855 PLATE HD BLK 1
To Next Page
