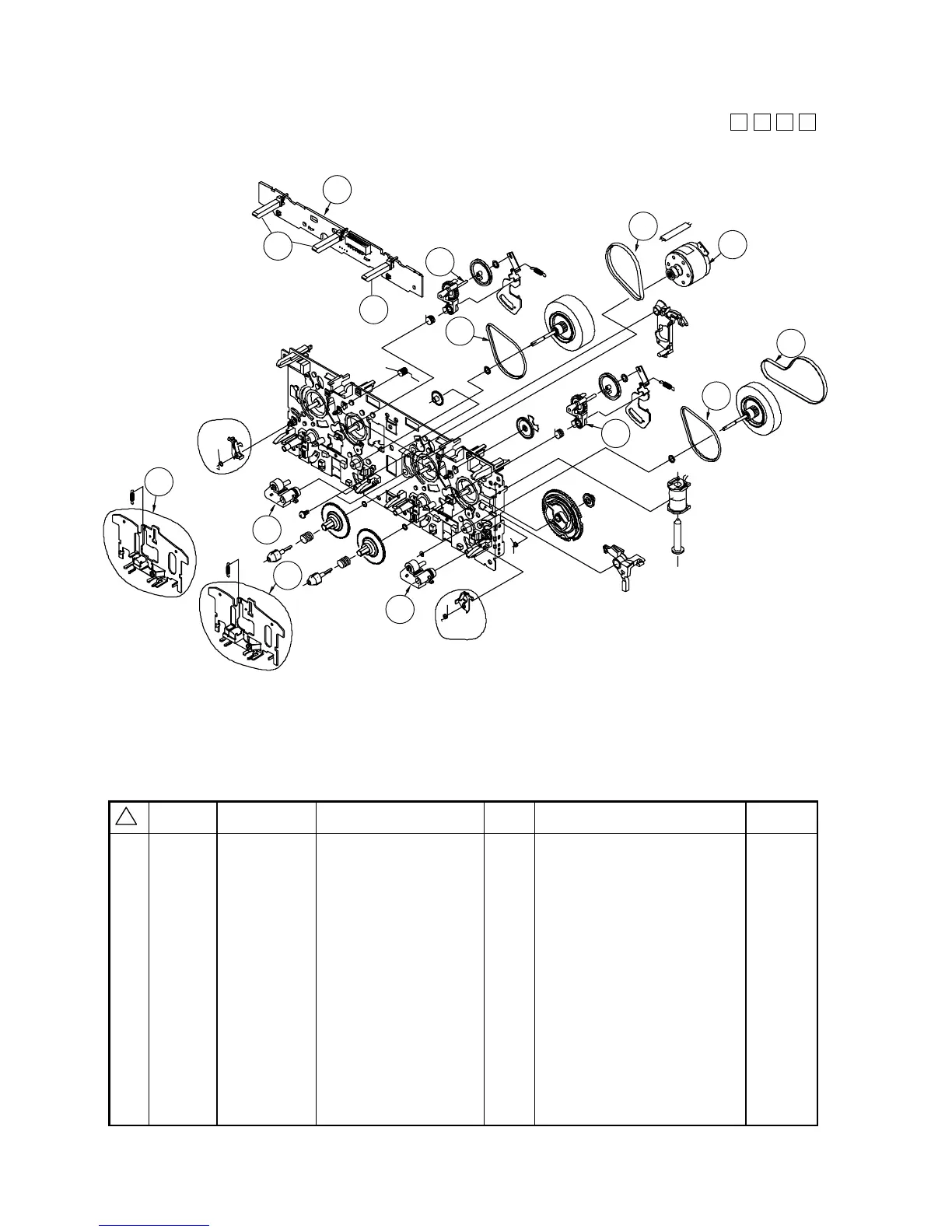

Cassette mechanism assembly and parts list
Block No.
M
M
M
P
10
1
7
7
L SIDE
R SIDE
5
5
9
8
8
6
2
3
4
4
CMAT6Z219A
Note: Parts listed on the Parts List below can be supplied.
However, parts that are not listed below cannot be supplied
individually but only by purchasing the whole Cassette
Mechanism Assembly Unit. (When ordering, use the Parts No.
CMAT6Z219A for Cassette Mechanism Assembly Unit.)
L SIDE
TYPE
R SIDE
TYPE
Parts List (Cassette mechanism)
Block No. MPMM
Item Parts number Parts name Q'ty Description Area
1 BIF513-858 PLATE HD BLK 1
2
BIF525-346 MTR MAIN BLK 1
3 BIF567-843 PCB CONTROL BLK 1
4 BIUE20P-12 LEAF SWITCH 3
5 BIF522-063 CLUTCH ASSY BLK 2
6 BIFF19N-31 MAIN BELT 1
7 BIF514-35 ROLLER PINCH BLK R 2
8 BIFF19S-31 F/R BELT MO 2
9 BIFF19N-22 MAIN BELT 1
10 BIF513-855 PLATE HD BLK 1
!
3-10
