3.2.6 Removing the cassette deck mechanism

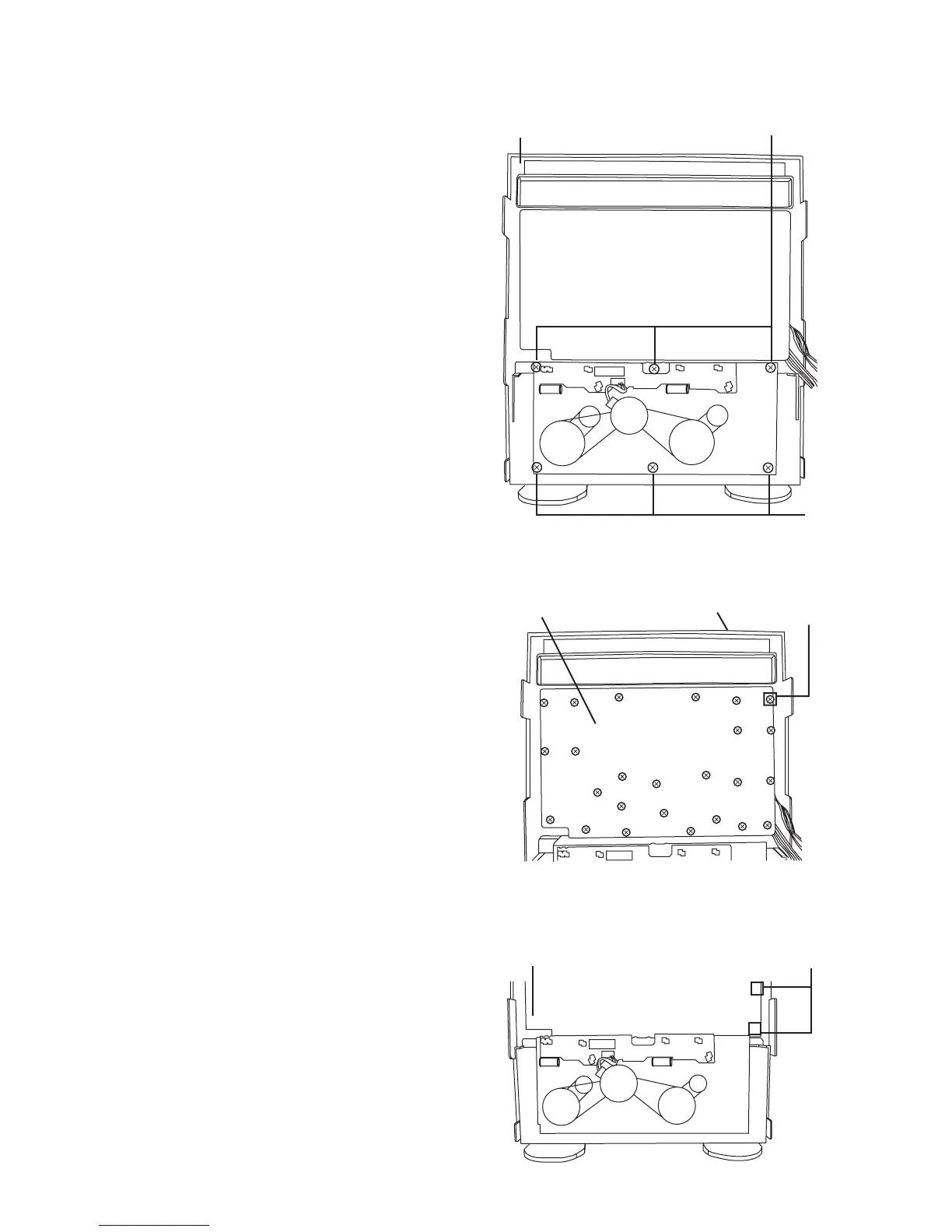

(See Fig.18)
• Prior to performing the following procedures, remove the top
cover.
• Also remove the CD changer unit.
• Also remove the front panel assembly.
(1) Remove six screws retaining the cassette deck mecha-
nism.
Fig.18
3.2.7 Removing the key open board & the key REC board
(See Fig.19)
• Prior to performing the following procedures, remove the top
cover.
• Also remove the CD changer unit.
• Also remove the front panel assembly.
(1) Remove 25 screws P that retains the key open board.
Fig.19
3.2.8 Removing the display board
(See Fig.20)
• Prior to performing the following procedures, remove the top
cover.
• Also remove the CD changer unit.
• Also remove the front panel assembly.
(1) Remove 25 screws Q that retain the front board from the
back of the front panel unit.
Fig.20
Front panel
assembly
Z
Z
Front panel
assembly
Front board
P
Q
Display board
