JVC MX-KC2 - Remove Two Screws S Retaining the Sound Mode and CD Function (Key 2) Switch Board.(Fig

(No.MB434)1-13
3.2.9 Removing the Switch board and sound mode and CD function switch board
(See Fig.19 to 22)
• Prior to performing the following procedures, remove the top
cover.
• Also remove the CD changer unit.
• Also remove the front panel assembly.
(1) Pull out the volume control knob from the front of the front
panel assembly.(Fig.21)
(2) Remove six screws Q retaining the front panel assembly.
(3) Remove the Control/FL board.
(4) Remove eleven screws R retaining the Switch (key 1)
board.(Fig.19)
(5) Remove two screws S retaining the sound mode and CD
function (key 2) switch board.(Fig.20)

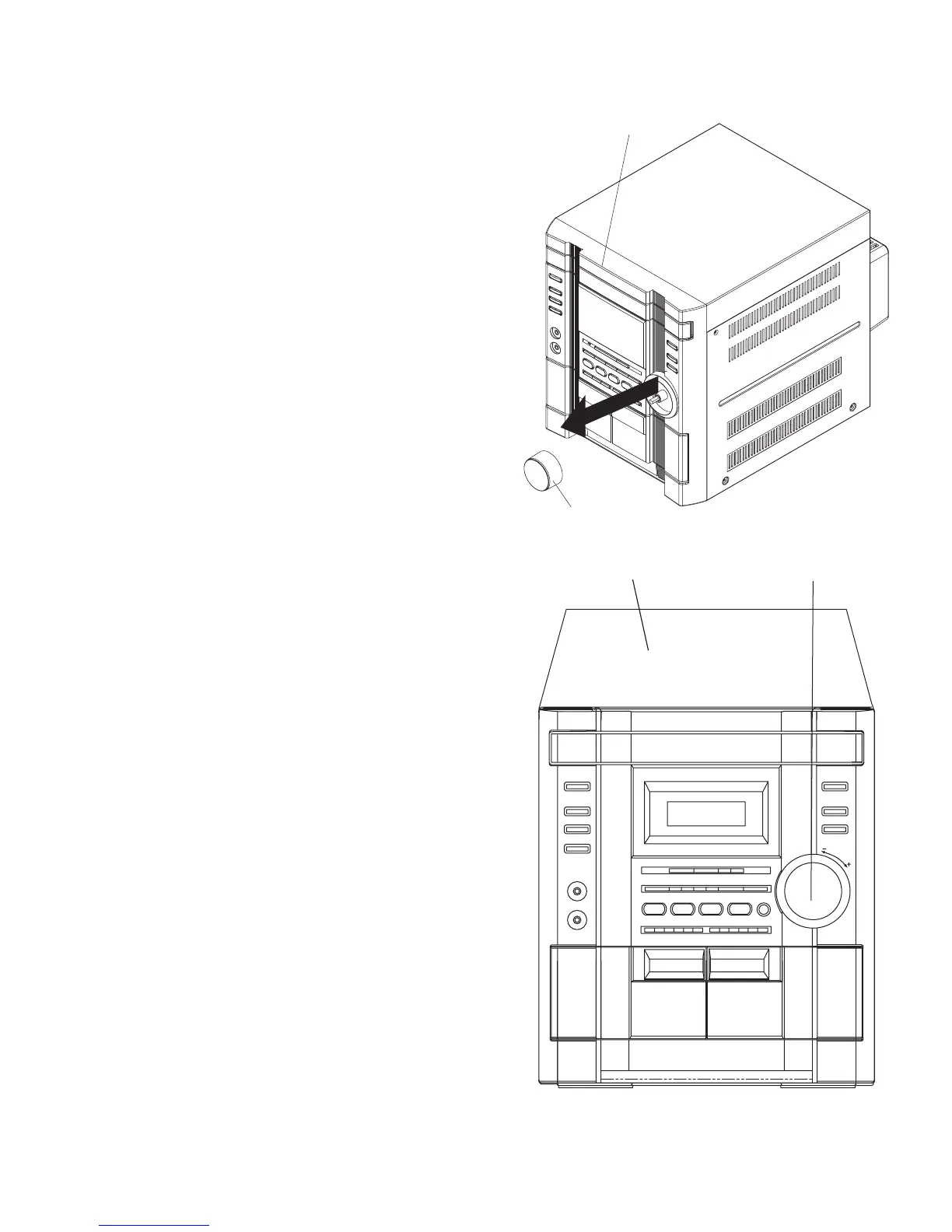

Fig.21
Fig.22
Volume knob
Front panel assembly
Front panel
assembly
Volum
shaft
