(No.MB434)1-15
3.2.12 Removing the cassette deck heads
(See Fig. 18 and 26)
• Prior to performing the following procedures, remove the top
cover and both sides board.
• Also remove the CD changer unit.
• Also remove the front panel assembly.
(1) Remove six screws Z that retain the cassette deck mecha-
nism. (Fig.18)
(2) Remove the cassette deck mechanism and place it so that
the front side faces up.
(3) Remove the solder from the bottom side of the head termi-
nal and disconnect the wire.
(4) Remove screws U that retains the head.
(5) Remove screws V that retains the head.
(6) Hold the head and slide it in the direction of the arrow to re-
move it.

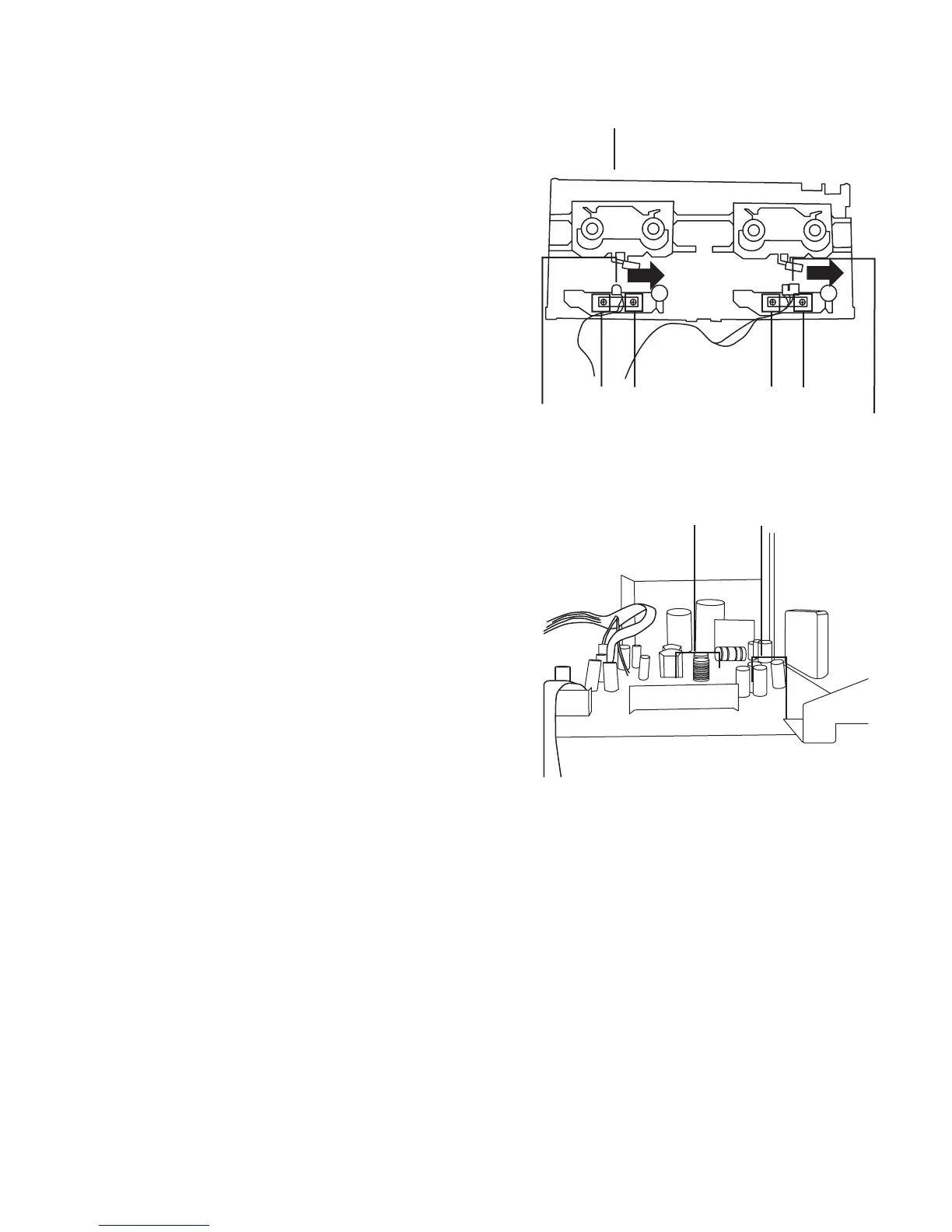

Fig.26
3.2.13 Removing the 3-pin regulator and bridge diode
(See Q604, Q608, D614, D615 and Fig.27)
• Prior to performing the following procedures, remove the top
cover and both sides board.
(1) Remove two screws A that connect the heat sink.
(2) Remove two screws W that connect the heat sink.
(3) Remove the solder fixing the 3-pin terminal regulator Q604,
Q608.
(4) Remove the solder fixing the 4-pin bridge diode (D614,
D615).
Fig.27
Cassette dec k mechanism
(Front side)
V
U
VU
PB Head
REC/PB Head
A
W
