5

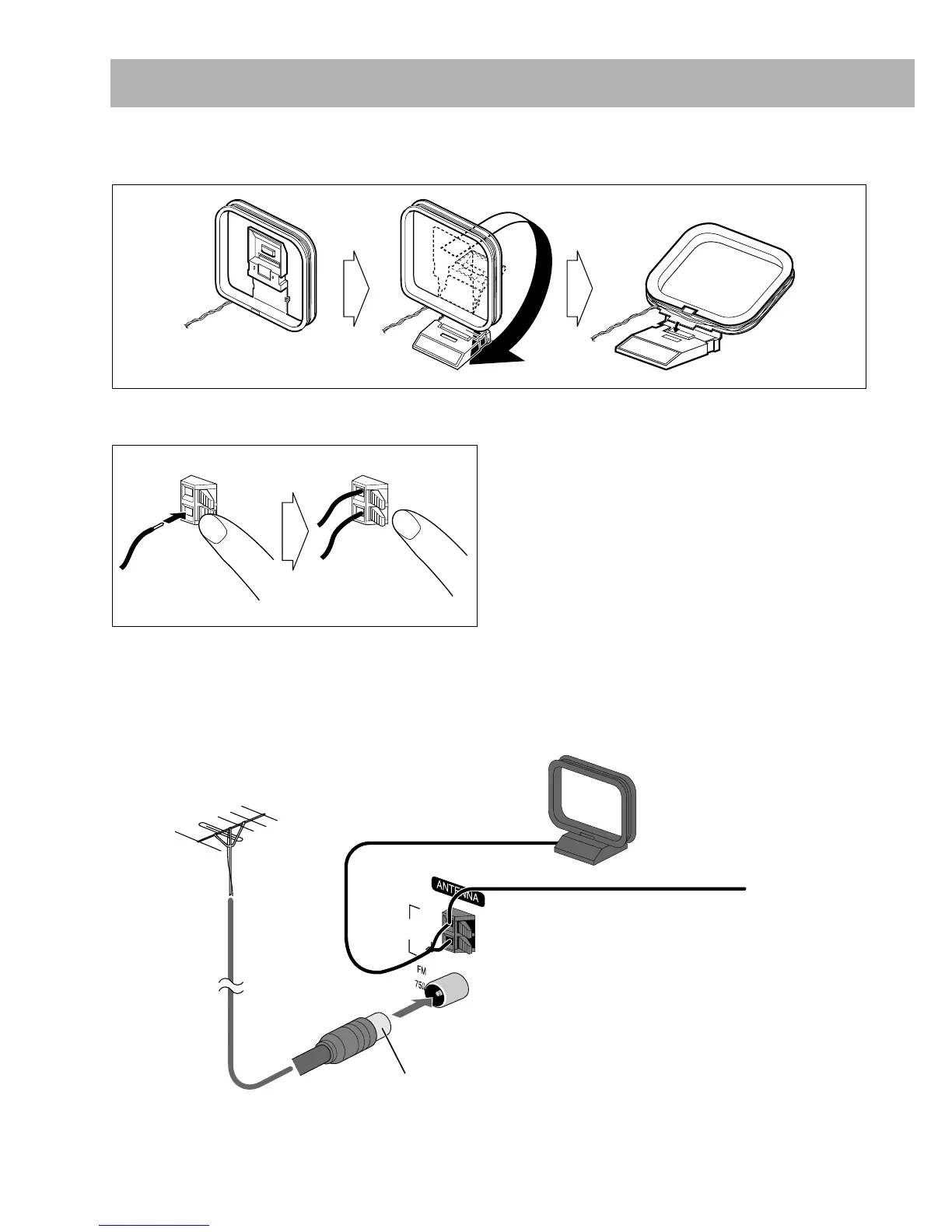

To assemble and connect the AM loop antenna
To assemble the AM loop antenna
To connect the AM loop antenna
Make sure to connect the wire correctly.
• If the AM loop antenna wire or speaker cords are covered with vinyl, remove the vinyl to expose the tip of the antenna by
twisting the vinyl.
• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. Also, keep the
antennas away from metallic parts of the System, connecting cords, and the AC power cord. This could cause poor
reception.
1 Hold
2 Insert
3 Release
AM
EXT
GND
AM
EXT
GND
AM
LOOP
Disconnect the supplied FM antenna, and connect to an outdoor FM antenna
using a 75 Ω wire with coaxial type connector.
Vynile-covered wire (not supplied)
Extend it horizontally.
AM loop antenna
Keep it connected.
For better FM/AM reception
Outdoor FM
antenna
(not supplied)
To Next Page
