MX-S6MD
1-5
Remove the four screws A on the back of the body.
Remove the two screws B on both sides of the body.
Lift up the rear part of the top cover while pulling
both sides, then remove the top cover.
1.
2.
3.

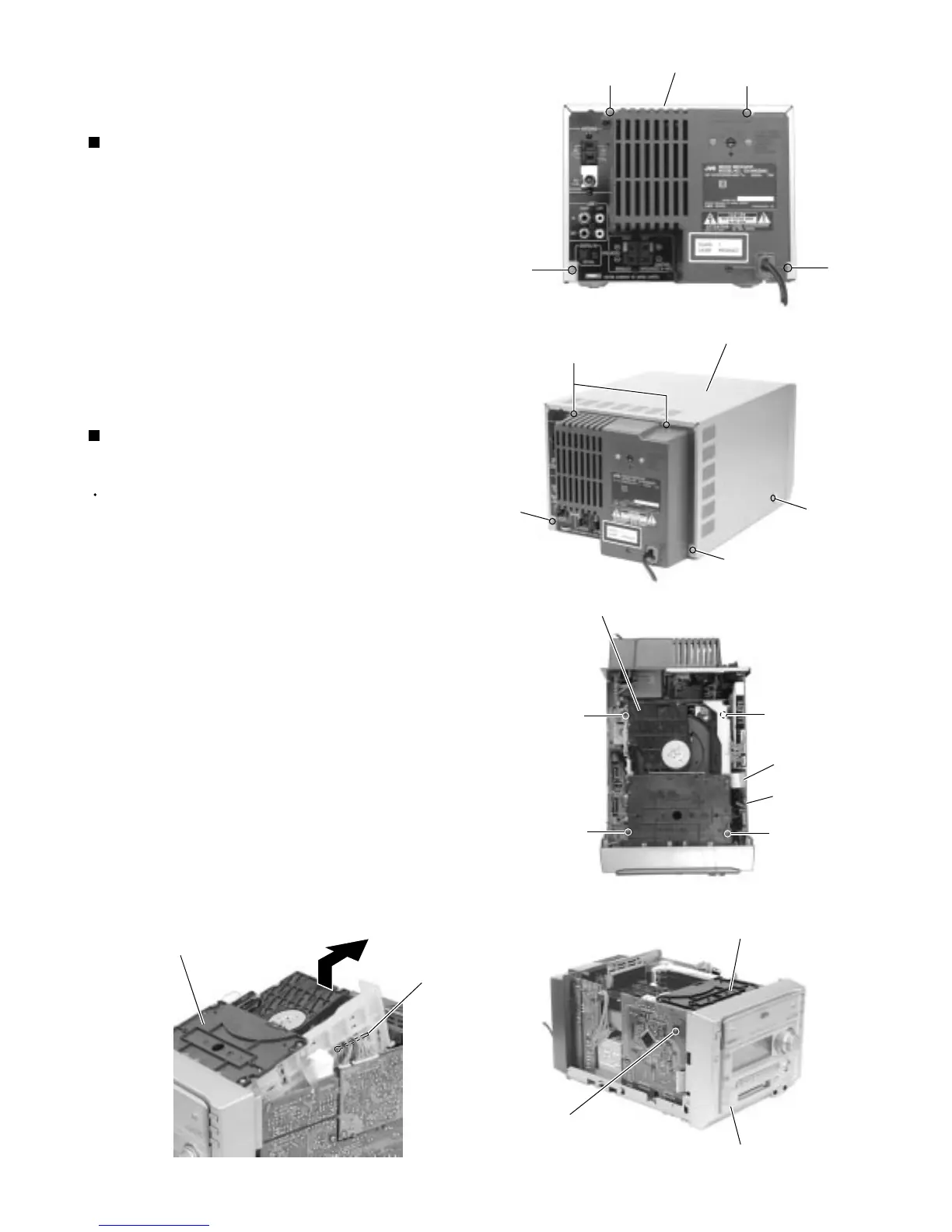

Disassembly method
<Main body>
Removing the top cover
(See Fig. 1 and 2)
Prior to performing the following procedure, remove
the top cover.
Disconnect the card wire from connector CN661 on
the input board.
Remove the four screws C on the upper side of the
body.
Remove the screw D on the left side of the body.
Release the wires from the clamp on the right side of
the CD changer mechanism assembly. Lift up the
rear part of the CD changer mechanism assembly
and pull out it from the front assembly.
1.
2.
3.
4.
Removing the CD changer mechanism
assembly (See Fig.3 to 5)
Fig.1
Fig.2
Fig.3
Fig.4Fig.5
Top cover
A
A
A
A
A
A
C
C
Bx
2
A
Top cover
CD changer mechanism assembly
CD changer mechanism assembly
CD changer mechanism assembly
Clamp
Input board
Front panel assembly
CN661
C
C
D
