PC-V55 sec |

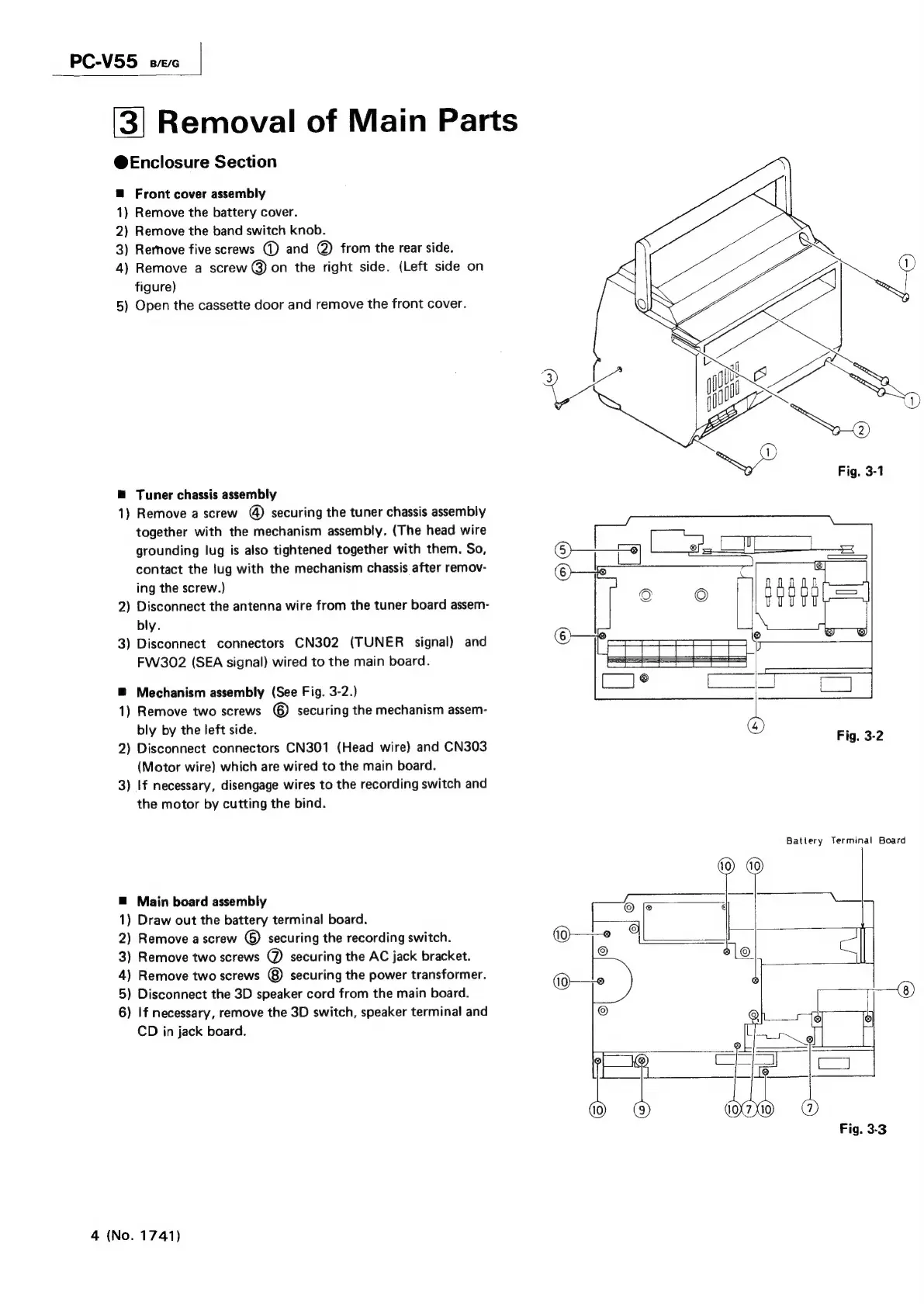

Removal of Main Parts
@Enclosure Section
@ Front cover assembly
1) Remove the battery cover.
2) Remove the band switch knob.
3) Remove five screws @) and @) from the rear side.
4) Remove a screw @ on the right side. (Left side on
figure)
5) Open the cassette door and remove the front cover.
@ Tuner chassis assembly
1) Remove a screw @) securing the tuner chassis assembly
together with the mechanism assembly. (The head wire
grounding lug is also tightened together with them. So,
contact the jug with the mechanism chassis after remov-
ing the screw.)
2) Disconnect the antenna wire from the tuner board assem-
bly.
3) Disconnect connectors CN302 (TUNER signal) and
FW302 (SEA signal) wired to the main board.
® Mechanism assembly (See Fig. 3-2.)
1) Remove two screws © securing the mechanism assem-
bly by the left side.
2) Disconnect connectors CN301 (Head wire) and CN303
(Motor wire) which are wired to the main board.
3) If necessary, disengage wires to the recording switch and
the motor by cutting the bind.
Battery Terminal Board
@ Main board assembly
1) Draw out the battery terminal board.
2) Remove ascrew () securing the recording switch.
3} Remove two screws @ securing the AC jack bracket.
4) Remove two screws @) securing the power transformer.
5) Disconnect the 3D speaker cord from the main board.
6) If necessary, remove the 3D switch, speaker terminal and
CD in jack board.
Fig. 3-3
4 (No. 1741)
