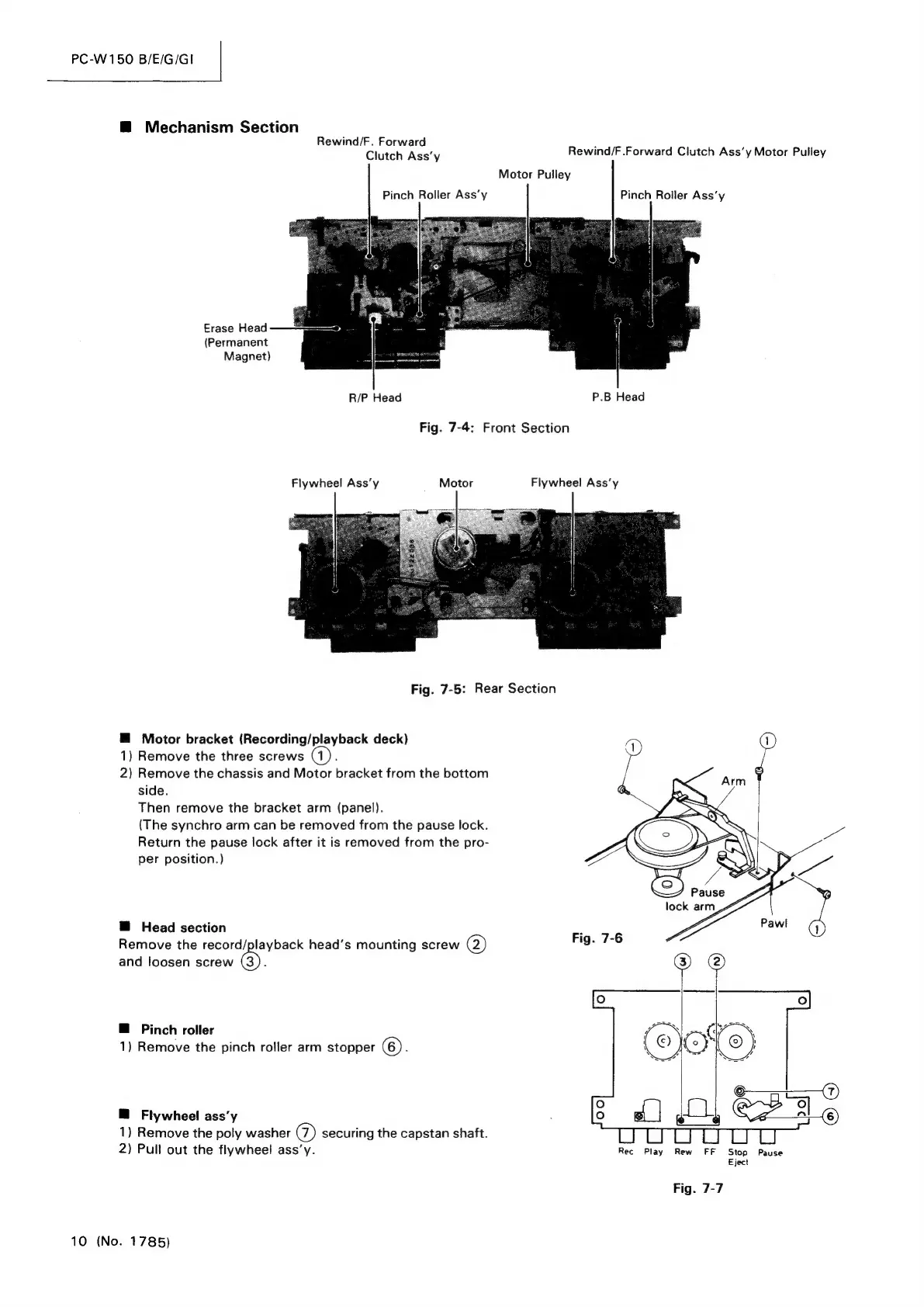

PC-W 150 B/E/G/GI
@ Mechanism Section
Rewind/F. Forward
Clutch Ass‘y Rewind/F .Forward Clutch Ass‘y Motor Pulley
Motor Pulley
Pinch Roller Ass’y Pinch Roller Ass’y
Erase Head
(Permanent
Magnet)
R/P Head P.B Head
Fig. 7-4: Front Section
Flywheel Ass’y Motor Flywheel Ass’y
Fig. 7-5: Rear Section
@ Motor bracket (Recording/playback deck)
1) Remove the three screws
2) Remove the chassis and Motor bracket from the bottom
side.
Then remove the bracket arm (panel).
(The synchro arm can be removed from the pause lock.
Return the pause lock after it is removed from the pro-
per position.)
B Head section
Remove the record/playback head's mounting screw @)
and loosen screw
a Pinch roller
1) Remove the pinch roller arm stopper 6).
M@ Flywheel ass’y
1) Remove the poly washer @) securing the capstan shaft.
2) Pull out the flywheel ass’y. Rec Play Rew FF Stop Pause
Eject
Fig. 7-7
10 (No. 1785)
