JVC PC-W150 User Manual

L PC-W 150 B/E/G/GI
Fey
a)
M
\

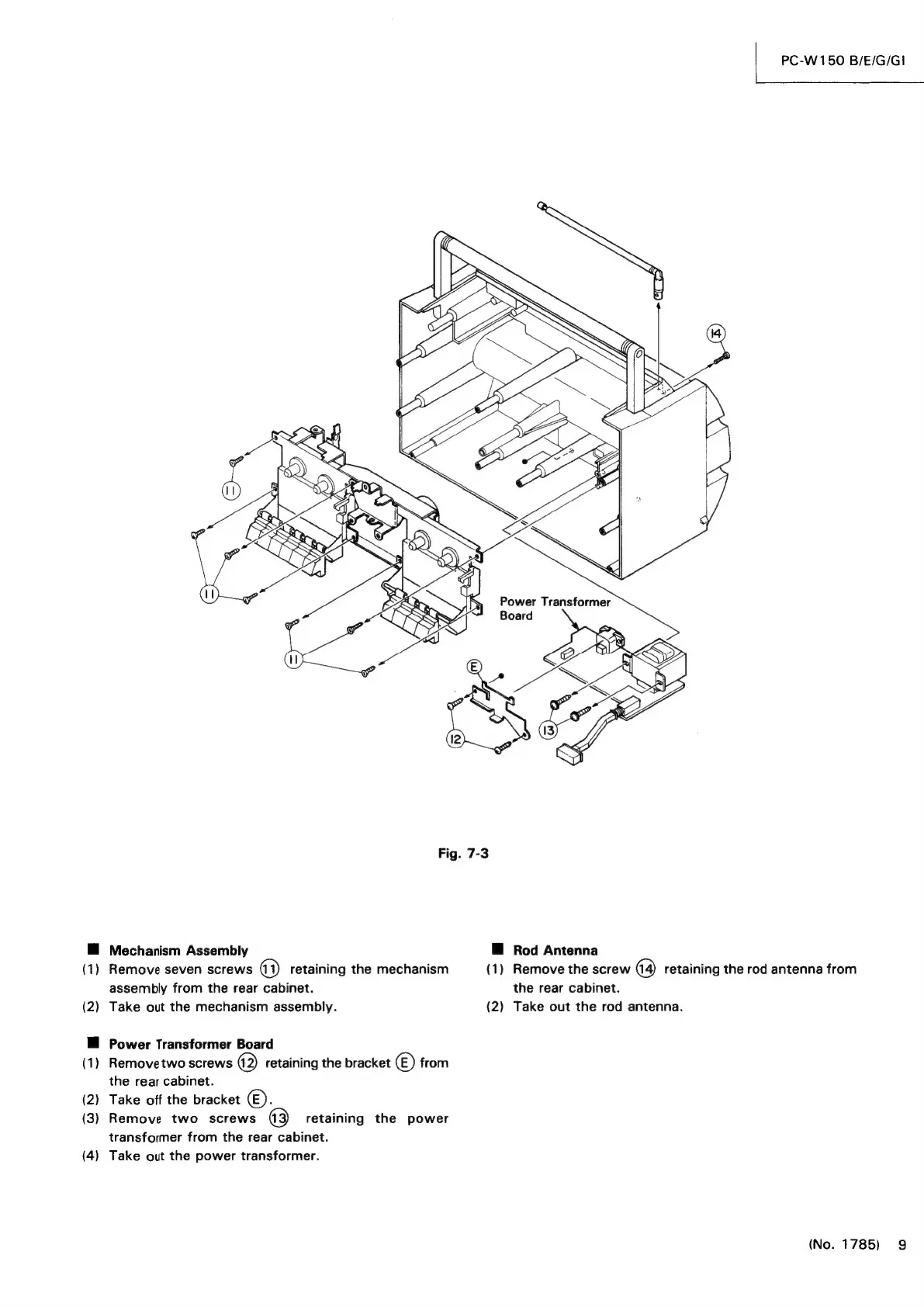

Fig. 7-3
M@ Mechanism Assembly @ Rod Antenna
(1) Remove seven screws a) retaining the mechanism (1) Remove the screw retaining the rod antenna from
assembly from the rear cabinet. the rear cabinet.
(2) Take out the mechanism assembly. (2) Take out the rod antenna.
Hi Power Transformer Board
(1) Removetwo screws 42) retaining the bracket €) from
the rear cabinet.
(2) Take off the bracket (E).
(3) Remove two screws a3 retaining the power
transformer from the rear cabinet.
(4) Take out the power transformer.
_—
(No. 1785) 9
