PC-W
150
B/E/G/GI
8
@

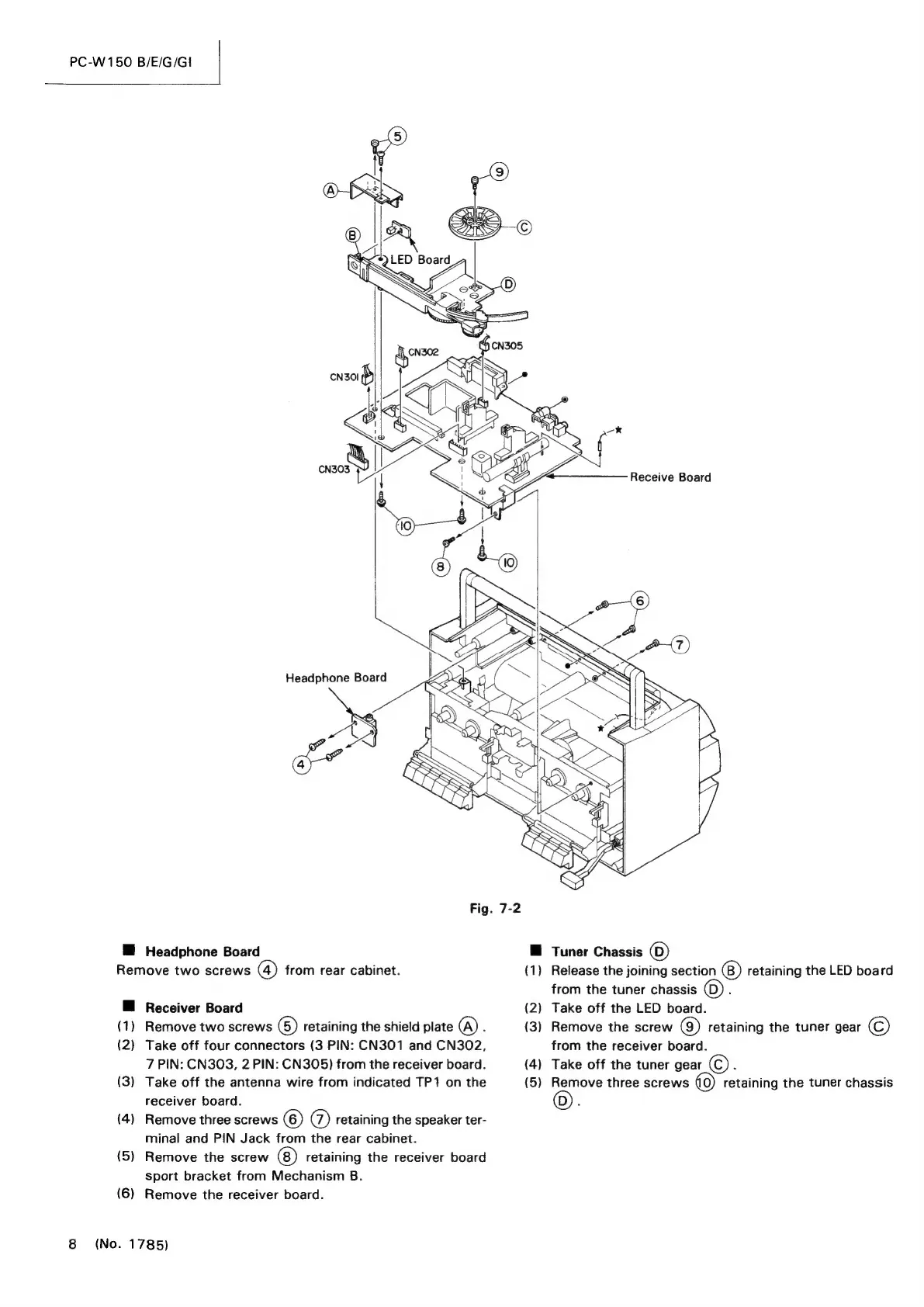

Headphone
Board
Remove
two
screws
(4)
from
rear
cabinet.
M@
Receiver
Board
(1)
Remove
two
screws
6)
retaining
the
shield
plate
(A)
:
(2)
Take
off
four
connectors
(3
PIN:
CN301
and
CN302,
7
PIN:
CN303,
2
PIN:
CN305)
from
the
receiver
board.
(3)
Take
off
the
antenna
wire
from
indicated
TP1
on
the
receiver
board.
(4)
Remove
three
screws
6)
retaining
the
speaker
ter-
minal
and
PIN
Jack
from
the
rear
cabinet.
{5)
Remove
the
screw
retaining
the
receiver
board
Sport
bracket
from
Mechanism
B.
(6)
Remove
the
receiver
board.
(No.
1785)
(1)
(2)
(3)
(4)
(5)
Receive
Board
Tuner
Chassis
(©)
Release
the
joining
section
retaining
the
LED
board
from
the
tuner
chassis
Take
off
the
LED
board.
Remove
the
screw
@)
retaining
the
tuner
gear
©
from
the
receiver
board.
Take
off
the
tuner
gear
Remove
three
screws
(0)
retaining
the
tuner
chassis
