JVC PC-W150 User Manual

PC-W 150 B/E/G/GI

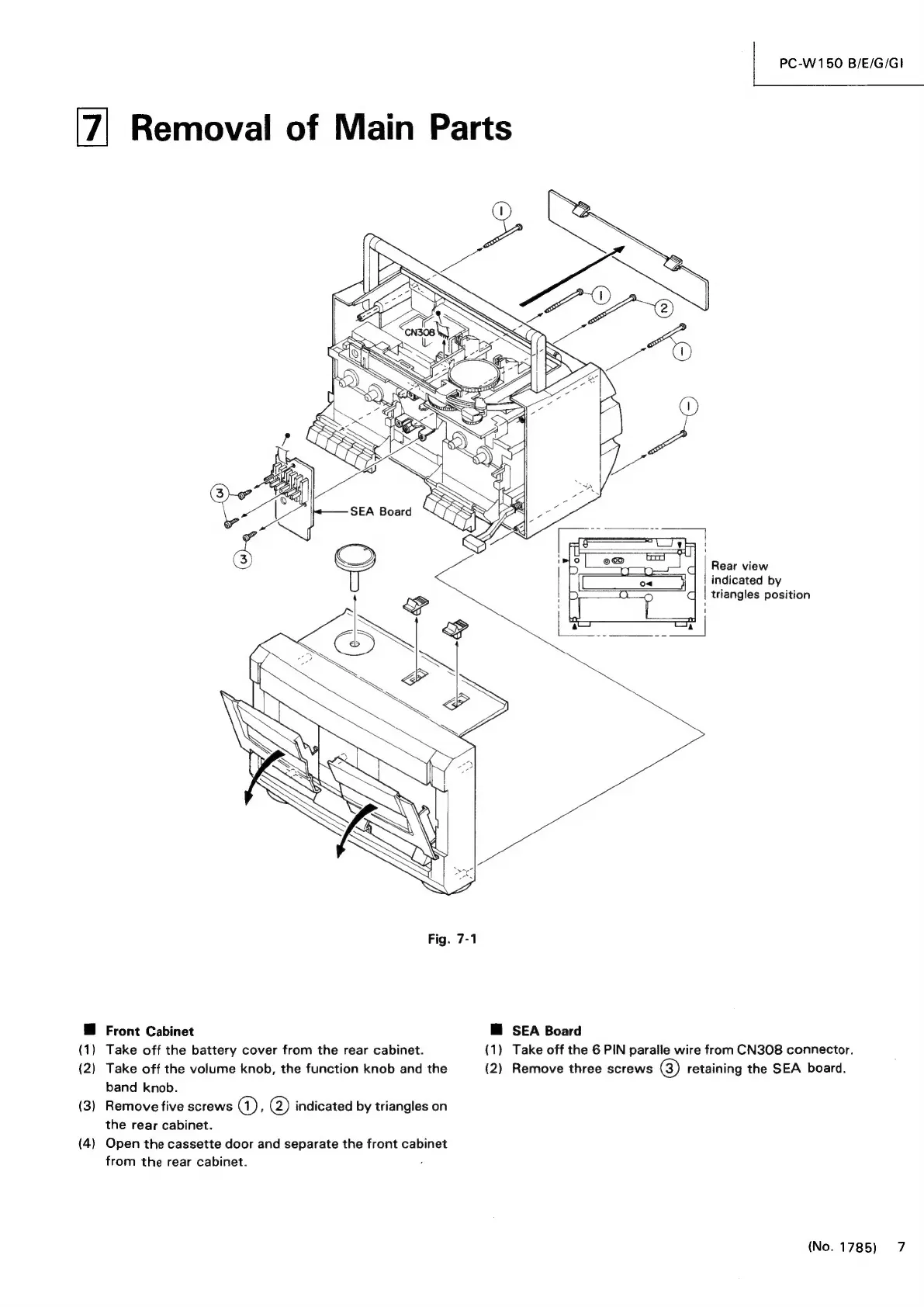

Removal of Main Parts
Rear view
indicated by
| triangles position
Fig. 7-1
@ Front Cabinet @ SEA Board
(1) Take off the battery cover from the rear cabinet. (1) Take off the 6 PIN paralle wire from CN308 connector.
(2) Take off the volume knob, the function knob and the (2) Remove three screws 3) retaining the SEA board.
band knob.
Remove five screws @) ; Q) indicated by triangles on
the rear cabinet.
(4) Open the cassette door and separate the front cabinet
from the rear cabinet. .
(3
(No. 1785) 7
