JVC PC-W150 User Manual

| PC-W150 B/E/G/GI

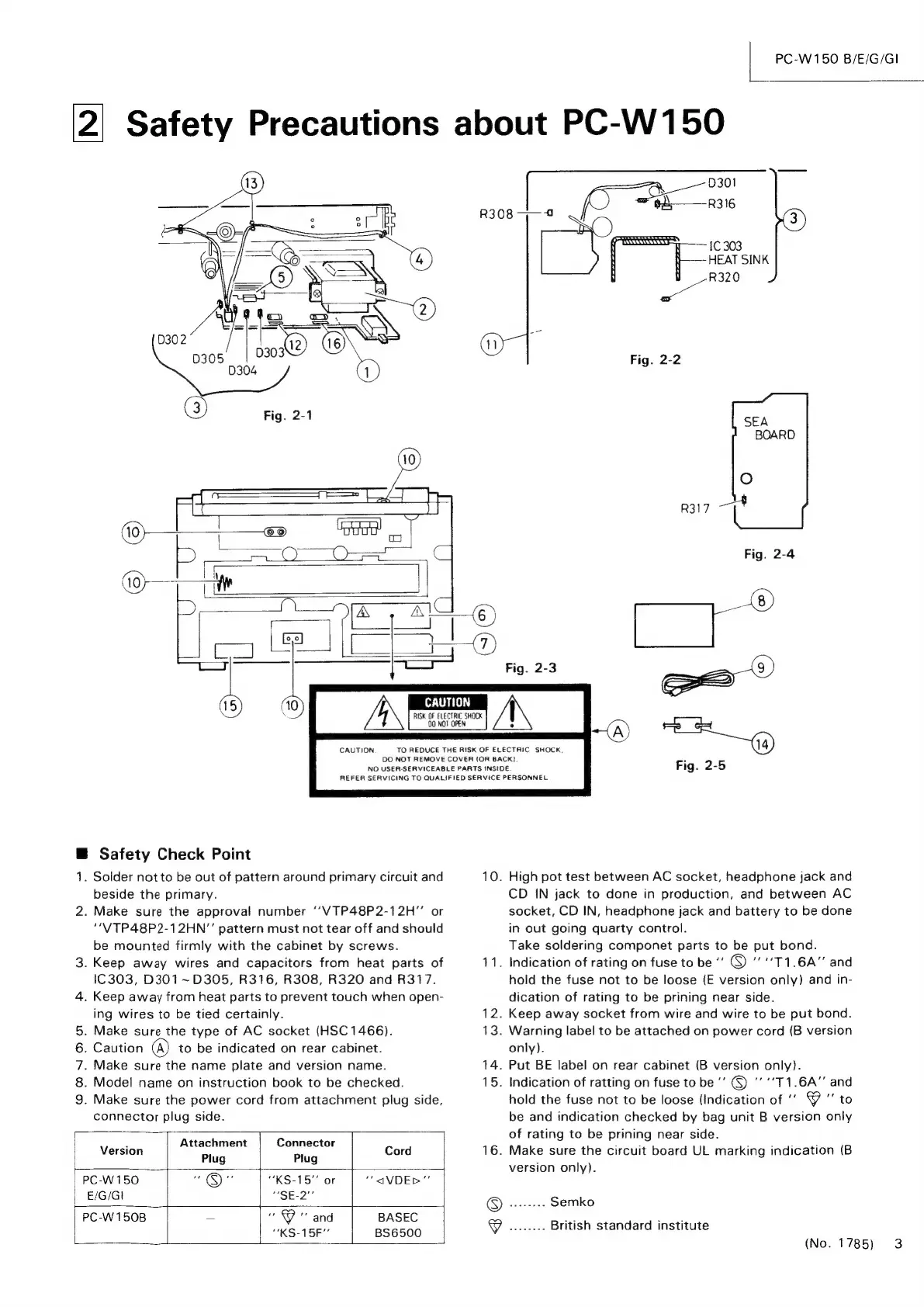

Safety Precautions about PC-W150
15 CAUTION
\ ne RISK OF ELECTRIC SHOCK
00 NOT OPEN
CAUTION
@ Safety Check Point
1.
2.
is
ooOnon
Solder not to be out of pattern around primary circuit and
beside the primary.
Make sure the approval number ‘’VTP48P2-12H”’ or
“VTP48P2-12HN”’ pattern must not tear off and should
be mounted firmly with the cabinet by screws.
. Keep away wires and capacitors from heat parts of
IC303, D301 ~D305, R316, R308, R320 and R317.
. Keep away from heat parts to prevent touch when open-
ing wires to be tied certainly.
. Make sure the type of AC socket (HSC 1466).
. Caution
to be indicated on rear cabinet.
Make sure the name plate and version name.
. Model name on instruction book to be checked.
. Make sure the power cord from attachment plug side,
connector plug side.
Version Attachment Connector Géid
Plug Plug
PC-W150 “CO” “KS-15" or “aVDER”
E/G/GI “SE-2”
PC-W150B = “ @" and BASEC
“KS-15F” BS6500
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK}
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
10.
11.
12.
13.
14.
15.
16.
D301
oh,—_—-R316
IC
303
HEAT SINK
R320
a
Fig. 2-2
SEA
BOARD
R317
Fig. 2-4
Fig. 2-5
High pot test between AC socket, headphone jack and
CD IN jack to done in production, and between AC
socket, CD IN, headphone jack and battery to be done
in out going quarty control.
Take soldering componet parts to be put bond.
Indication of rating on fuse to be *’ © ""'T1.6A" and
hold the fuse not to be loose (E version only) and in-
dication of rating to be prining near side.
Keep away socket from wire and wire to be put bond.
Warning label to be attached on power cord (B version
only).
Put BE label on rear cabinet (B version only).
Indication of ratting on fuse to be ‘’ © “‘T1.6A” and
hold the fuse not to be loose (Indication of ‘’ Y "’ to
be and indication checked by bag unit B version only
of rating to be prining near side.
Make sure the circuit board UL marking indication (B
version only}.
(No. 1785)
