JVC PC-W150 User Manual

PC-W150 B/E/G/GI |
4

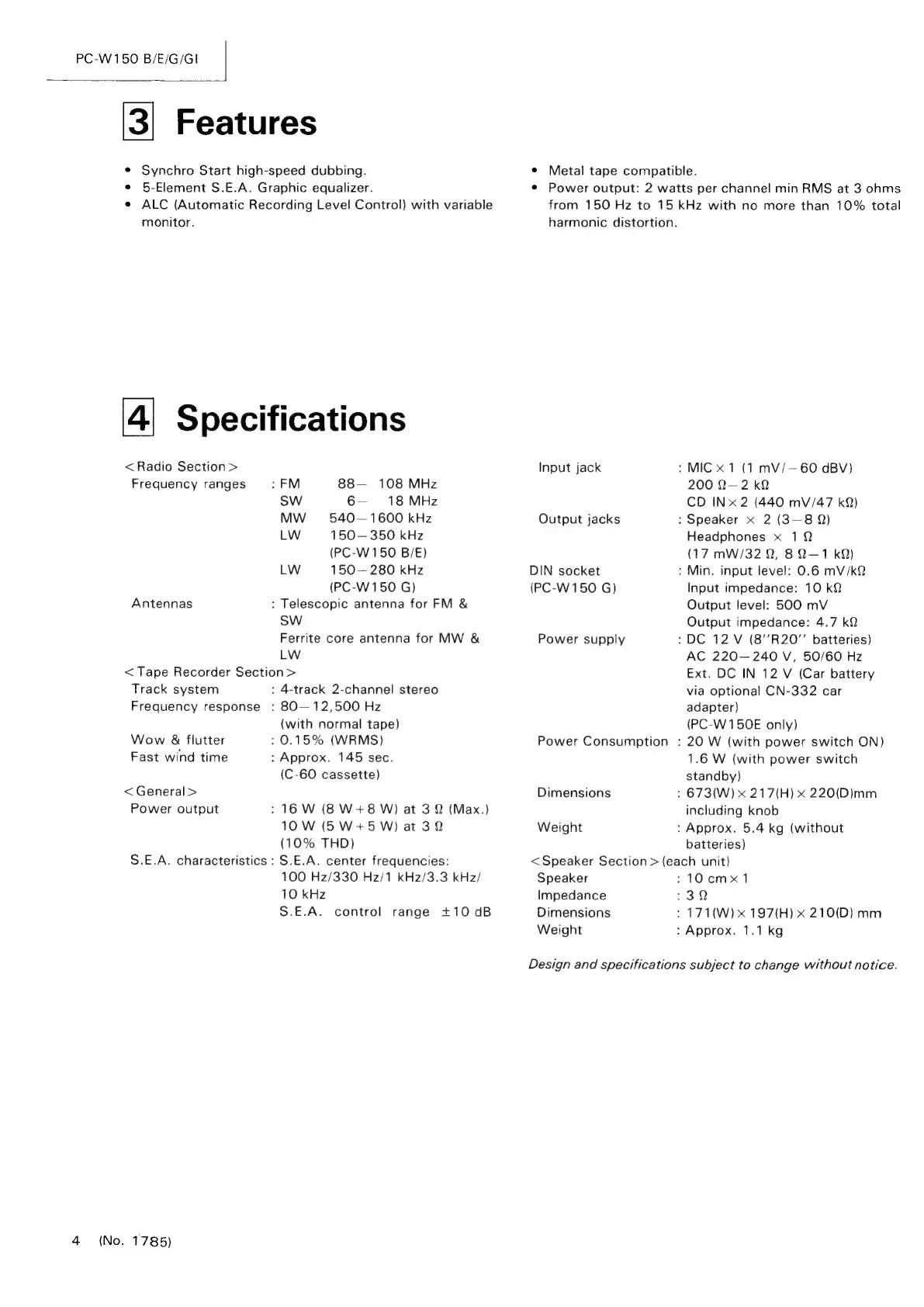

Features
¢ Synchro Start high-speed dubbing.
e 5-Element S.E.A. Graphic equalizer.
e ALC (Automatic Recording Level Control) with variable
monitor.
4) Specifications
<Radio Section >
Frequency ranges > FM 88— 108 MHz
SW 6— 18 MHz
MW 540—1600 kHz
LW 150—350 kHz
(PC-W150 B/E)
LW 150—280 kHz
(PC-W150 G)
Antennas : Telescopic antenna for FM &
SW
Ferrite core antenna for MW &
LW
< Tape Recorder Section>
Track system : 4-track 2-channel stereo
Frequency response : 80—12,500 Hz
(with normal tape)
Wow & flutter > 0.15% (WRMS)
Fast wind time : Approx. 145 sec.
(C-60 cassette)
<General>
Power output > 16W (8 W+8 W) at 3 2 (Max.)
10W (5W+5W) at 32
(10% THD)
S.E.A. characteristics : S.E.A. center frequencies:
100 Hz/330 Hz/1 kHz/3.3 kHz/
10 kHz
S.E.A. control range +10 dB
(No. 1785)
e Metal tape compatible.
¢ Power output: 2 watts per channel min RMS at 3 ohms
from 150 Hz to 15 kHz with no more than 10% total
harmonic distortion.
Input jack : MIC x 1 (1 mV/— 60 dBV)
200 02-2 kQ
CD INx 2 (440 mV/47 kQ)
Output jacks : Speaker x 2 (3-8)
Headphones x 1 2
(17 mW/32 0, 8 2-1 kQ)
DIN socket : Min. input level: 0.6 mV/kQ
(PC-W150 G) Input impedance: 10 kQ
Output level: 500 mV
Output impedance: 4.7 kQ
Power supply :DC 12 V (8''R20"’ batteries)
AC 220-240 V, 50/60 Hz
Ext. DC IN 12 V (Car battery
via optional CN-332 car
adapter)
(PC-W150E only)
Power Consumption : 20 W (with power switch ON)
1.6 W (with power switch
standby)
Dimensions : 673(W) x 217(H) x 220(D)mm
including knob
Weight : Approx. 5.4 kg (without
batteries)
<Speaker Section > (each unit)
Speaker > 10cm~x 1
Impedance > 302
Dimensions : 171(W) x 197{H) x 210(D) mm
Weight : Approx. 1.1 kg
Design and specifications subject to change without notice.

JVC PC-W150 Specifications

General

Brand	JVC
Model	PC-W150
Category	Stereo System
Language	English
