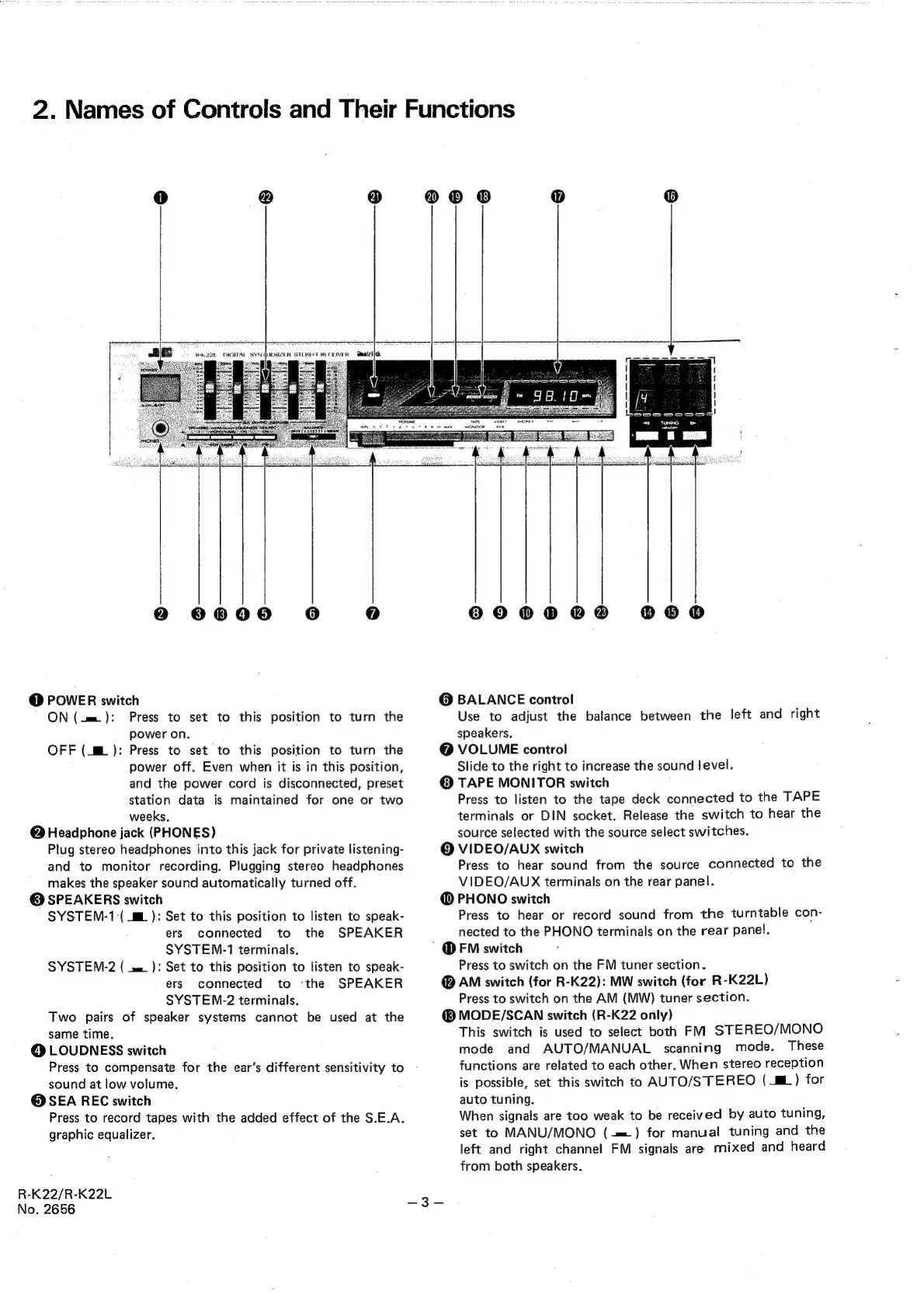

2. Names of Controls and Their Functions
SRR ZS. DIGITAL SYNTHESIZER STEREO RECEVER — Bealzild&
e@ 8800080 @ .7)
@ POWER switch
ON (.m.): Press to set to this position to turn the
power on.
OFF (_M@L ): Press to set to this position to turn the
power off. Even when it is in this position,
and the power cord is disconnected, preset
station data is maintained for one or two
weeks.
@ Headphone jack (PHONES)
Plug stereo headphones into this jack for private listening-
and to monitor recording. Plugging stereo headphones
makes the speaker sound automatically turned off.
@ SPEAKERS switch
SYSTEM-1-( gL ): Set to this position to listen to speak-
ers connected to the SPEAKER
SYSTEM-1 terminals.
SYSTEM-2 ( =): Set to this position to listen to speak-
ers connected to ‘the SPEAKER
SYSTEM-2 terminals.
Two pairs of speaker systems cannot be used at the
same time.
@ LOUDNESS switch
Press to compensate for the ear’s different sensitivity to
sound at low volume.
@ SEA REC switch
Press to record tapes with the added effect of the S.E.A.
graphic equalizer.
R-K22/R-K22L
No. 2656
69000086 0800
@ BALANCE control
Use
to
adjust
the
balance
between
the
left
and
right
speakers.
@ VOLUME control
Slide to the right to increase the sound level.
© TAPE MONITOR switch
Press
to
listen
to
the
tape
deck
connected
to
the
TAPE
terminals
or
DIN
socket.
Release
the
switch
to
hear
the
source selected with the source select switches.
@ VIDEO/AUX switch
Press
to
hear
sound
from
the
source
connected
to
the
VIDEO/AUX terminals on the rear panel.
@ PHONO switch
Press
to
hear
or
record
sound
from
the
turntable
con-
nected to the PHONO terminals on the rear panel.
’ OFM switch
Press to switch on the FM tuner section.
@ AM switch (for R-K22): MW switch (for R-K22L)
Press to switch on the AM (MW) tuner section.
@® MODE/SCAN switch (R-K22 onily)
This
switch
is
used
to
select
both
FM
STEREO/MONO
mode
and
AUTO/MANUAL
scanning
mode.
These
functions
are
related
to
each
other.
When
stereo
reception
is possible, set this switch to AUTO/STEREO (mL) for
auto tuning.
When
signals
are
too
weak
to
be
received
by
auto
tuning,
set to MANU/MONO (-=_) for manual tuning and the
left and right channel FM signals are mixed and heard
from both speakers.
