RC-545L/LB

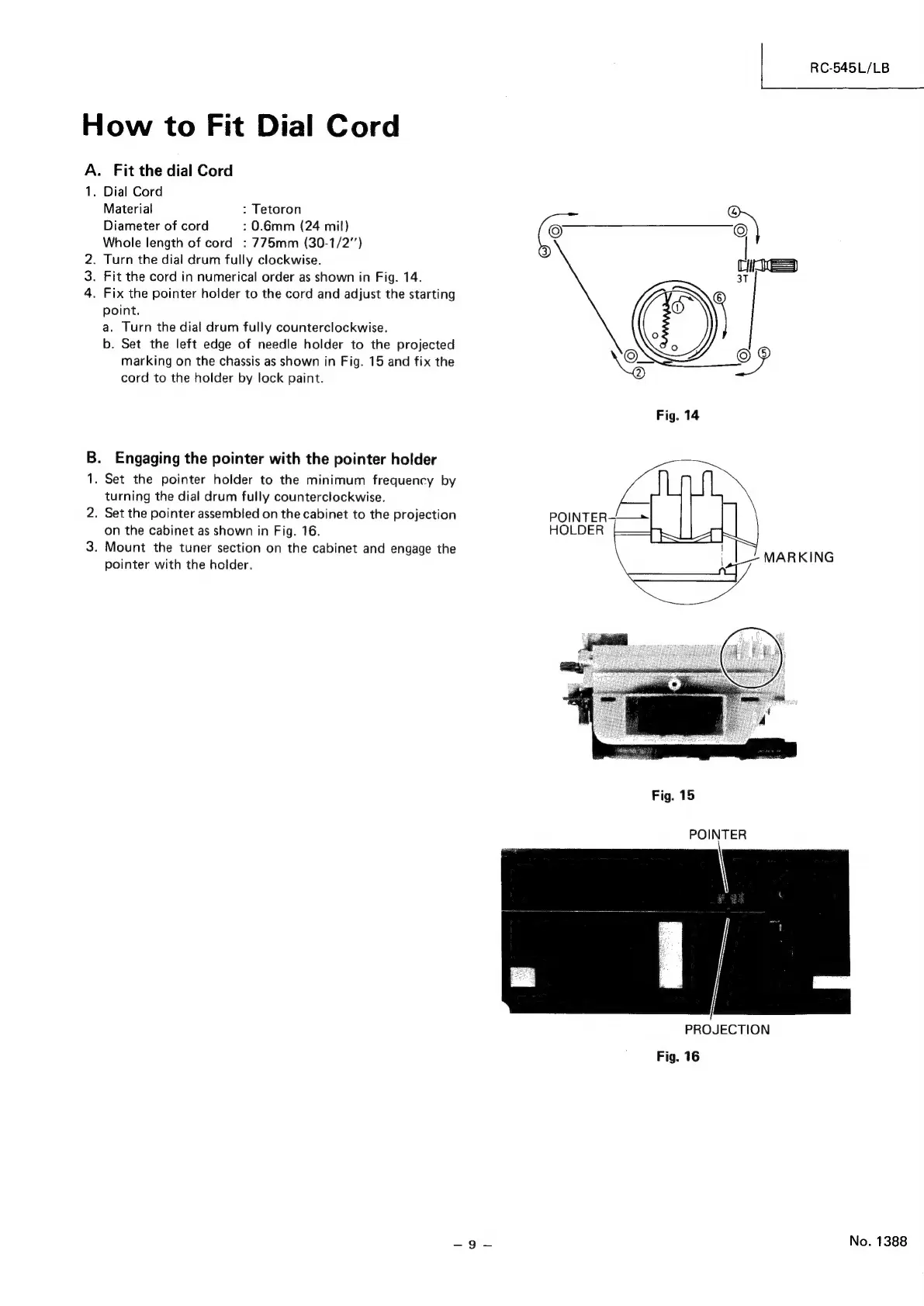

How
to
Fit
Dial
Cord
A.
Fit
the
dial
Cord
1.
Dial
Cord
Material
:
Tetoron
Diameter
of
cord
:
0.6mm
(24
mil)
Whole
length
of
cord
:
775mm
(30-1/2’’)
.
Turn
the
dial
drum
fully
clockwise.
.
Fit
the
cord
in
numerical
order
as
shown
in
Fig.
14.
.
Fix
the
pointer
holder
to
the
cord
and
adjust
the
starting
point.
a.
Turn
the
dial
drum
fully
counterclockwise.
b.
Set
the
left
edge
of
needle
holder
to
the
projected
marking
on
the
chassis
as
shown
in
Fig.
15
and
fix
the
cord
to
the
holder
by
lock
paint.
PWN
B.
Engaging
the
pointer
with
the
pointer
holder
.
Set
the
pointer
holder
to
the
minimum
frequency
by
turning
the
dial
drum
fully
counterclockwise.
2.
Set the
pointer
assembled
on
the
cabinet
to
the
projection
POINTER-~—>
on
the
cabinet
as
shown
in
Fig.
16.
HOLDER
3.
Mount
the
tuner
section
on
the
cabinet
and
engage
the
|
pointer
with
the
holder.
=
MARKING
Fig.
15
POINTER
PROJECTION
Fig.
16
Aigew
No.
1388
