RC-828L/LB

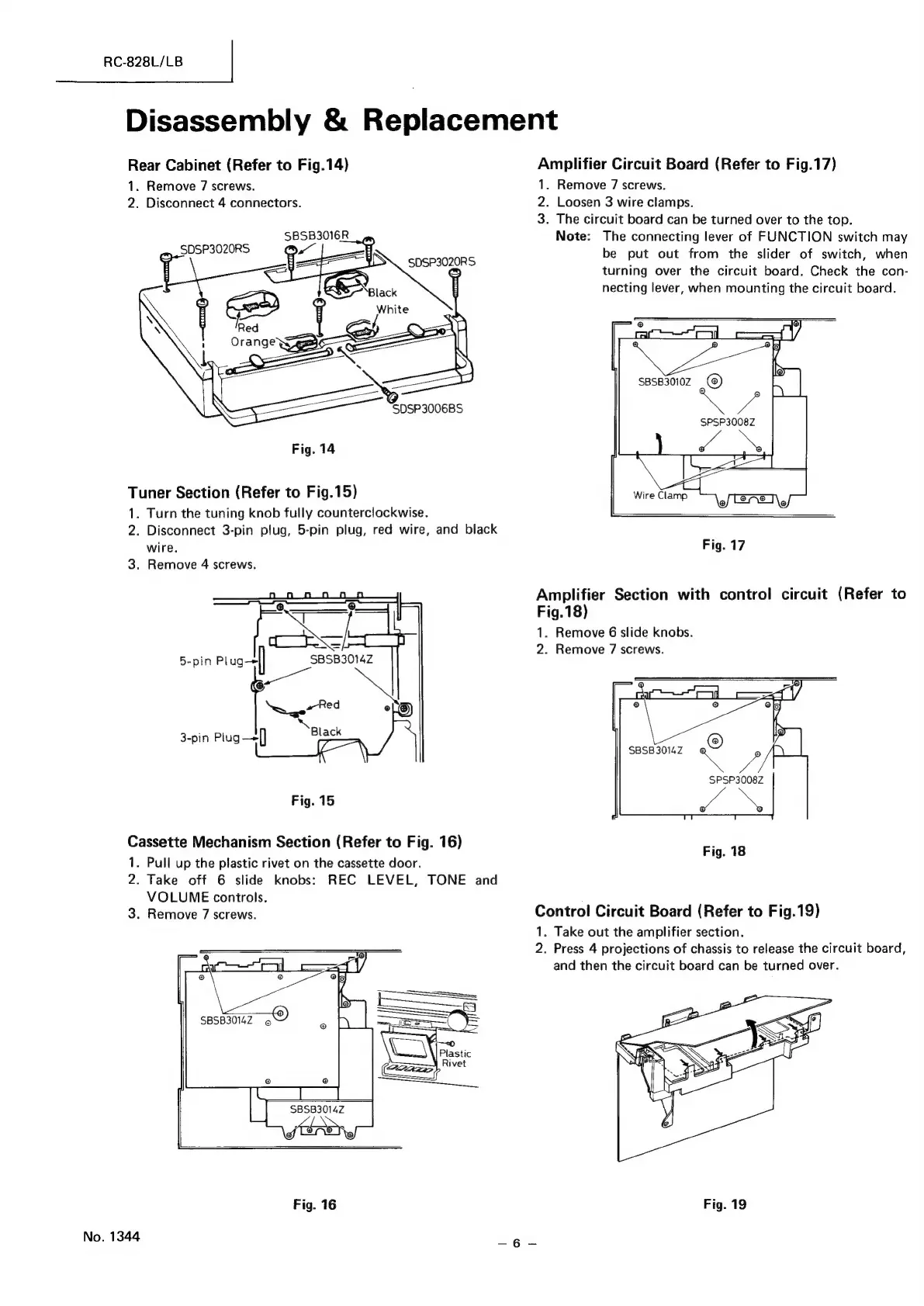

Disassembly & Replacement
Rear Cabinet (Refer to Fig.14) Amplifier Circuit Board (Refer to Fig.17)
1. Remove 7 screws. 1. Remove 7 screws.
2. Disconnect 4 connectors. 2. Loosen 3 wire clamps.
3. The circuit board can be turned over to the top.
SBSB3016R Note: The connecting lever of FUNCTION switch may
SDSP3020RS a
SDSP3020RS be put out from the slider of switch, when
a turning over the circuit board. Check the con-
: necting lever, when mounting the circuit board.
f Ss
SDSP3006BS
Fig. 14
Tuner Section (Refer to Fig.15)
1. Turn the tuning knob fully counterclockwise.
2. Disconnect 3-pin plug, 5-pin plug, red wire, and black
wire.
3. Remove 4 screws.
[Sk
5-pin Plugs] hee
Amplifier Section with control circuit (Refer to
Fig.18)
1. Remove 6 slide knobs.
2. Remove 7 screws.
Ne aRed ©
“alack
3-pin Plug—=[]
SBSB3014Z - ws
SPSP3008Z
Ns
Fig. 15
Cassette Mechanism Section (Refer to Fig. 16)
a
Fig.
18
1.
Pull
up
the
plastic
rivet
on
the
cassette
door.
2. Take
off
6
slide
knobs:
REC
LEVEL,
TONE
and
VOLUME
controls.
3.
Remove
7
screws.
Control
Circuit
Board
(Refer
to
Fig.19)
1. Take out the amplifier section.
2. Press 4 projections of chassis to release the circuit board,
and then the circuit board can be turned over.
Fig. 16 Fig. 19
