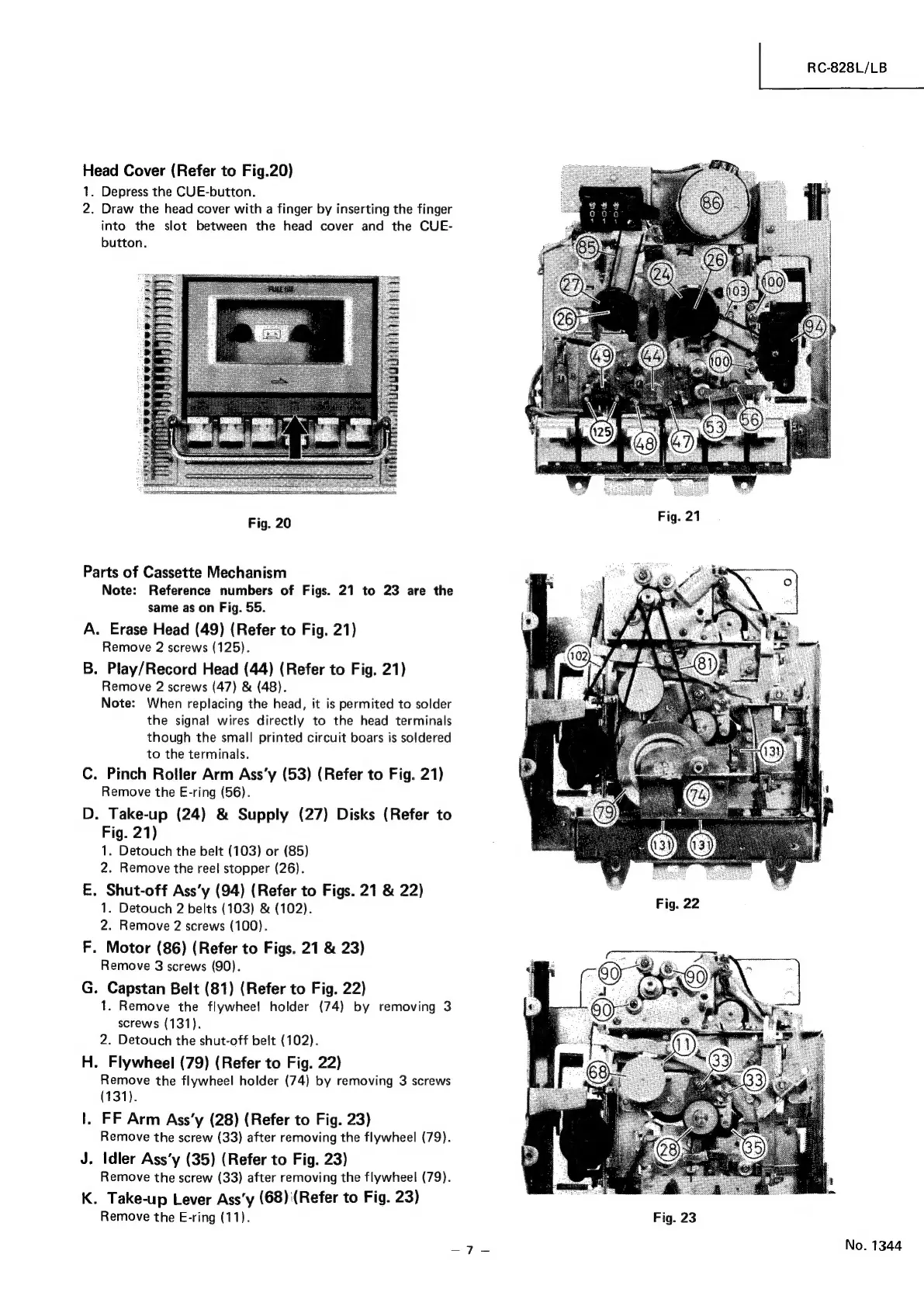

Head Cover (Refer to Fig.20)
1. Depress the CUE-button.
2. Draw the head cover with a finger by inserting the finger
into the slot between the head cover and the CUE-
button.
Fig. 20
Parts of Cassette Mechanism
Note: Reference numbers of Figs. 21 to 23 are the
same as on Fig. 55.
A. Erase Head (49) (Refer to Fig. 21)
Remove 2 screws (125).
B. Play/Record Head (44) (Refer to Fig. 21)
Remove 2 screws (47) & (48).
Note: When replacing the head, it is permited to solder
the signal wires directly to the head terminals
though the small printed circuit boars is soldered
to the terminals.
C. Pinch Roller Arm Ass’y (53) (Refer to Fig. 21)
Remove the E-ring (56).
D. Take-up (24) & Supply (27) Disks (Refer to
Fig. 21)
1. Detouch the belt (103) or (85)
2. Remove the reel stopper (26).
E. Shut-off Ass’y (94) (Refer to Figs. 21 & 22)
1. Detouch 2 belts (103) & (102).
2. Remove 2 screws (100).
F. Motor (86) (Refer to Figs. 21 & 23)
Remove 3 screws (90).
G. Capstan Belt (81) (Refer to Fig. 22)
1. Remove the flywheel holder (74) by removing 3
screws (131).
2. Detouch the shut-off belt (102).
H. Flywheel (79) (Refer to Fig. 22)
Remove the flywheel holder (74) by removing 3 screws
(131).
I. FF Arm Ass’y (28) (Refer to Fig. 23)
Remove the screw (33) after removing the flywheel (79).
J. Idler Ass’y (35) (Refer to Fig. 23)
Remove the screw (33) after removing the flywheel (79).
K. Take-up Lever Ass’y (68) (Refer to Fig. 23)
Remove the E-ring (11).
Fig. 23
| RC-828L/LB
No. 1344
