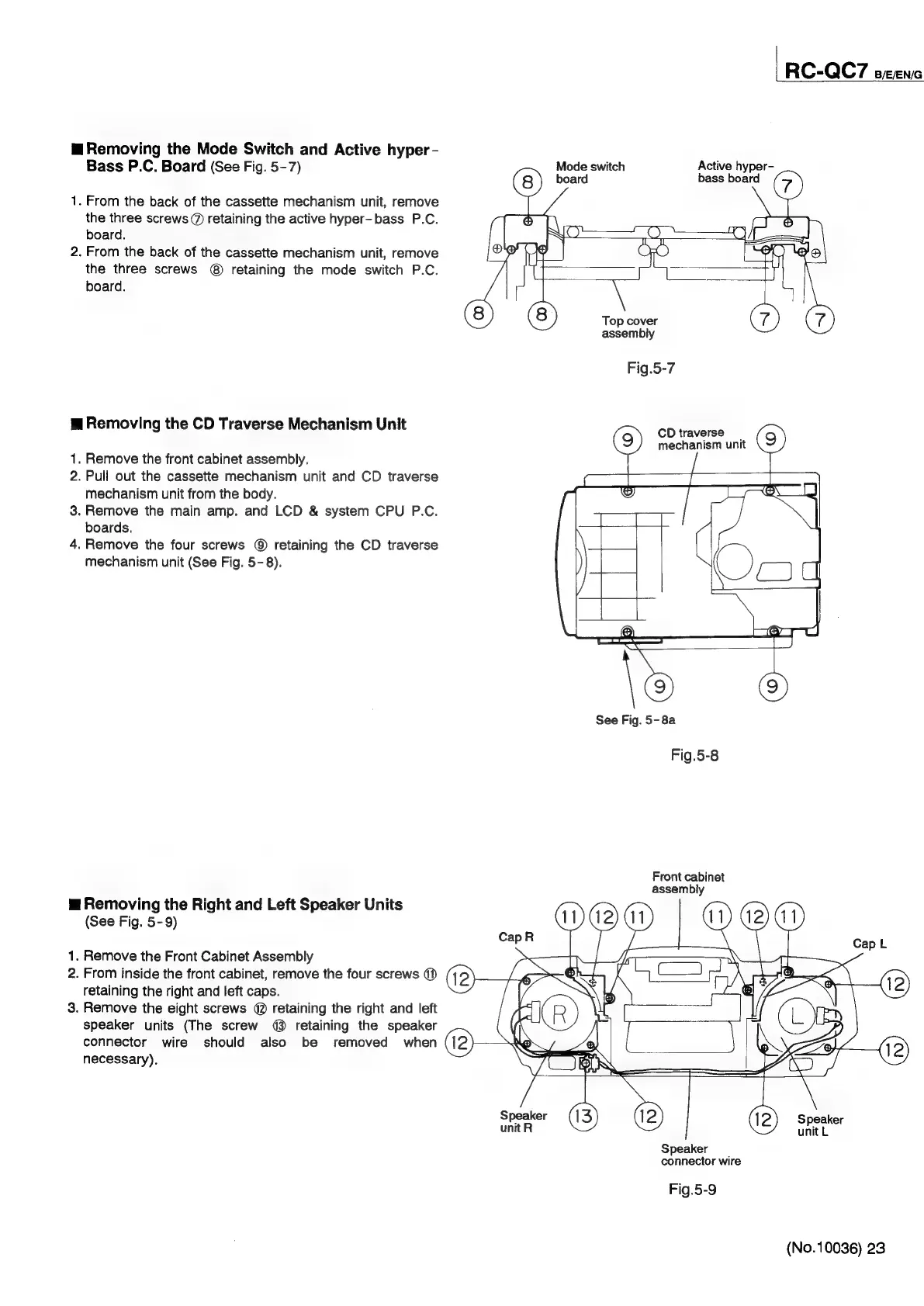

m@ Removing the Mode Switch and Active hyper -
Bass P.C. Board (See Fig. 5-7)
1. From the back of the cassette mechanism unit, remove
the three screws @ retaining the active hyper- bass P.C.
board.
2. From the back of the cassette mechanism unit, remove
the three screws retaining the mode switch P.C.
board.
m Removing the CD Traverse Mechanism Unit
Remove the front cabinet assembly.
. Pull out the cassette mechanism unit and CD traverse
mechanism unit from the body.
Remove the main amp. and LCD & system CPU P.C.
boards.
4. Remove the four screws © retaining the CD traverse
mechanism unit (See Fig. 5-8).
np
ed
m@ Removing the Right and Left Speaker Units
(See Fig. 5-9)
_
. Remove the Front Cabinet Assembly
2. From inside the front cabinet, remove the four screws @
retaining the right and left caps.
3. Remove the eight screws @ retaining the right and left
speaker units (The screw @ retaining the speaker
connector wire should also be removed when
necessary),
(2)
| RC-QC7 seenc
Active hyper-
bass board
Mode switch
@® Top cover
assembly
Fig.5-7
CDtraverse
mechanism unit
See Fig. 5-8a
Fig.5-8
Front cabinet
assembly
au: DOO
a CapL
quark, fea @
gor a Lae
SEN AOD
aa
(@
©
(2)
se
Speaker
connector wire
Fig.5-9
(No.10036) 23
