RC-QC7 seen

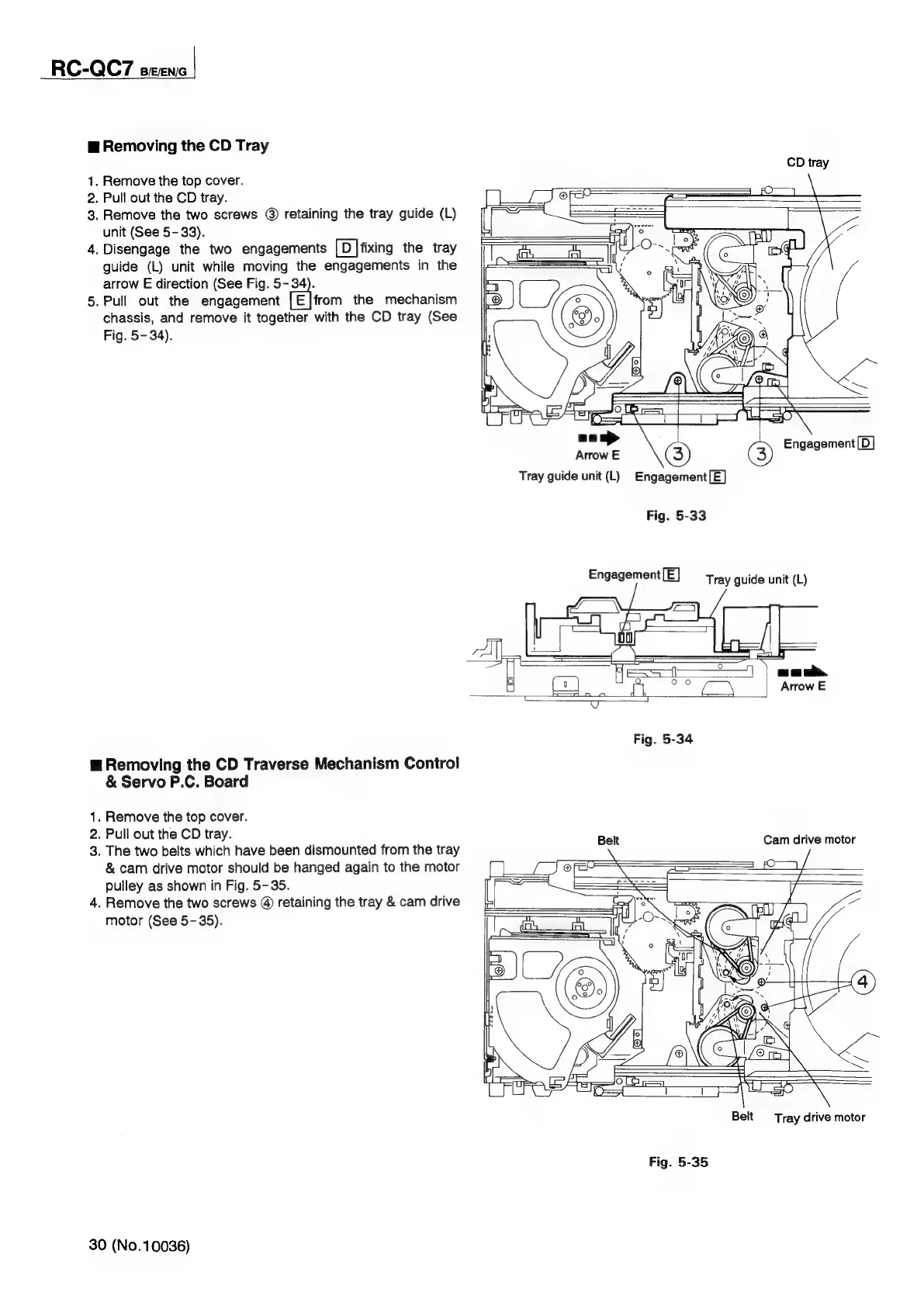

gm Removing the CD Tray
. Remove the top cover.
. Pull out the CD tray.
3. Remove the two screws @) retaining the tray guide (L)
NO ~
unit (See 5-33). “a
4. Disengage the two engagements [D ]fixing the tray
guide (L) unit while moving the engagements in the
arrow E direction (See Fig. 5- 34).
5. Pull out the engagement from the mechanism
chassis, and remove it together with the CD tray (See
Fig. 5-34).
SS
Arrow
E
(3)
3B)
Engagement
[D]
Tray guide unit (L) Engagement[E]
Fig. 5-33
Engagement [E]
Tray guide unit (L)
m Removing the CD Traverse Mechanism Control
& Servo P.C. Board
=
. Remove the top cover.
Pull out the CD tray.
. The two belts which have been dismounted from the tray
& cam drive motor should be hanged again to the motor
pulley as shown in Fig. 5-35.
4. Remove the two screws @ retaining the tray & cam drive
motor (See 5- 35).
oN
Belt Cam drive motor
Fig. 5-35
30 (No.10036)
