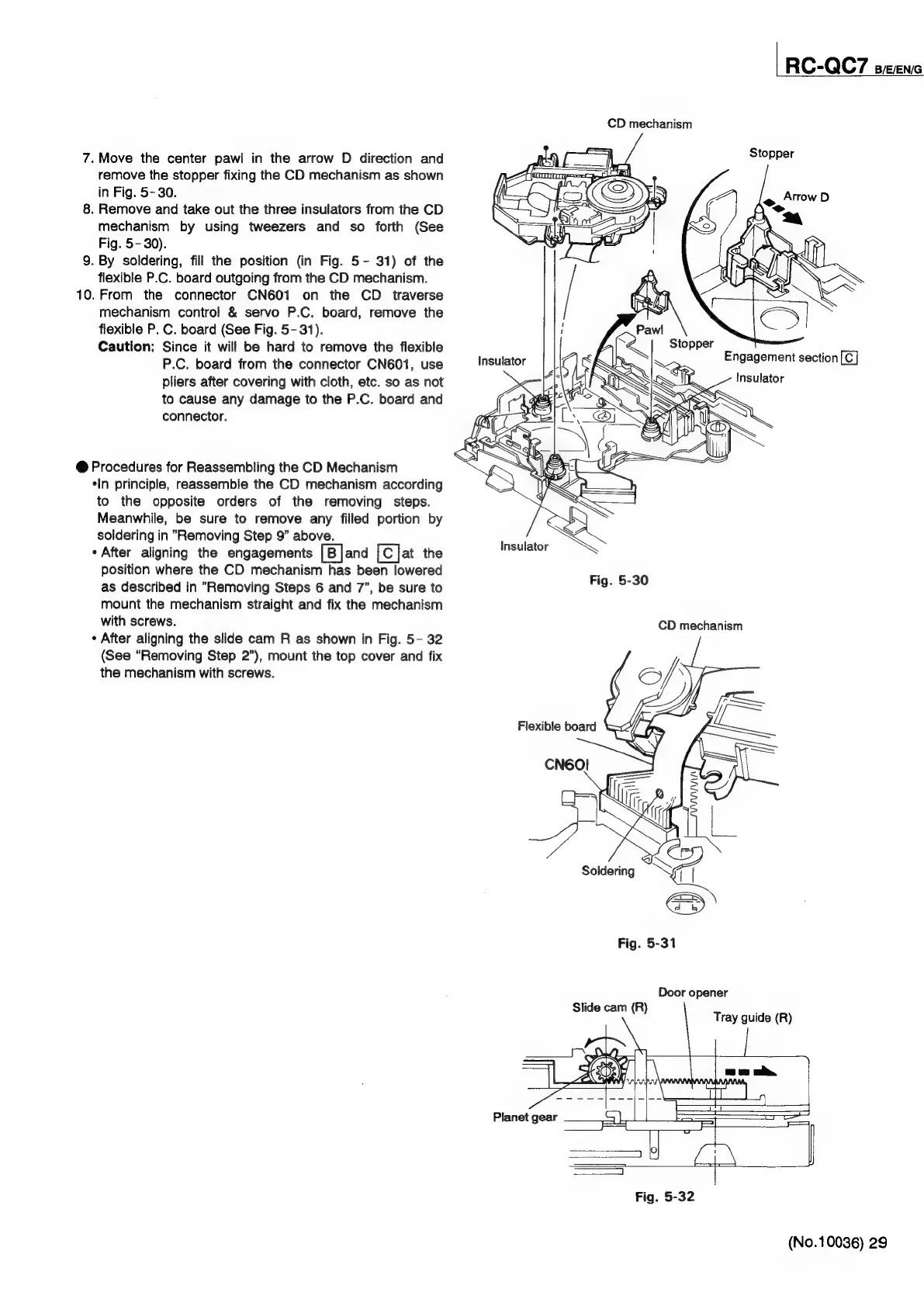

7. Move the center pawl in the arrow D direction and
remove the stopper fixing the CD mechanism as shown
in Fig. 5-30.
8. Remove and take out the three insulators from the CD
mechanism by using tweezers and so forth (See
Fig. 5-30).
9. By soldering, fill the position (in Fig. 5- 31) of the
flexible P.C. board outgoing from the CD mechanism.
10. From the connector CN601 on the CD traverse
mechanism control & servo P.C. board, remove the
flexible P. C. board (See Fig. 5-31).
Caution: Since it will be hard to remove the flexible
P.C. board from the connector CN601, use
pliers after covering with cloth, etc. so as not
to cause any damage to the P.C. board and
connector.
@ Procedures for Reassembling the CD Mechanism
‘In principle, reassemble the CD mechanism according
to the opposite orders of the removing steps.
Meanwhile, be sure to remove any filled portion by
soldering in "Removing Step 9” above.
«After aligning the engagements [B]and [Cat the
position where the CD mechanism has been lowered
as described in "Removing Steps 6 and 7”, be sure to
mount the mechanism straight and fix the mechanism
with screws.
¢ After aligning the slide cam R as shown in Fig. 5- 32
(See “Removing Step 2”), mount the top cover and fix
the mechanism with screws.
Insulator
RC-QC7 sens
CD mechanism
Engagement section
Insulator
<<
Sin SRS,
Ala
=
in
lige
calc S S
SSE]
Sere
Pe
SS
Fig. 5-31
Door opener
Slide cam (R)
Tray guide (R)
(No.10036) 29
