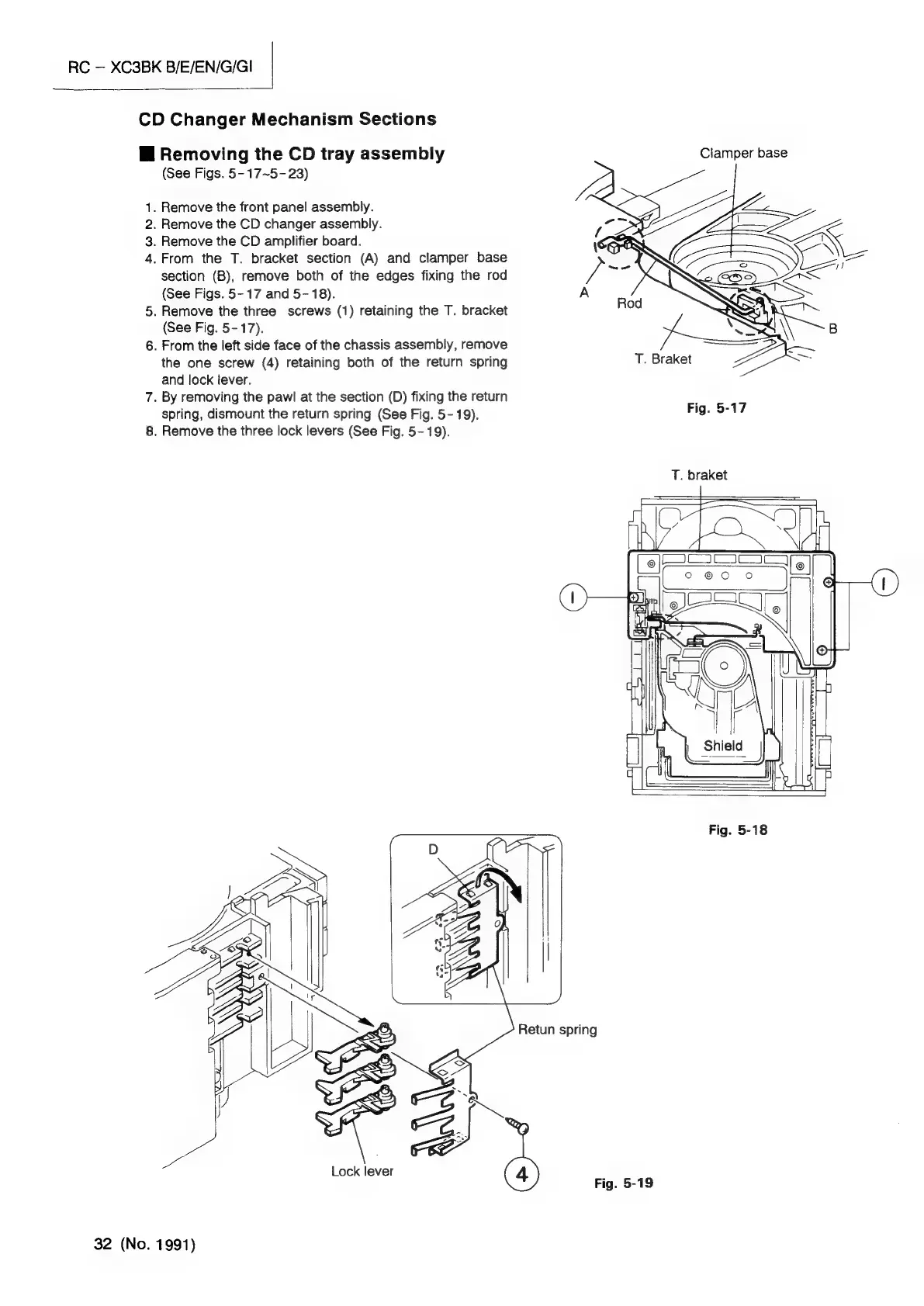

RC
XC3BK
B/E/EN/G/GI
CD
Changer
Mechanism
Sections
Hi
Removing
the
CD
tray
assembly
Clamper
base
(See
Figs.
5-
17~5-
23)
Remove
the
front
panel
assembly.
.
Remove
the
CD
changer
assembly.
.
Remove
the
CD
amplifier
board.
.
From
the
T.
bracket
section
(A)
and
clamper
base
section
(B),
remove
both
of
the
edges
fixing
the
rod
(See
Figs.
5-17
and
5-
18).
5.
Remove
the
three
screws
(1)
retaining
the
T.
bracket
(See
Fig.
5-17).
.
From
the
left
side
face
of
the
chassis
assembly,
remove
the
one
screw
(4)
retaining
both
of
the
return
spring
T.
Braket
and
lock
lever.
7.
By
removing
the
pawl
at
the
section
(D)
fixing
the
return
spring,
dismount
the
return
spring
(See
Fig.
5-
19).
.
Remove
the
three
lock
levers
(See
Fig.
5-19).
fon
=
o
Fig.
5-17
oO
T.
braket
Fig.
5-18
Retun
spring
Lock
lever
Fig.
5-19
32
(No.
1991)
