JVC RC-XC3BK

- _ Ser eer
oe go Oy
se

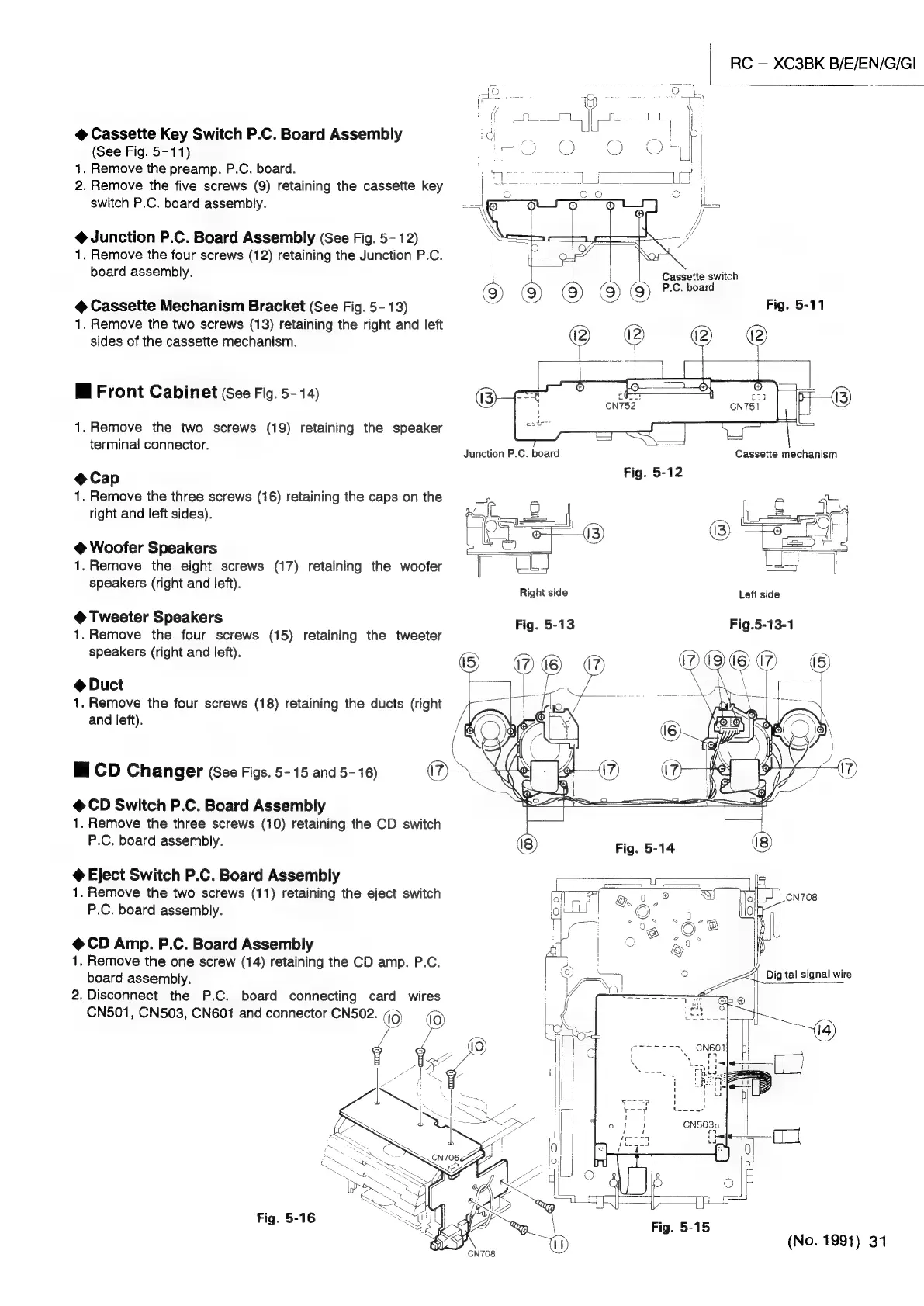

@ Cassette Key Switch P.C. Board Assembly :° rn a a hey eee
(See Fig. 5-11) ee. O Bs xo “Ul |
1. Remove the preamp. P.C. board. Soe ia T if
2. Remove the five screws (9) retaining the cassette key | a es ae 2 = ae
switch P.C. board assembly. = —
@ Junction P.C. Board Assembly (See Fig. 5- 12)
1. Remove the four screws (12) retaining the Junction P.C.
board assembly.
Cassette switch
P.C. board
Cassette Mechanism Bracket (See Fig. 5- 13)
1. Remove the two screws (13) retaining the right and left
sides of the cassette mechanism.
i Front Cabinet (See Fig. 5- 14)
1. Remove the two screws (19) retaining the speaker
terminal connector.
Junction P.C. board Cassette mechanism
Cap
1. Remove the three screws (16) retaining the caps on the
right and left sides).
@ Woofer Speakers
1.Remove the eight screws (17) retaining the woofer
speakers (right and left).
Right side Left side
@
Tweeter
Speakers
Fig.
5-13
Fig.5-13-1
1.Remove
the
four
screws
(15)
retaining
the
tweeter
speakers
(right
and left).
@ Duct
1. Remove the four screws (18) retaining the ducts (right
and left).
Mi CD Changer (See Figs. 5- 15 and 5- 16)
@CD Switch P.C. Board Assembly
1. Remove the three screws (10) retaining the CD switch
P.C. board assembly.
@ Eject Switch P.C. Board Assembly
1. Remove the two screws (11) retaining the eject switch
P.C. board assembly.
@CD Amp. P.C. Board Assembly
1. Remove the one screw (14) retaining the CD amp. P.C.
board assembly.
2. Disconnect the P.C. board connecting card wires
CN501, CN503, CN601 and connector CN502. 1 0
Fig. 5-16
(No. 1991) 31
