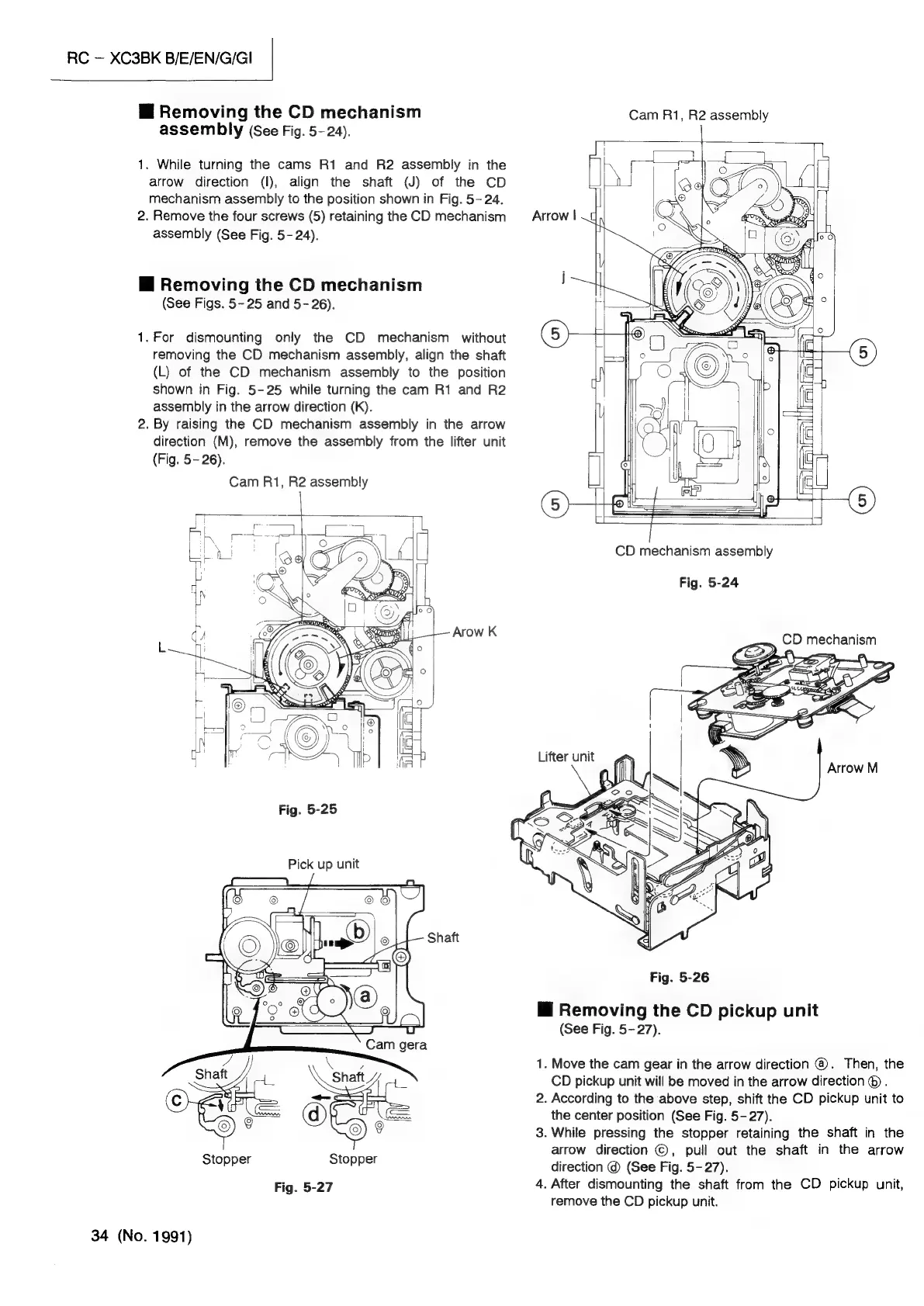

Hi Removing the CD mechanism
assembly (See Fig. 5- 24).
1. While turning the cams R1 and R2 assembly in the
arrow direction (I), align the shaft (J) of the CD
mechanism assembly to the position shown in Fig. 5- 24.
2. Remove the four screws (5) retaining the CD mechanism
assembly (See Fig. 5- 24).
Hi Removing the CD mechanism
(See Figs. 5-25 and 5-26).
=
. For dismounting only the CD mechanism without
removing the CD mechanism assembly, align the shaft
(L) of the CD mechanism assembly to the position
shown in Fig. 5-25 while turning the cam R1 and R2
assembly in the arrow direction (K).
2. By raising the CD mechanism assembly in the arrow
direction (M), remove the assembly from the lifter unit
(Fig. 5-26).
Cam R1, R2 assembly
Stopper Stopper
Fig. 5-27
34 (No. 1991)
Cam R1, R2 assembly
CD mechanism assembly
Fig. 5-24
Arrow M
Fig. 5-26
Mi Removing the CD pickup unit
_
N
(See Fig. 5- 27).
. Move the cam gear in the arrow direction @. Then, the
CD pickup unit will be moved in the arrow direction ©).
According to the above step, shift the CD pickup unit to
the center position (See Fig. 5- 27).
. While pressing the stopper retaining the shaft in the
arrow direction ©, pull out the shaft in the arrow
direction @ (See Fig. 5-27).
. After dismounting the shaft from the CD pickup unit,
remove the CD pickup unit.
