JVC RC-XC3BK

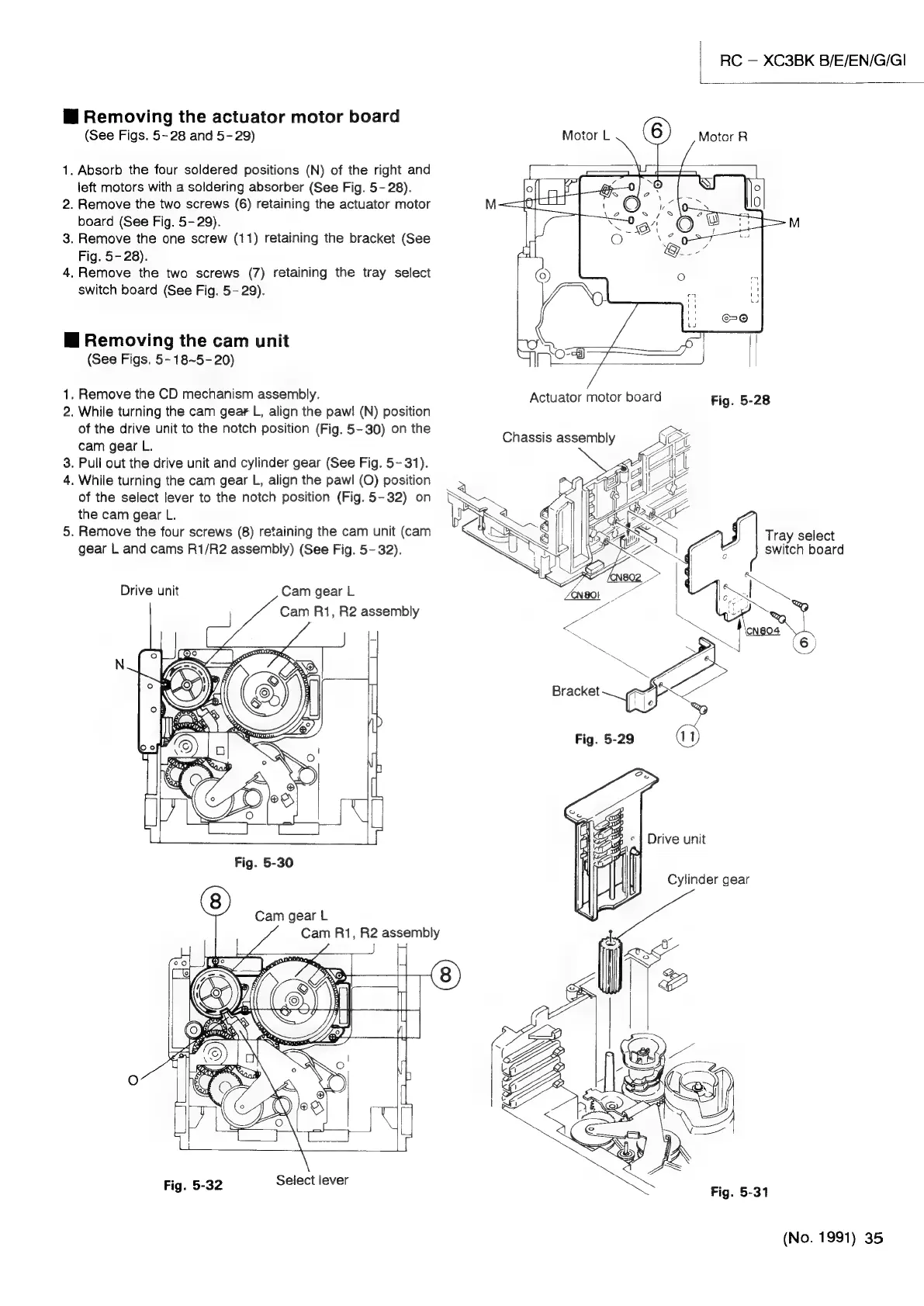

Wi Removing the actuator motor board
4
iw)
sd
=
(See Figs. 5-28 and 5- 29)
. Absorb the four soldered positions (N) of the right and
left motors with a soldering absorber (See Fig. 5- 28).
. Remove the two screws (6) retaining the actuator motor
board (See Fig. 5- 29).
Remove the one screw (11) retaining the bracket (See
Fig. 5- 28).
Remove the two screws (7) retaining the tray select
switch board (See Fig. 5- 29).
i Removing the cam unit
Np —
o
or
(See Figs. 5- 18~5- 20)
. Remove the CD mechanism assembly.
While turning the cam gear L, align the paw! (N) position
of the drive unit to the notch position (Fig. 5-30) on the
cam gear L.
Pull out the drive unit and cylinder gear (See Fig. 5-31).
. While turning the cam gear L, align the pawl (OQ) position
of the select lever to the notch position (Fig. 5-32) on
the cam gear L.
. Remove the four screws (8) retaining the cam unit (cam
gear L and cams R1/R2 assembly) (See Fig. 5- 32).
Drive unit Cam gear L
Cam R1, R2 assembly
Fig. 5-30
Cam gear L
Cam R1, R2 assembly
J
We) °
WS S
(ee) ©
© >
a © : 0
oO {
(CBs
° ®
/ | 9 \
Ll
Fig. 5-32 Select lever
8
| RC — XC3BK B/E/EN/G/GI
Motor L ©
Actuator motor board
Fig. 5-28
Tray select
switch board
Drive unit
Cylinder gear
Fig. 5-31
(No. 1991) 35
