RC — XC3BK B/E/EN/G/GI

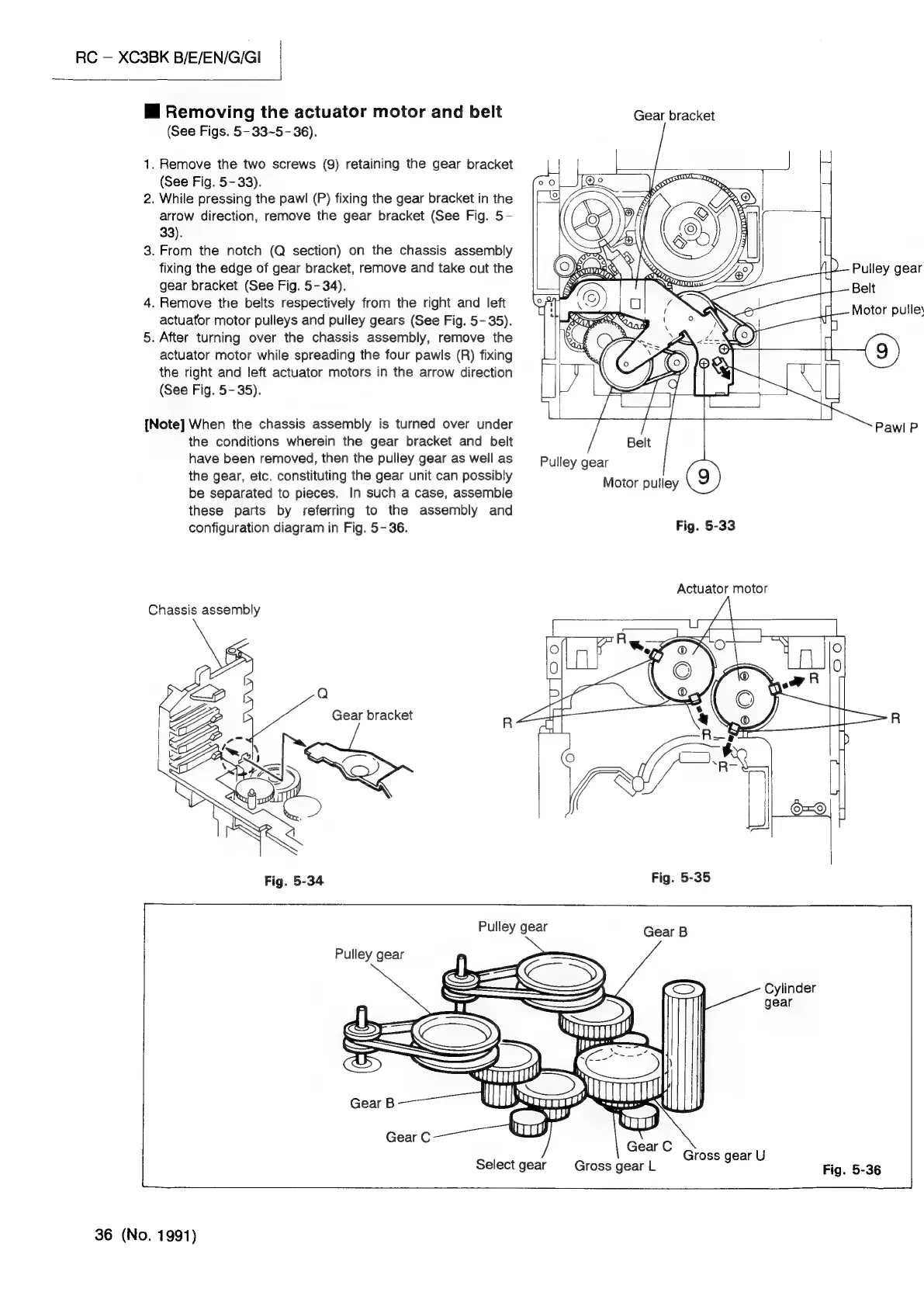

@ Removing the actuator motor and belt
(See Figs. 5- 33~5- 36).
_
. Remove the two screws (9) retaining the gear bracket
(See Fig. 5-33).
2. While pressing the pawl (P) fixing the gear bracket in the
arrow direction, remove the gear bracket (See Fig. 5-
33).
3. From the notch (Q section) on the chassis assembly
fixing the edge of gear bracket, remove and take out the
gear bracket (See Fig. 5- 34).
4. Remove the belts respectively from the right and left
actuator motor pulleys and pulley gears (See Fig. 5-35).
5. After turning over the chassis assembly, remove the
actuator motor while spreading the four pawls (R) fixing
the right and left actuator motors in the arrow direction
(See Fig. 5~- 35).
[Note] When the chassis assembly is turned over under
the conditions wherein the gear bracket and belt
have been removed, then the pulley gear as well as
the gear, etc. constituting the gear unit can possibly
be separated to pieces. In such a case, assemble
these parts by referring to the assembly and
configuration diagram in Fig. 5-36.
Chassis assembly
Gear bracket
Gear bracket
Lp Pulley gear
Belt
Motor pulle\
3)
u
L]
Pawl P
Belt
ey gear
Motor pulley
(9)
Fig. 5-33
Actuator motor
Fig.
5-34
Bie
=
7
Pulley
gear
Gear
B
Pulley
gear
Cylinder
gear
Gross
|
Select
gear
Gross
gear
L
oad
Fig.
5-36
36 (No. 1991)
