Removing
the
cams
R1/R2
assembly
and
cam
gear
L
(See
Fig.
5-37).
_
.
Remove
the
slit
washer
fixing
the
cams
R1
and
R2
assembly.
2.
By
removing
the
two
pawls
(S)
fixing
the
cam
Ri,
separate
R2
from
R1.
3.
Remove
the
slit
washer
fixing
the
cam
gear
L.
4.
Pull
out
the
cam
gear
L
from
the
C.G.
base
assembly.
Hi
Removing
the
C.G.
base
assembly
(See
Figs.
5-37
and
5-
38).
Remove
the
three
screws
(10)
retaining
the
C.G.
base
assembly.
[Cautlon]
To
reassemble
the
cylinder
gear,
etc.
with
the
cam
unit
(cam
gear
and
cams
Ri1/R2
assembly),
gear
unit
and
drive
unit,
align
the
position
of
the
pawl
(N)
on
the
drive
unit
to
that
of
the
notch
on
the
cam
gear
L.
Then,
make
sure
that
the
gear
unit
is
engaged
by
turning
the
cam
gear
L.
Cam
gear
L
Notch
Drive
unit
ie
G
ae
Lo
meer
ae
Gear
bracket

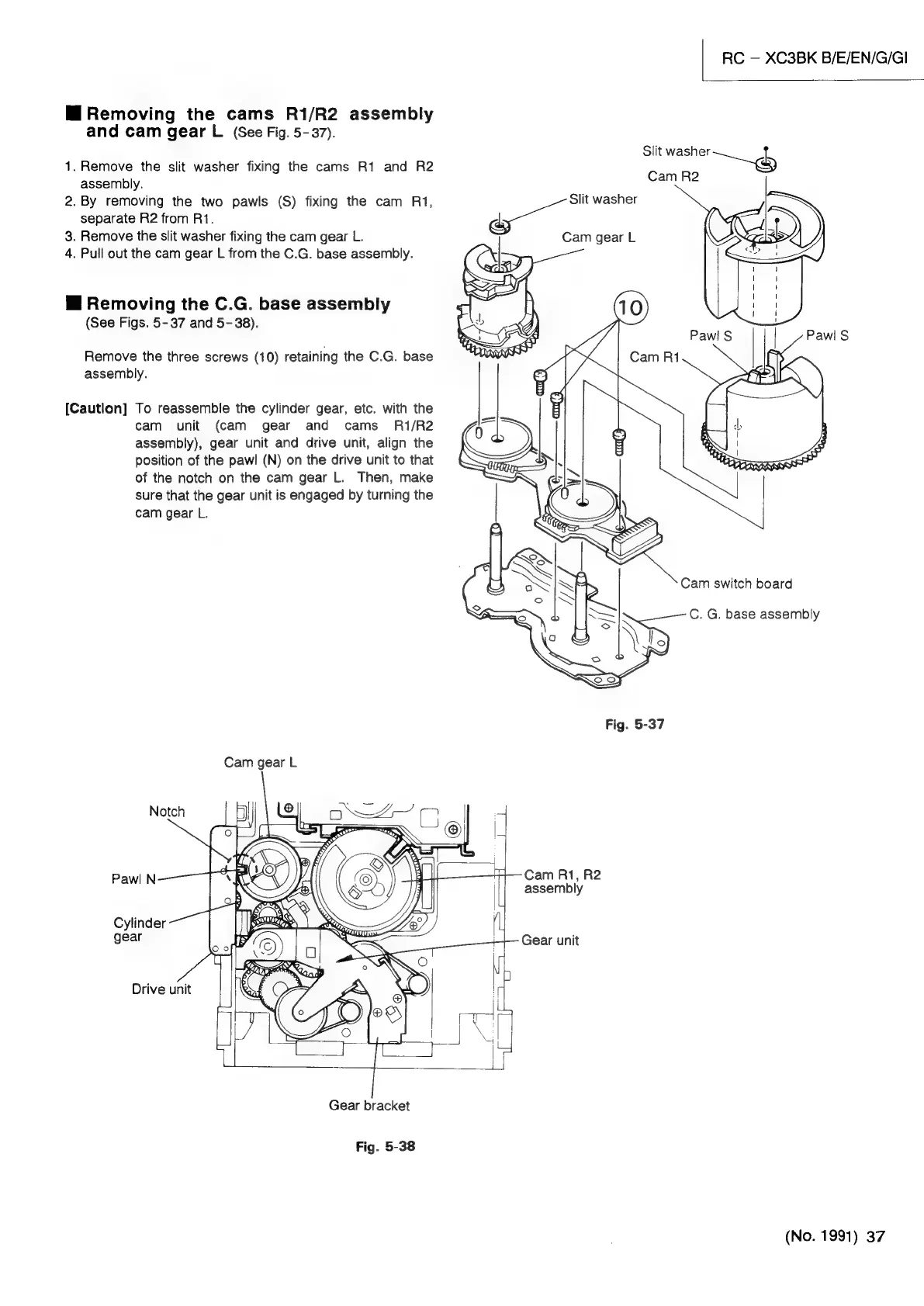

Fig.
5-38
|
RC
XC3BK
B/E/EN/G/GI
Slit
Hees
ah
Cam
R2
ae
Slit
washer
Cam
gear
L
Cam
R1,
R2
assembly
Gear
unit
Cam
switch
board
C.
G.
base
assembly
(No.
1991)
