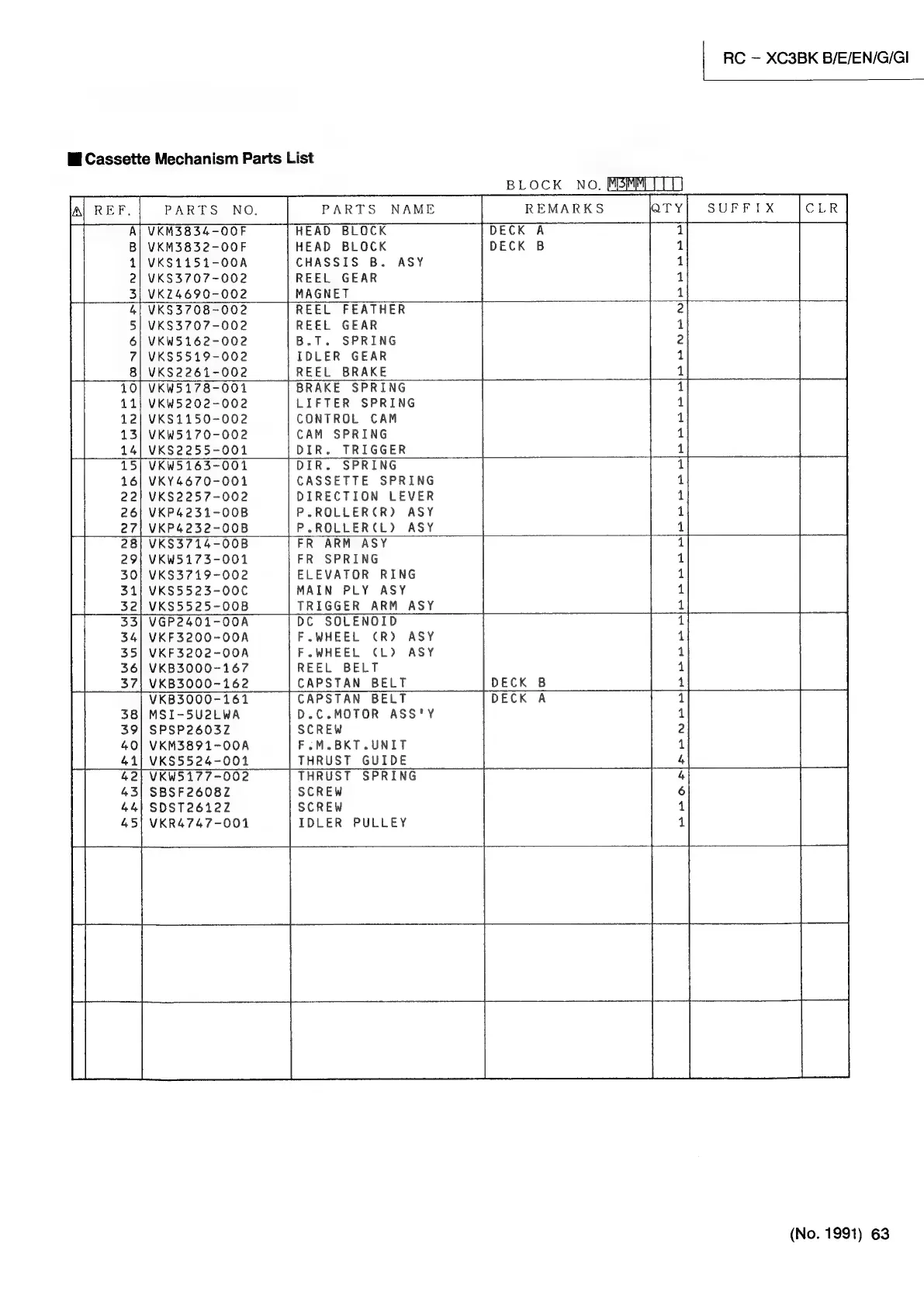

JVC RC-XC3BK

i Cassette Mechanism Parts List
la) REF. | PARTS NO.
VKM3834-O00F
VKM3832-00F
VKS1151-00A
VKS3707-002
VKZ24690-002
PARTS NAME
HEAD BLOCK
HEAD BLOCK
CHASSIS B. ASY
REEL GEAR
MAGNET
VKS3708-002
VKS3707-002
VKW5162-002
VKS5519-002
VKS2261-002
BLOCK NO, MBMM ITU
| RC — XC3BK B/E/EN/G/GI
REEL FEATHER
REEL GEAR
B.T. SPRING
IDLER GEAR
REEL BRAKE
VKW5178-001
VKW5202-002
VKS1150-002
VKW5170-002
VKS2255-001
BRAKE SPRING
LIFTER SPRING
CONTROL CAM
CAM SPRING
DIR. TRIGGER
VKW5163-001
VKY4670-001
VKS2257-002
VKP4231-00B
VKP4232-00B
DIR. SPRING
CASSETTE SPRING
DIRECTION LEVER
P.LROLLERCR) ASY
P.ROLLER(L) ASY
VKS3714-00B
VKW5173-001
VKS3719-002
VKS5523-00C
VKS5525-00B
VGP2401-00A
VKF3200-00A
VKF3202-00A
VKB3000-167
VKB3000-162
VKB3000-161
MSI-5U2LWA
SPSP26032Z
VKM3891-00A
VKS5524-001
VKW5177-002
SBSF2608Z
SDST2612Z
VKR4747-001
FR ARM ASY
FR SPRING
ELEVATOR RING
MAIN PLY ASY
TRIGGER ARM ASY
DC SOLENOID
F.WHEEL (CR) ASY
F.WHEEL (L) ASY
REEL BELT
CAPSTAN BELT
CAPSTAN BELT
D.C.MOTOR ASS'Y
SCREW
F.LM.BKT.UNIT
THRUST GUIDE
THRUST SPRING
SCREW
SCREW
IDLER PULLEY
PPA RR PMP
