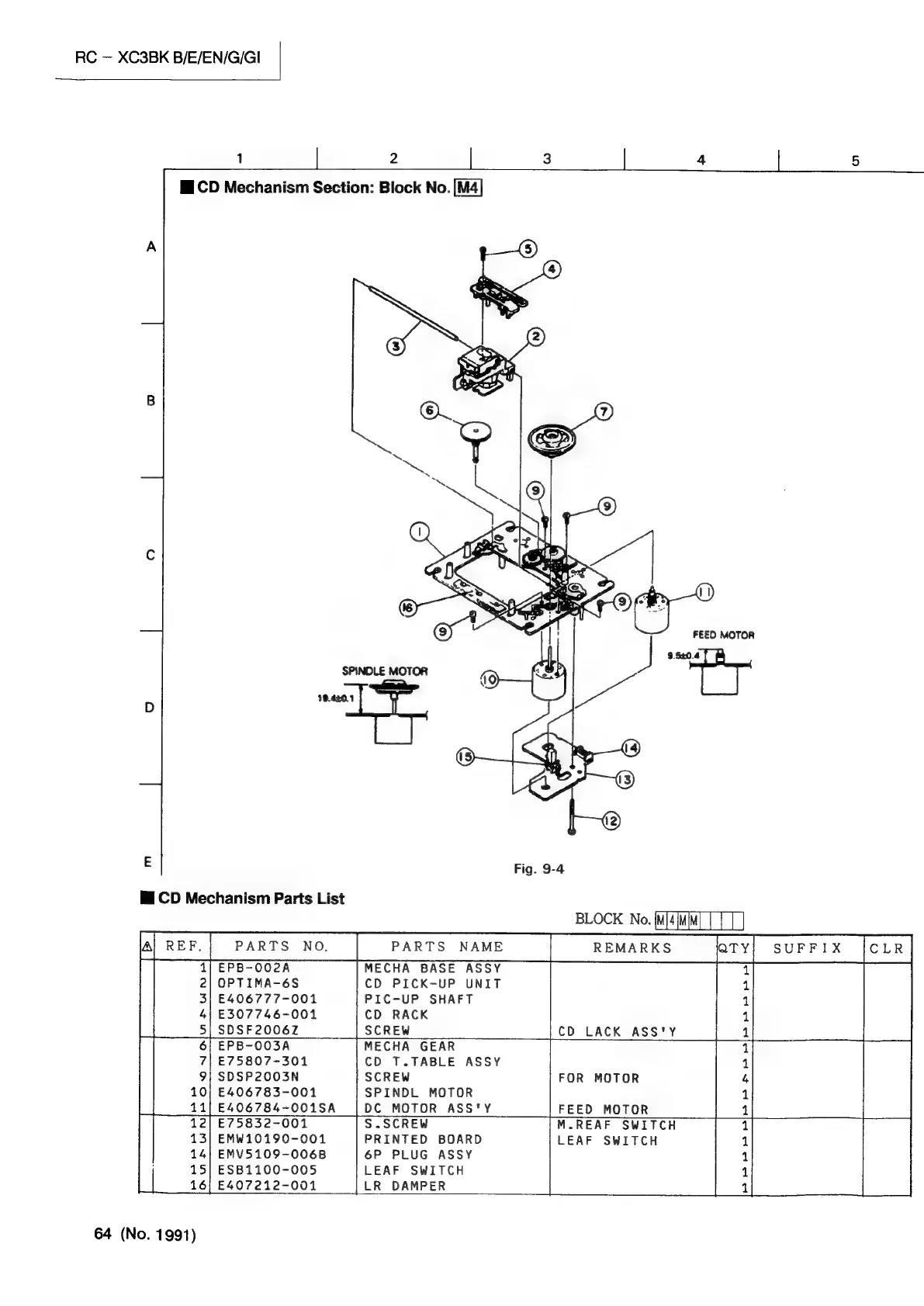

JVC RC-XC3BK - CD Mechanism Section: Block No. M4

RC — XC3BK B/E/EN/G/GI
HCD Mechanism Section:
SPINOLE MOTOR
19.4£0.1
MCD Mechanism Parts List
FEED MOTOR
“EF
la) REF. | PARTS NO. PARTS NAME
EPB-OO02A MECHA BASE ASSY
OPTIMA-6S CD PICK-UP UNIT
E406777-001 PIC-UP SHAFT
E307746-001 CD RACK
SDSF20062 SCREW
CD LACK ASS'Y
EPB-OO3A MECHA GEAR
E75807-301 CD T.TABLE ASSY
SDSP2003N SCREW
E406783-001 SPINDL MOTOR
E406784-001SA DC MOTOR ASS'Y
E75832-001 S.SCREW
EMW10190-001 PRINTED BOARD
EMV5109-006B 6P PLUG ASSY
ESB1100-005 LEAF SWITCH
E407212-001 LR DAMPER
1
2
3
4
5
6
7
9
64 (No. 1991)
FOR MOTOR
FEED MOTOR
M.REAF SWITCH
LEAF SWITCH
