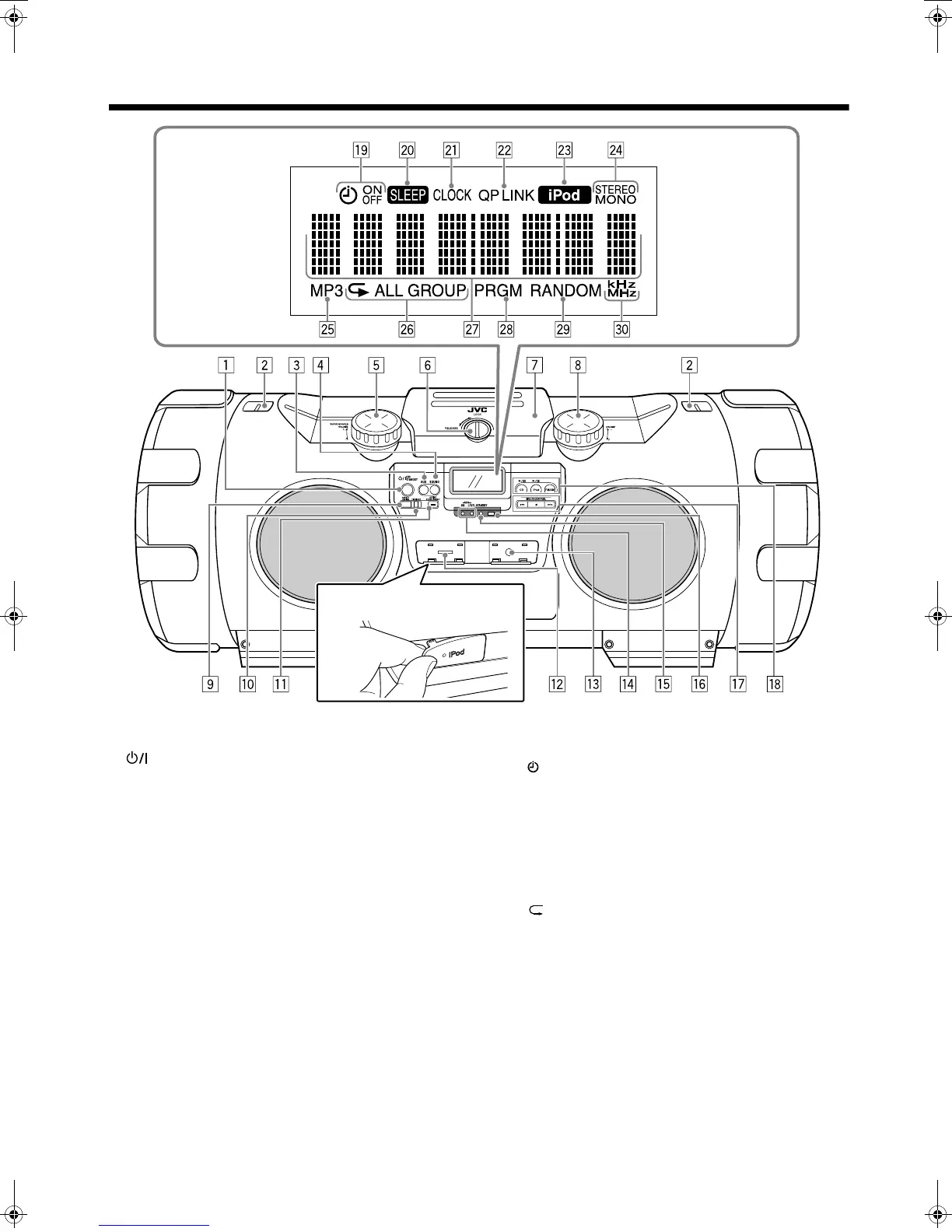

Index of parts and controls
See pages in parentheses for details.
1 ON/STANDBY button (7)
2 Shoulder strap hooks (4)
3 AUX button (3, 14)
• Pressing this button also turns on the system.
4 SOUND button (8)
5 SUPER WOOFER VOLUME +/– control knob (8)
6 LOCK/RELEASE knob (10)
7 Disc compartment door (10)
8 VOLUME +/– control knob (7)
9 PRESET TUNING button (9)
p FM MODE button (9)
q ACTIVE CLEAR SOUND button (8)
w iPod jack (6)
e AUX jack (6)
r ACS (Active Clear Sound) indicators (8)
• ON, LEVEL
t STANDBY lamp (7)
y Remote sensor (4)
u MULTI CONTROL buttons (9 – 13)
• 4 (reverse skip), 7, x (forward skip)
i Source and play mode buttons (3, 9 – 13)
•CD 6, iPod 6, FM/AM
Pressing one of these buttons also turns on the system.
Display window
o Timer indicators (16)
• (timer), ON, OFF
; SLEEP indicator (15)
a CLOCK indicator (8, 15)
s QP LINK indicator (14)
d iPod indicator (13)
f FM mode indicators (9)
• STEREO, MONO
g MP3 indicator (11)
h Repeat indicators (12)
• , ALL, GROUP
j Main display
k PRGM (program) indicator (12)
l RANDOM indicator (12)
/ Frequency unit indicators (8, 9)
•kHz, MHz
Display window
How to open the cover
