RX-SO8VBK
RX-5O09VTN
Before
Starting
Page
8
1-10
(No.
20376)

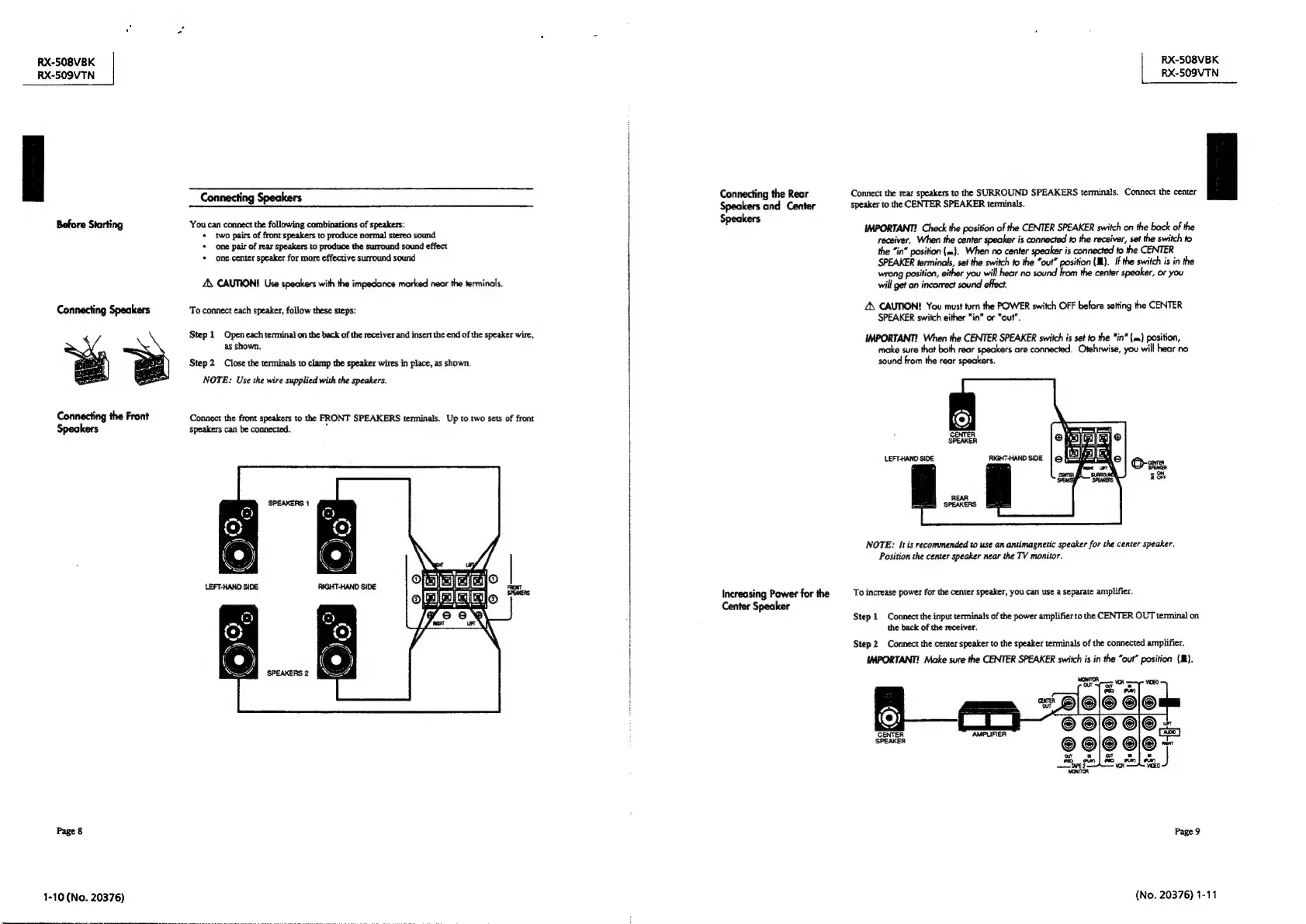

Connecting
Speakers
You
can
connect
the
following
combinations
of
speakers:
¢
two
pairs
of
front
speakers
to
produce
normal
stereo
sound
*
one
pair
of
rear
speakers
to
produce
the
surround
sound
effect
*
one
center
speaker
for
more
effective
surround
sound
A
CAUTION!
Use
speakers
with
the
impedance
marked
near
the
terminals.
To
connect
each
speaker,
follow
these
steps:
Step
1
Open
each
terminal
on
the
back
of
the
receiver
and
insert
the
end
of
the
speaker
wire,
as
shown.
Step
2
Close
the
terminals
to
clamp
the
speaker
wires
in
place,
as
shown.
NOTE:
Use
the
wire
supplied
with
the
speakers.
Connect
the
front
speakers
to
the
FRONT
SPEAKERS
terminals.
Up
to
two
sets
of
front
Speakers
can
be
connected.
ene
ee
ct
nent
tener
ner
eran
tense
anya
inane
Connecting
the
Rear
Speokers
and
Center
speaker
to
the
CENTER
SPEAKER
terminals.
Speakers
RX-SO8VBK
RX-509VTN
Connect
the
rear
speakers
to
the
SURROUND
SPEAKERS
terminals.
Connect
the
center
IMPORTANT!
Check
the
position
of
the
CENTER
SPEAKER
switch
on
the
back
of
the
receiver.
When
the
center
speaker
is
connected
fo
the
receiver,
set
the
switch
to
the
“in”
position
(m).
When
no
center
speaker
is
connected
to
the
CENTER
SPEAKER
terminals,
set
the
switch
to
the
“out”
position
(Ml).
If
the
switch
is
in
the
wrong
position,
either
you
will
hear
no
sound
from
the
center
speaker,
or
you
will
get
an
incorrect
sound
effect.
AX
CAUTION!
You
must
turn
the
POWER
switch
OFF
before
setting
the
CENTER
SPEAKER
switch
either
"in"
or
"out".
IMPORTANT!
When
the
CENTER
SPEAKER
switch
is
set
to
the
"in"
(m)
position,
make
sure
that
both
rear
speakers
are
connected.
Otehrwise,
you
will
hear
no
sound
from
the
rear
speakers.
NOTE:
It
is
recommended
to
use
an
antimagnetic
speaker
for
the
center
speaker.
Position
the
center
speaker
near
the
TV
monitor.
Increasing
Power
for
the
To
increase
power
for
the
center
speaker,
you
can
use
a
separate
amplifier.
Center
Speaker
Step
1
Connect
the
input
terminals
of
the
power
amplifier
to
the
CENTER
OUT
terminal
on
the
back
of
the
receiver.
Step
2
Connect
the
center
speaker
to
the
speaker
terminals
of
the
connected
amplifier.
IMPORTANT!
Make
sure
the
CENTER
SPEAKER
switch
is
in
the
“out”
position
(Ml).
CENTER
SPEAKER
Page
9
(No.
20376)
1-11
