6
English

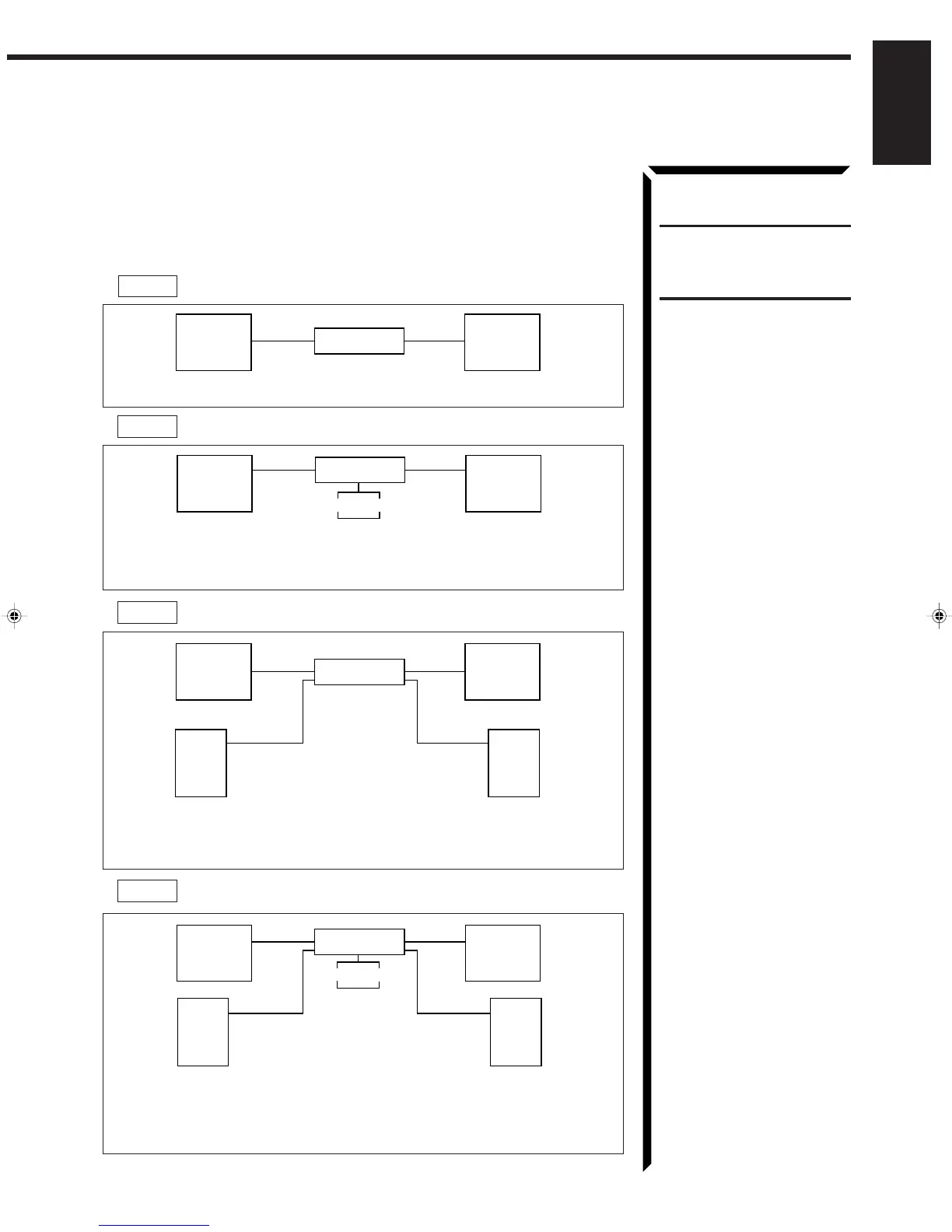

About the speaker impedance
The required speaker impedance of the front speakers differs depending on whether or
not a center and/or rear speakers are connected at the same time. Since there are four
possible speaker connections with the receiver, check which one fits your case and use
the speaker with the impedance described below.
CAUTION:
When connecting speakers, use
speakers with the SAME
IMPEDANCE indicated by the
speaker terminals.
CASE 2 When you connect front speakers and a center speaker
Use the following speakers;
• Front speakers: 8 — 16 ohm impedance
• Center speaker: 8 — 16 ohm impedance
CASE 1 When you connect only front speakers
Use front speakers with 4 — 16 ohm impedance.
Front
speaker
Front
speaker
Receiver
Front
speaker
Front
speaker
Center speaker
Receiver
CASE 3 When you connect front and rear speakers
Use the following speakers;
• Front speakers: 8 — 16 ohm impedance
• Rear speakers: 8 — 16 ohm impedance
Front
speaker
Receiver
Front
speaker
Rear
speaker
Rear
speaker
CASE 4 When you connect a center speaker as well as front and rear speakers
Use the following speakers;
• Front speakers: 8 — 16 ohm impedance
• Rear speakers: 8 — 16 ohm impedance
• Center speaker: 8 — 16 ohm impedance
Front
speaker
Front
speaker
Receiver
Center speaker
Rear
speaker
Rear
speaker
RX-554RBK(EE)_0118-001A_En01-23 98.1.30, 2:19 PM6
