RX-6000VBK/RX-6008VBK/RX-6100VBK
Prior to performing the following procedures, remove
the top cover.
Unsolder each harness connected to the power
transformer respectively.
Remove the four screws L attaching the power
transformer.
Removing the power transformer
(See Fig.14)
Prior to performing the following procedure, remove
the top cover and the front panel.
Remove the two screws M attaching the speaker
switch board on the front side of the body.
Remove the one nut attaching the headphone board
on the front side of the body.
Pull out the speaker switch board and the
headphone board backward.
Unsolder each soldered part.
1.
2.
3.
4.
Removing the speaker switch board/ the
headphone board (See Fig.15 and 16)
1.
2.

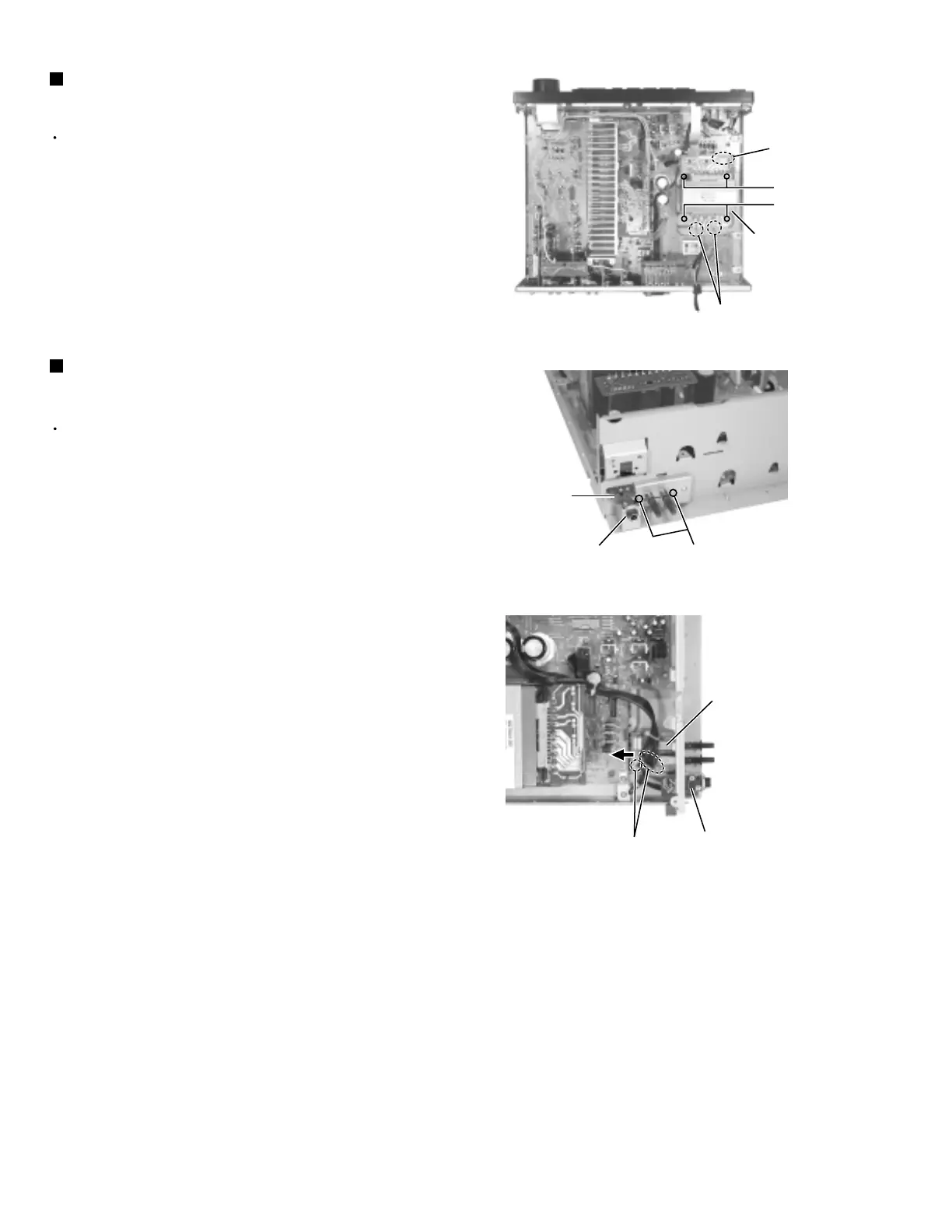

Fig.14
Fig.15
Fig.16
Soldered
part
L
L
Soldered part
Headphone board
Nut
M
Headphone board
Speaker switch
board
Power
transformer
Soldered part
To Next Page
