1-6 (No.MB105)
3.1.3 Removing the rear panel
(See Fig.5)
• Prior to perform the following procedure, remove the top cover.
(1) From the back side of the main body, remove strain relief
from the rear panel in the direction of the arrow.
(2) Remove the twenty-four screws E attaching the rear panel.

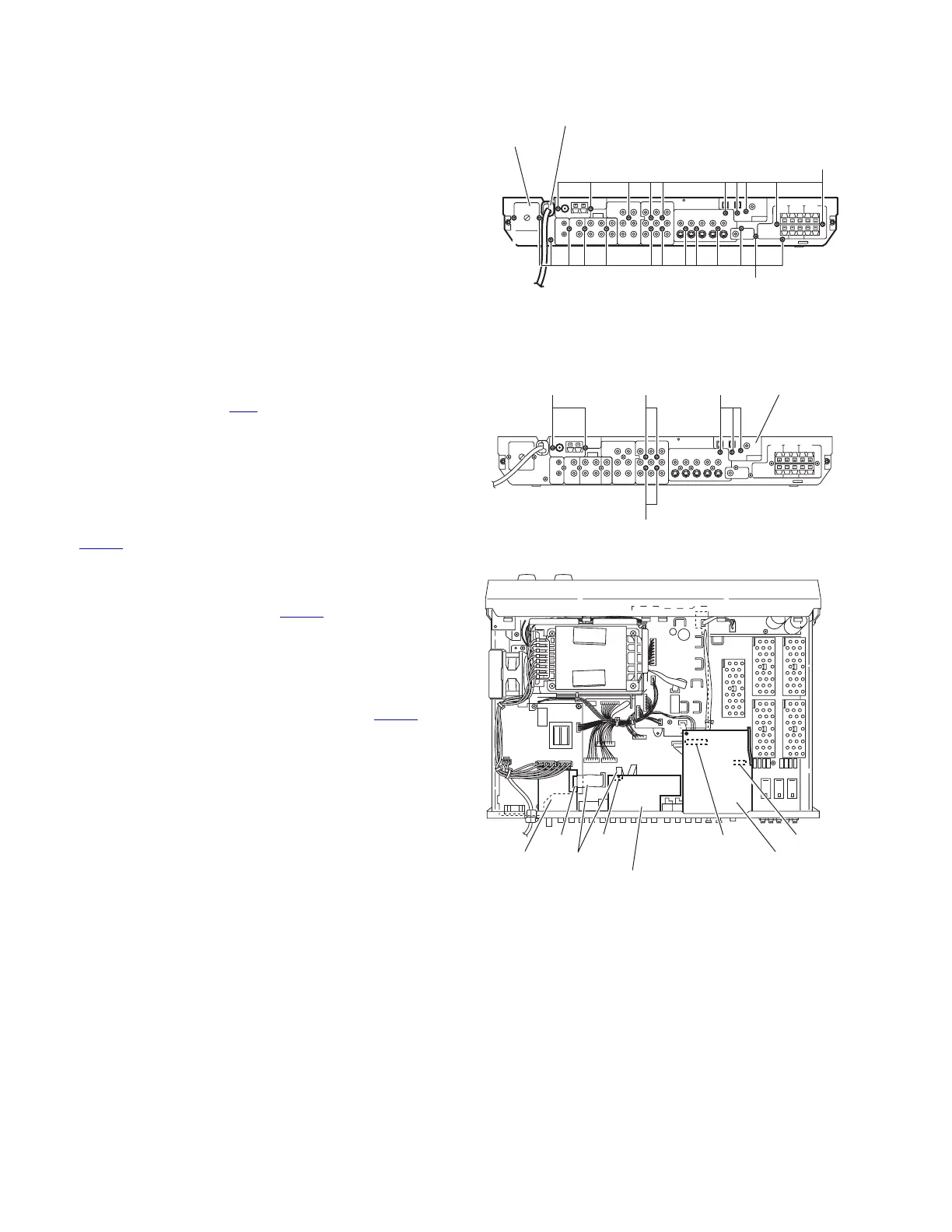

Fig.5
3.1.4 Removing the tuner
(See Figs.6 and 7)
• Prior to perform the following procedure, remove the top cover.
(1) From the top side of the main body, disconnect the card
wire from the connector CN1
on the tuner. (See Fig.7)
(2) From the back side of the main body, remove the two
screws F attaching the tuner.(See Fig.6)
3.1.5 Removing the digital input board
(See Figs.6 and 7)
• Prior to perform the following procedure, remove the top cover.
(1) From the top side of the main body, remove the connector
CN521
on the digital input board upward. (See Fig.7)
(2) From the back side of the main body, remove the three
screws G attaching the digital input board. (See Fig.6)
(3) From the reverse side of the digital input board, disconnect
the card wire from the connector CN522
on the digital input
board. (See Fig.7)
3.1.6 Removing the digital output board
(See Figs.6 and 7)
• Prior to perform the following procedure, remove the top cover.
(1) Disconnect the card wires from the connector CN561
on
the digital output board.(See Fig.7)
(2) From the back side of the main body, remove the four
screws H attaching the digital output board. (See Fig.6)
Fig.6
Fig.7
E
E
Rear panel
Strain relief
F
Rear panel
H
H G
Card wireTuner
CN1
Digital input board
CN522
CN521
Digital output board
CN561
